6、COOLING SYSTEM COMPONENT 41
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251112-001093
（
2 1051654-002000 Seal gasketφ6×13×1.8 1
PROCEDURE:
●Drain the cooling liquid
Open the sub cooling liquid tank cover. Put a holder under it. Wear waterproof gloves and disassemble bolt (1)
with socket sleeve. Take off seal gasket (2). Cooling liquid starts draining,when the cooling liquid in sub cooling
liquid tank is all out, open the right cooling liquid tank cover to accelerate the draining of cooling liquid in the
cooling system.
Wipe out all of the cooling liquid on surface every component with a clean cloth.
CAUTION:
●Motorcycle should be well supported.
●Manipulation should start after the engine is completely cooled down.
●Cooling liquid is toxic. Avoid strictly eye or skin contact. More details in "Attention" of previous page.

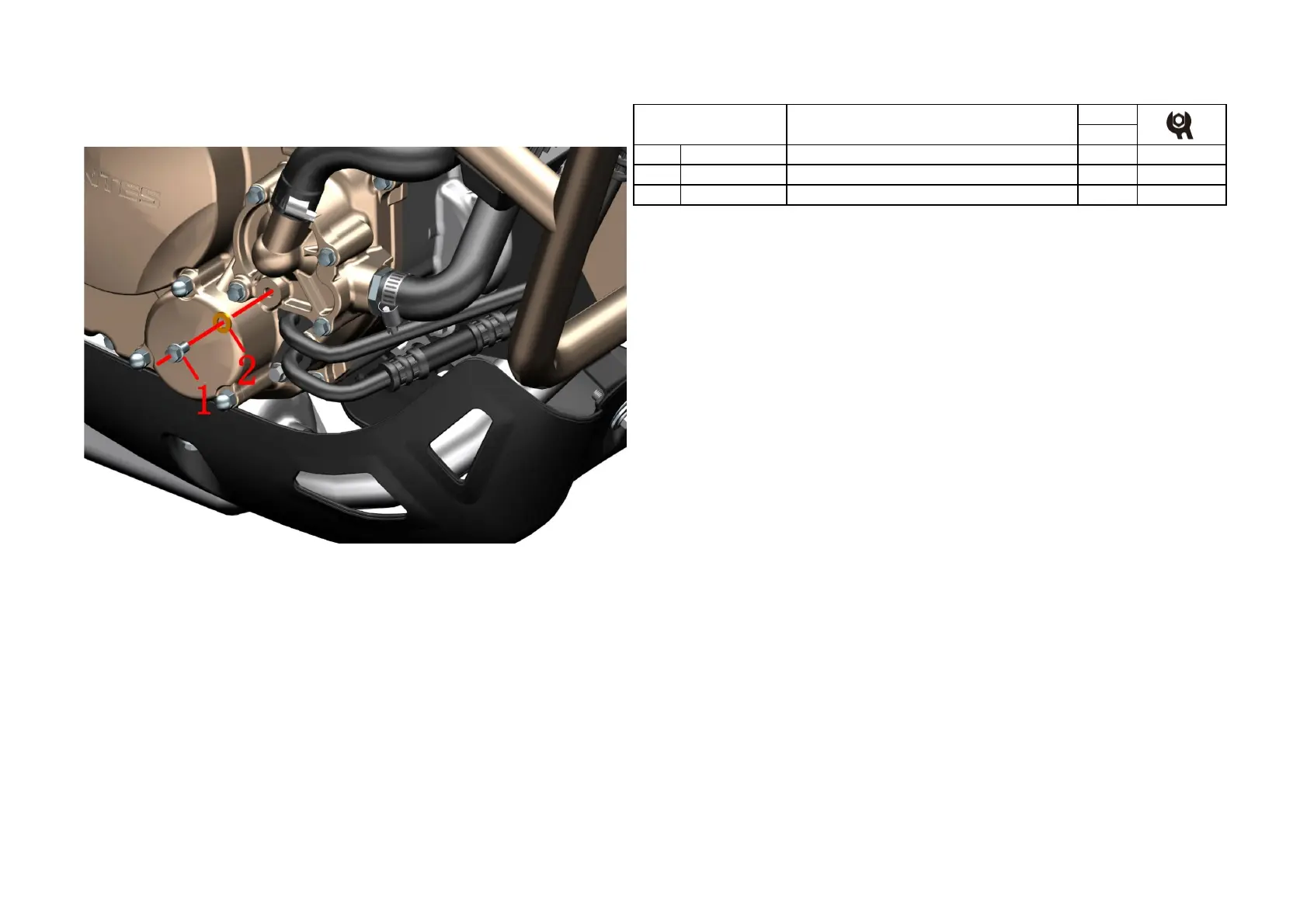

Fig.5 COOLING SYSTEM
COMPONENT
Draining cooling liquid
To Next Page
