7、FRONT FORK COMPONENT 57
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 4
2 1224100-010000 ZT250-S expansion nail 3

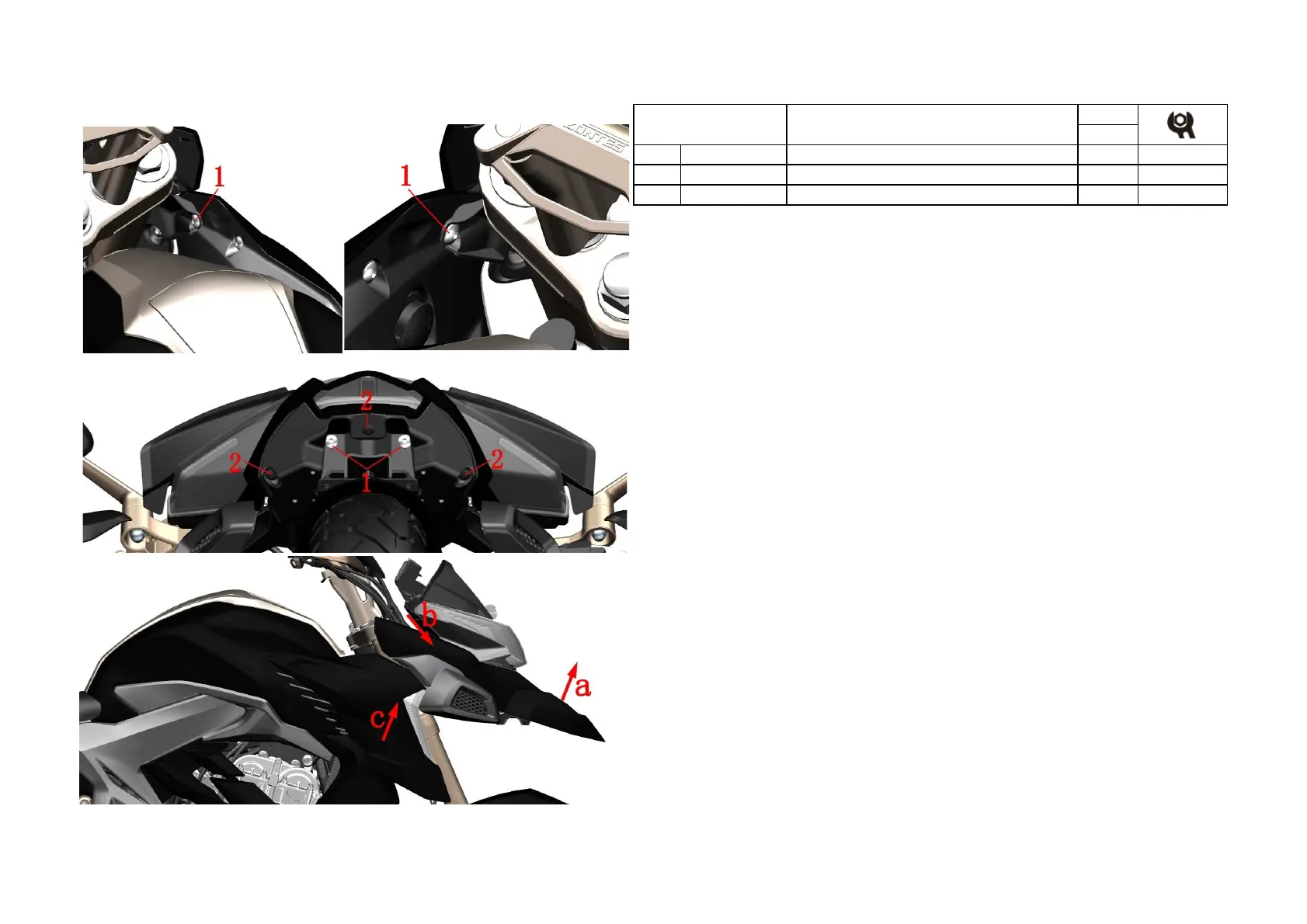

Fig. 14 FRONT FORK
COMPONENT
Front fender upper component 1
PROCEDURE:
●Front fender upper component
Remove two bolts (1) at the joint between the front mud plate and the rear cover of the fuel tank trim cover.
Remove three expansion screws (2) on the back of the front mud plate and remove the 2 bolts (1).
After pulling the fuel tank trim cover on both sides of c to the outside car, pull out the staples at b; finally,
remove the front fender plate assembly from the upper side.
CAUTION:
●The vehicle support should be fixed during the disassembly process to prevent accidents caused by dumping.
●
When disassembling, pay attention to the direction and strength of force to prevent damage or scratching of the
material.
