10、REAR COVER COMPONENT 96
CHK
ADH
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 4
2 1251513-001019 6.3 x 12 x 1.6 copper gasket 3
3 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 2
4 1224200-040000 ZT310 Electrical device box cover 1
5 1244200-047000 ZT310-X Electric device box back glue 1

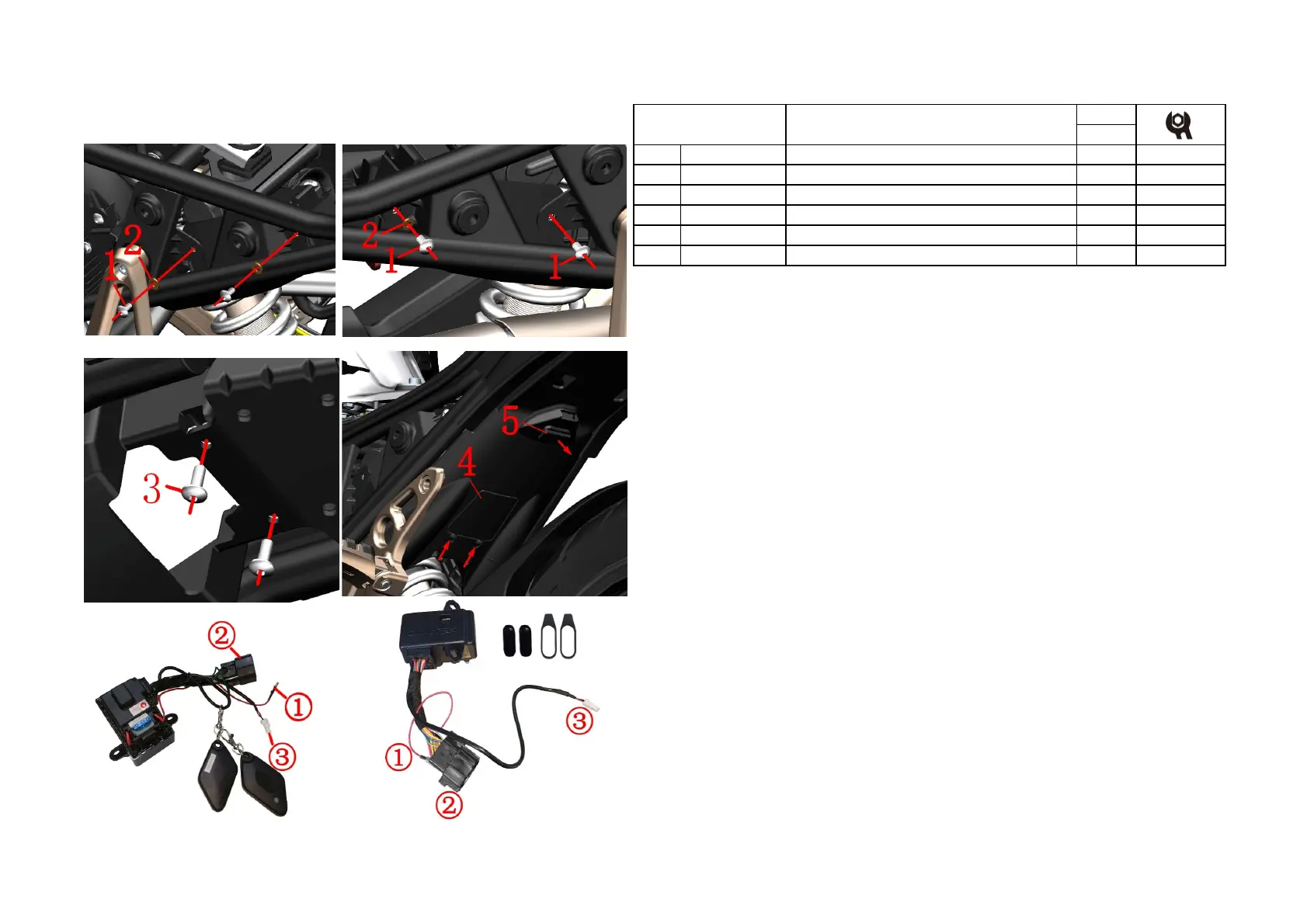

Fig. 10 REAR COVER
COMPONENT
Electrical device box component 1
PROCEDURE:
●Electrical device box component
Remove the bolts(1) on the left side of the front of the electrical component box Remove the two gaskets (2).
Remove the bolts(1) on the right side of the front of the electrical component box and remove gasket(2).
Remove the bolts (3) on the bottom of the rear frame of the frame.
Push the card in the direction of the arrow to snap the lower cover (3).
Pull down the electrical device box backing (5) in the direction of the arrow.
Find and remove the connector ③ of the PKE antenna.
Hold the electric device box component in one hand and grasp the front part downwards with one hand. Unplug
the PKE cable connectors① and ② and remove the electrical device box component.
CAUTION:
●Do not pull the cable directly when unplugging it.
●If you need to replace the PKE fuse, you can replace it by directly removing the lower cover of the electrical
device box.
●For PKE antenna disassembling, see "Fuel Tank Cover component 2" and "End cover Interior Trim
component" above.
●When refitting connector ②, check whether the metal contacts inside are bent. If necessary, straighten them
first.
●The number of copper gaskets (2). for some vehicles produced in the early stage sats is 8 pcs, and the
production is now 3 pcs.
