13、LOWER SHROUD COMPONET 106
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 1
2 1251100-061093 M6×22 Hex flang bolt thread level 8.8 (color zinc) 2
3 1250502-010093
（
）
4 1251112-005093 M6×75 Hex flange bolts (color zinc) 1 12±1.5N.m
5 1274200-065000 ZT310-R Lower shroud left bracket 1
6 1274200-066000 ZT310-R Lower shroud right bracket 1
7 1251112-003093 M6×45 Hex flange surface 9.8 bolts (color zinc) 1 12±1.5N.m

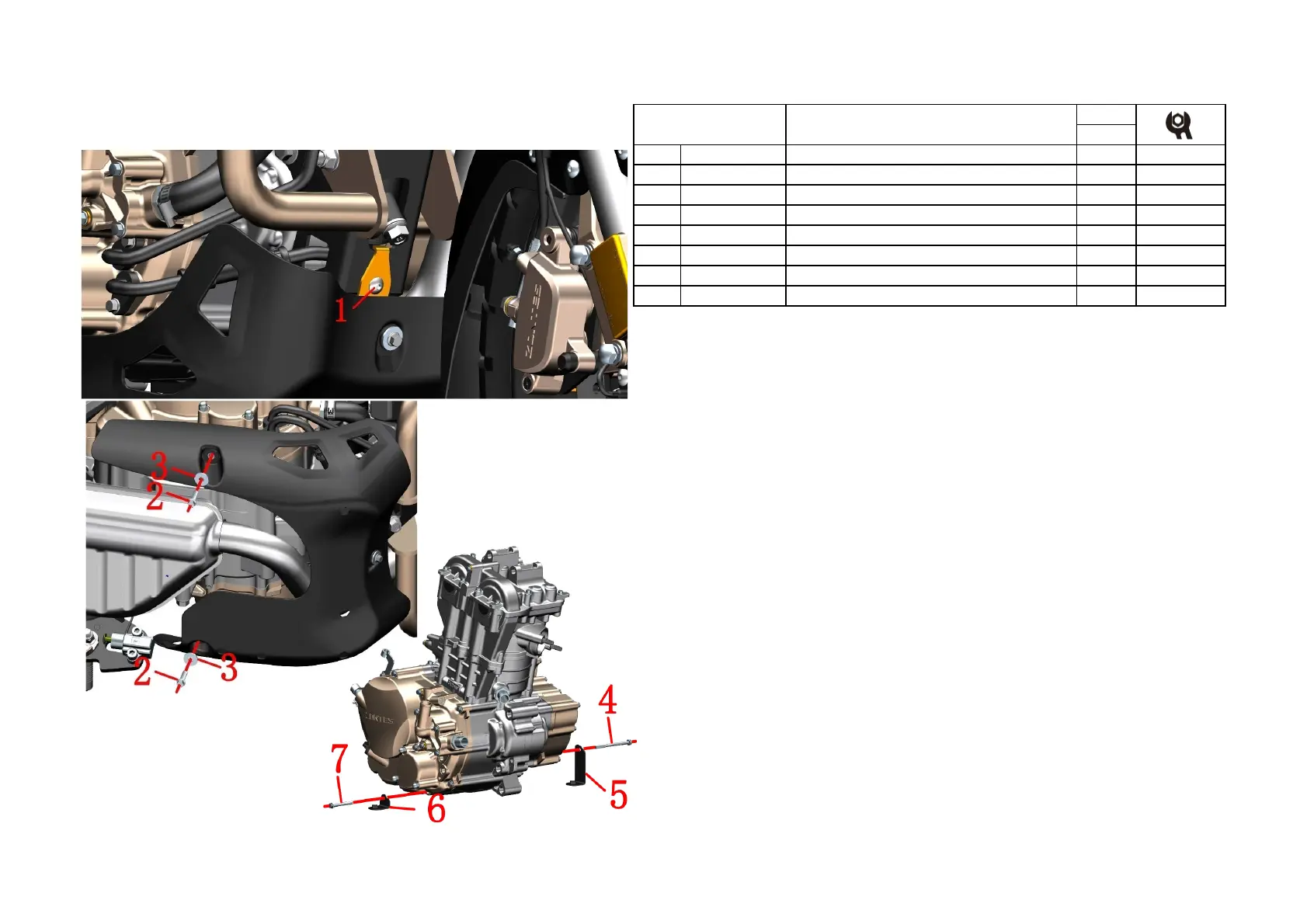

Fig.1 LOWER SHROUD
COMPONENT
Lower shroud component 1
PROCEDURE:
●Lower shroud component
Raise the platform of the motorcycle,remove the bolt (1).
support the lower shroud assembly with one hand,Remove the bolts(2) at the both sides of the lower shroud and
flange bushing.Then put away the lower shroud component.
●Lower shroud bracket
Remove the bolt (4) with the sleeve and remove the left shroud bracket (5).
Remove the bolt (7) with the sleeve and remove the right shroud bracket (6).
CAUTION:
●The motorcycle support should be fixed during disassembly to prevent accidents caused by incline.
●The shroud should be supported during disassembly to prevent fracture due to uneven force.
●The bolts (4) and (7) must meet the standard torque and must be coated with a thread tightening glue.
