5、FOOT PEDAL COMPONENT 31
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1
GB70.1 Inner hexagon M8×30 (environmental color
1
2
GB70.1 Inner hexagon M8×35 (environmental color
3
3
1274100-068095 ZT310 Muffler flanged bushing
2
4
1224100-010000 ZT250-S Expansion nail
1
5
1244100-064000 ZT310 Muffler buffer rubber
1
PROCEDURE:
●Right footrest assembly
Use the pliers to straighten the split pin ① and remove it, then remove the spacer ② and the pin ③.
Fix the rear of the muffler and then remove the bolts (2) at the rear of the footrest and remove the bushing (3).
Remove the front bolts (1), (2).
Turn to the back and remove the bushing (3) and cushion rubber (5). Remove the expansion screw (4).
CAUTION:
●When flipping to the back, the footrest and nearby parts should be protected from scratching the surface.
●Pay attention to the force when turning over to prevent damage to the disc brake tubing.
●The vehicle support should be fixed during the disassembly process to prevent accidents caused by dumping.
●The rear disc brake oil cup cannot be lower than the oil pipe joint on the rear disc brake main pump.

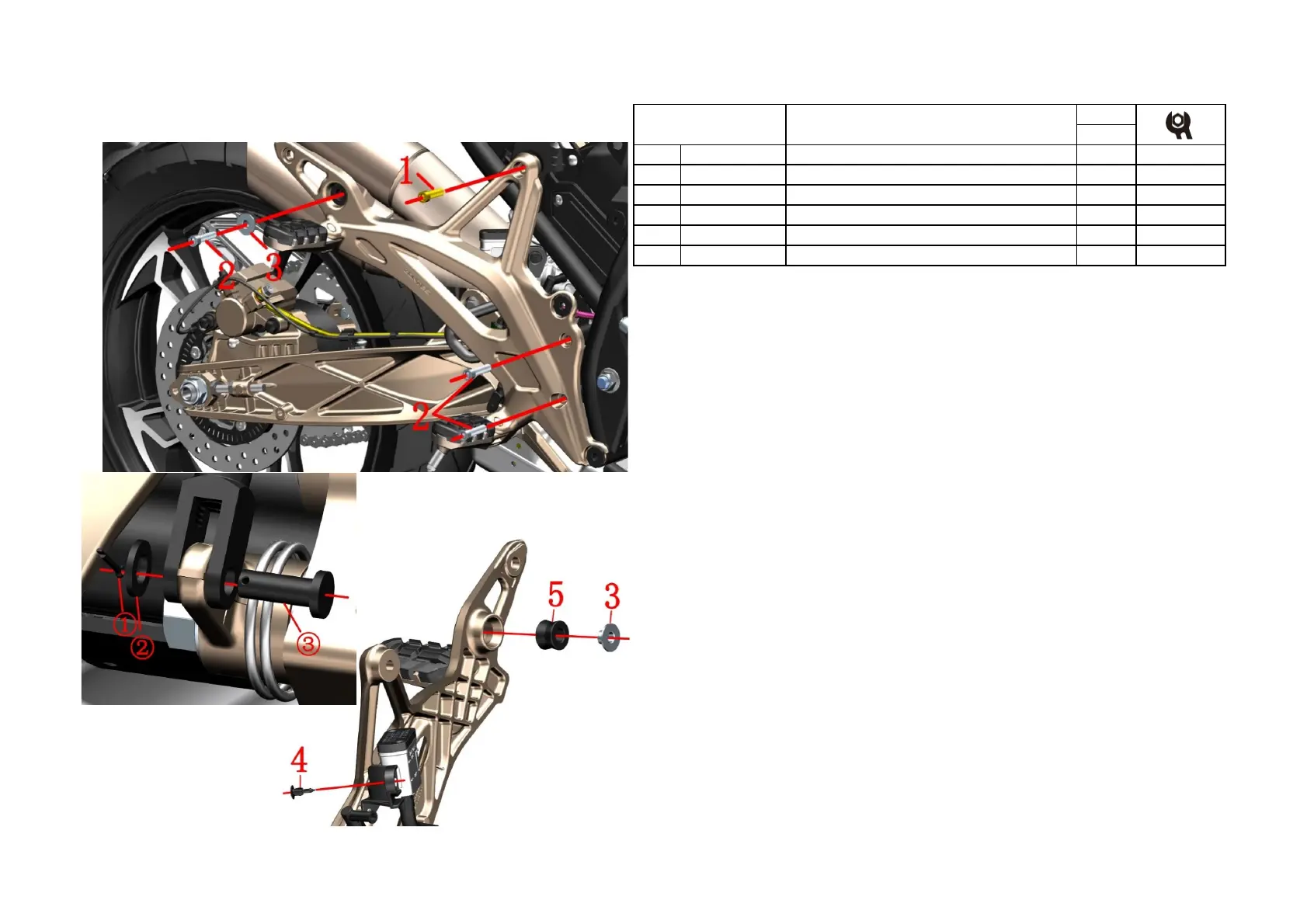

Fig. 2 FOOT PEDAL
COMPONENT
Right footrest component-1
