7、FRONT FORK COMPONENT 59
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 6
2 1270300-273000 Φ8 line clamp (L=73) 3
3 1274100-007000
－
S Flanging bushing(φ6.4×φ9×6
＋
4 1244100-004000 ZT250-S Flanging Bushing Buffer 4
5 1251100-084093 Non-standard bolt M10×1.5×66 (Dacro) 2
6 1251500-007091 Non-standard flat pad φ10.5×φ24×2 (white zinc) 2
7 4024200-028000 ZT310-T guard bar mounting bracket 1
8 1251300-057093 Non-standard nut M10×1.5 (Dacro) 2 65±5N.m
9 1224200-082000 ZT310-T frame front riser trim cover 1

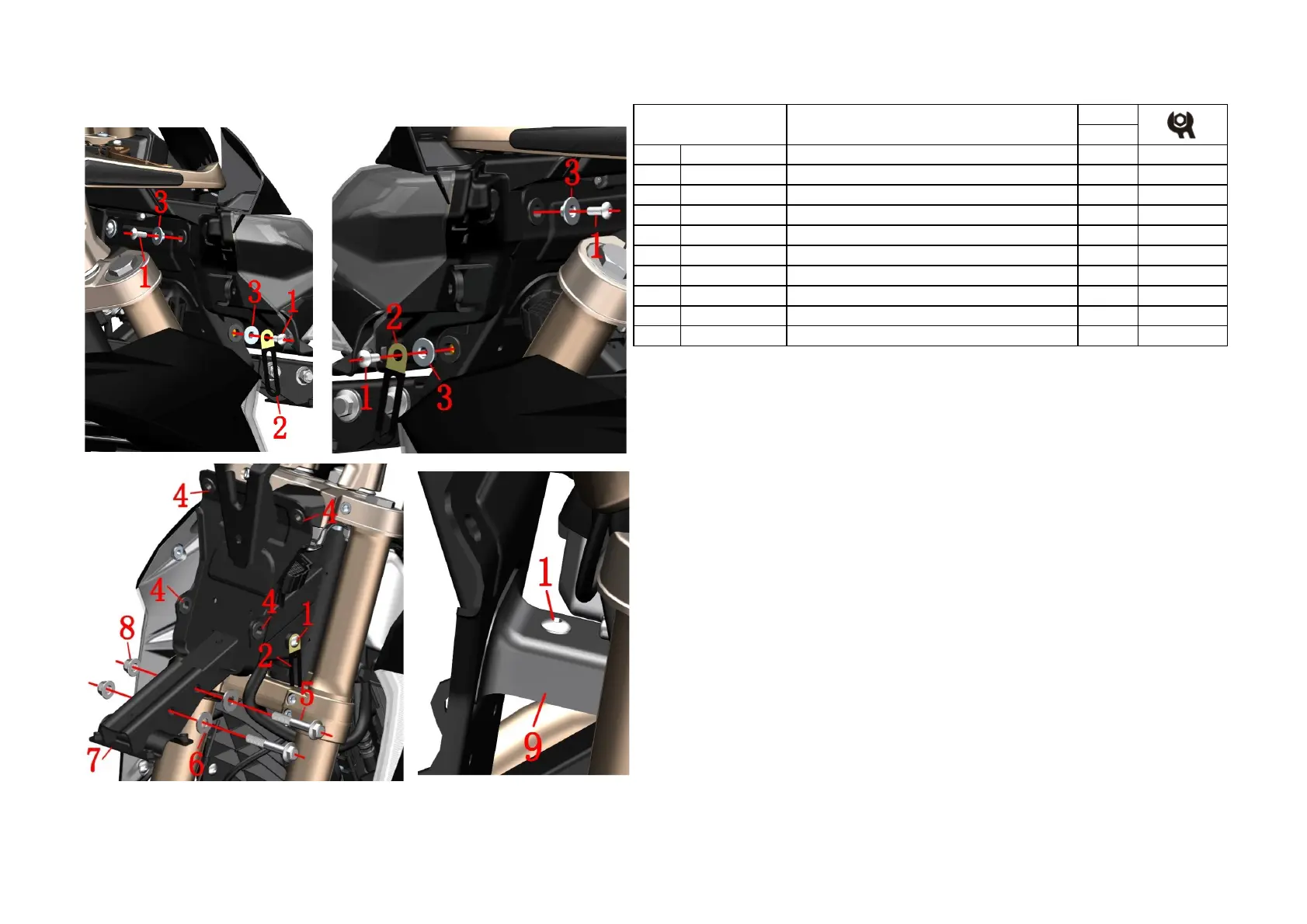

Fig. 16 FRONT FORK
COMPONENT
Headlight component 1
PROCEDURE:
●Headlight component
Straighten the three clips (2) first. One person holds the headlight component; the other person removes the bolts
on the left and right sides (1), removes the clamp (2), and the flange bushing (3), then pulls the headlight
component slightly and then removes the headlight line. Cable connector. Pass the meter and windshield
controller cable through the gap in the headlight component. Place the headlight component. It is recommended to
place a soft non-woven fabric to prevent scratching the lampshade.
Remove the cuff bushing cushioning rubber (4) from the frame.
Remove the bolt (1) on the left side of the frame and remove the clamp (2).
●Support bracket on the guard bar
Secure the bolt (5) with a sleeve and remove the nut (8). Remove the bolts (5) and washers (6). Finally remove
the mounting bracket (7) on the guard bar.
●Front riser trim cover
Remove the bolt (1) and remove the front riser trim cover (9).
CAUTION:
●
When disassembling, pay attention to the direction and strength of force to prevent damage or scratching of the
material.
●It is strictly forbidden to pull the cable directly. When assembling, the cable should not be bent or entangled
excessively.
To Next Page
