Zontes ZT310-T EURO IV User Manual

4、REAR WHEEL COMPONENT 19
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224100-037000
0 degree antiflaming cable tie
（
black3.6×295
）
3
2 1251100-101000
Non standard bolt M6×12
（
304 stainless steel
）
2
3 1270300-273000
φ8 cleat
（
L=73)
1
4 1184200-030000
ZT310
－
R sub mudguard connecting cable(L=2000)
1
5 1224200-003000
ZT310
－
Z rear disc brake oil tube cleat
1
6 1250105-143093
GB5789M8×35
（
environmental color zinc
）
1
7 1250501-007093
GB93φ8
（
environmental color zinc
）
3
8 1250503-021093
GB97.1φ8
（
environmental color zinc
）
3
9 1250105-148093
GB5789M8×30
（
environmental color zinc
）
2
35
～
40N.m
10 1250303-011093
GB6177.1M8
（
environmental color zinc
）
1
35
～
40N.m

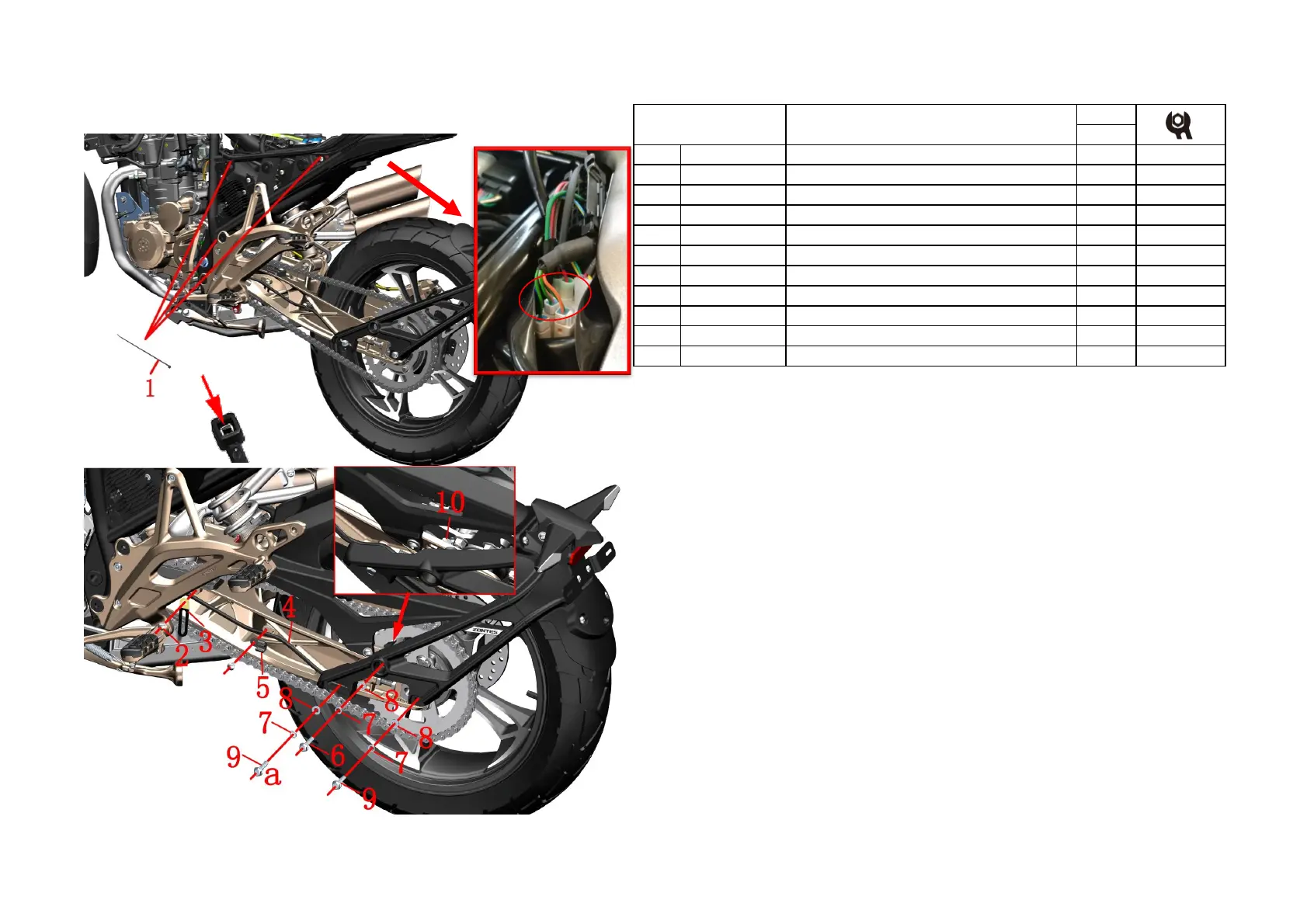

Fig.1 REAR WHEEL
COMPONENT
Rear sub mudguard component 1
PROCEDURE:
●Rear vice fender assembly
Find interface a and unplug three plugs.
Cut off or use a tool to untie the cable tie.
Pull straight the clip⑶.Remove bolt⑵, take off the clip⑶ and disc brake oil pipe clamp⑸.
Use plum blossom wrench to tightent the nut⑽ and disassemble bolt⑹ which is close to "ZONTES" mark with
a sleeve.And remove the spring pad⑺,flat pad(8)and nut⑽.
Hold the Rear vice fender assembly and disassemble bolt⑹ and bolt⑼ with a sleeve. Take off spring pad⑺
and flat pad⑻.
Take off the Rear vice fender connecting cable and rear vice fender assembly.
CAUTION:
●The seat cushion, left side cover, etc. must be removed in advance.
●Do not pull the cable hard when removing the rear vice fender connecting cable.
●
When reassembling, make sure that the torque of the three M8 bolts reaches 35N.m, and you need to apply the
thread fastening glue first. Before tightening the bolts, check that there is any pressure on the wires to prevent
short circuits when tightening the bolts.
● From 12 November 2019 "a" bolt length changed from 35 to 30.
