7、FRONT FORK COMPONENT 50
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-137000 Non-standard bolt M10×1.5×100 (Dacro) 3 65±5N.m
2 1251100-082093 Non-standard bolt M10×1.5×20 (Dacro) 2 65±5N.m
3 1251300-057093 Non-standard nut M10×1.5 (Dacro) 2 65±5N.m
4 1251112-001093 M6×16 Hex flang bolt thread(color zinc) 4
5 4024200-027000 ZT310-T frame protection bar pressure plate 1
6 1144200-034000 ZT310-T left guard 1
7 1144200-030000 ZT310-T retaining bar rubber sleeve 2
8 1144200-033000 ZT310-T right guard bar 1
●Guard bar component
Remove the bolts (1) and (2) on the right side of the vehicle.
One person uses a sleeve to fix the head of the left bolt (1) of the vehicle, and one person removes the nut (3)
with a sleeve; do not remove the bolt (1) first.
One person grasps the left guard bar, and the other person grasps the right guard bar with one hand and then
removes the four bolts (4) under the upper fender from the other hand, and removes the guard bar (5). Remove
the right guard bar (8), the left guard bar (6), and the bolt (3).
Remove the protective rubber sleeve (7) from the left and right guard bars.
CAUTION:
●The vehicle support should be fixed before operation.
●The torque of the bolts (1), (2) and nuts (3) must be 65±5N.m when reassembling; make sure that the guard
bars are not pressed to any cables.
●When reassembling, the left and right guard bars should be assembled first, and then the guard bar pressure
plate should be assembled.

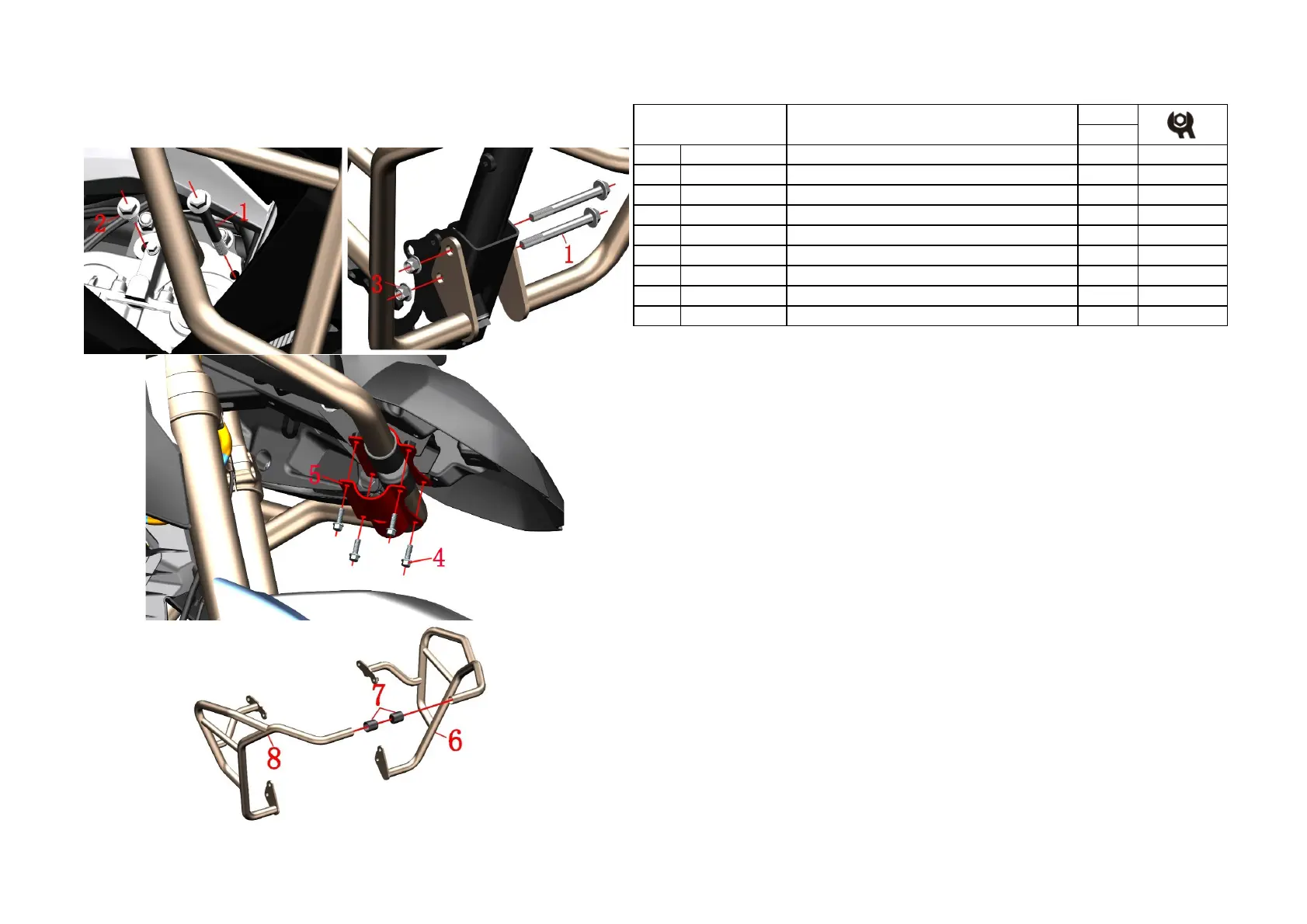

Fig. 7 FRONT FORK
COMPONENT
Guard bar component
