10、REAR COVER COMPONENT 87
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000 Non-standard bolt M6×16 (stainless steel) 5
2 1274100-057095
Flange bushing φ6.2×φ8.4×3.5
＋
3 1244100-052000
Flange bushing buffer rubber
（
）
4 1274200-103000
－
T Rear Aluminum alloy rack
1
5 1251100-123093 Non-standard bolt M8×25 (environmental color) 5
6 1250105-137093 GB5789M6×16(environmental color) 2

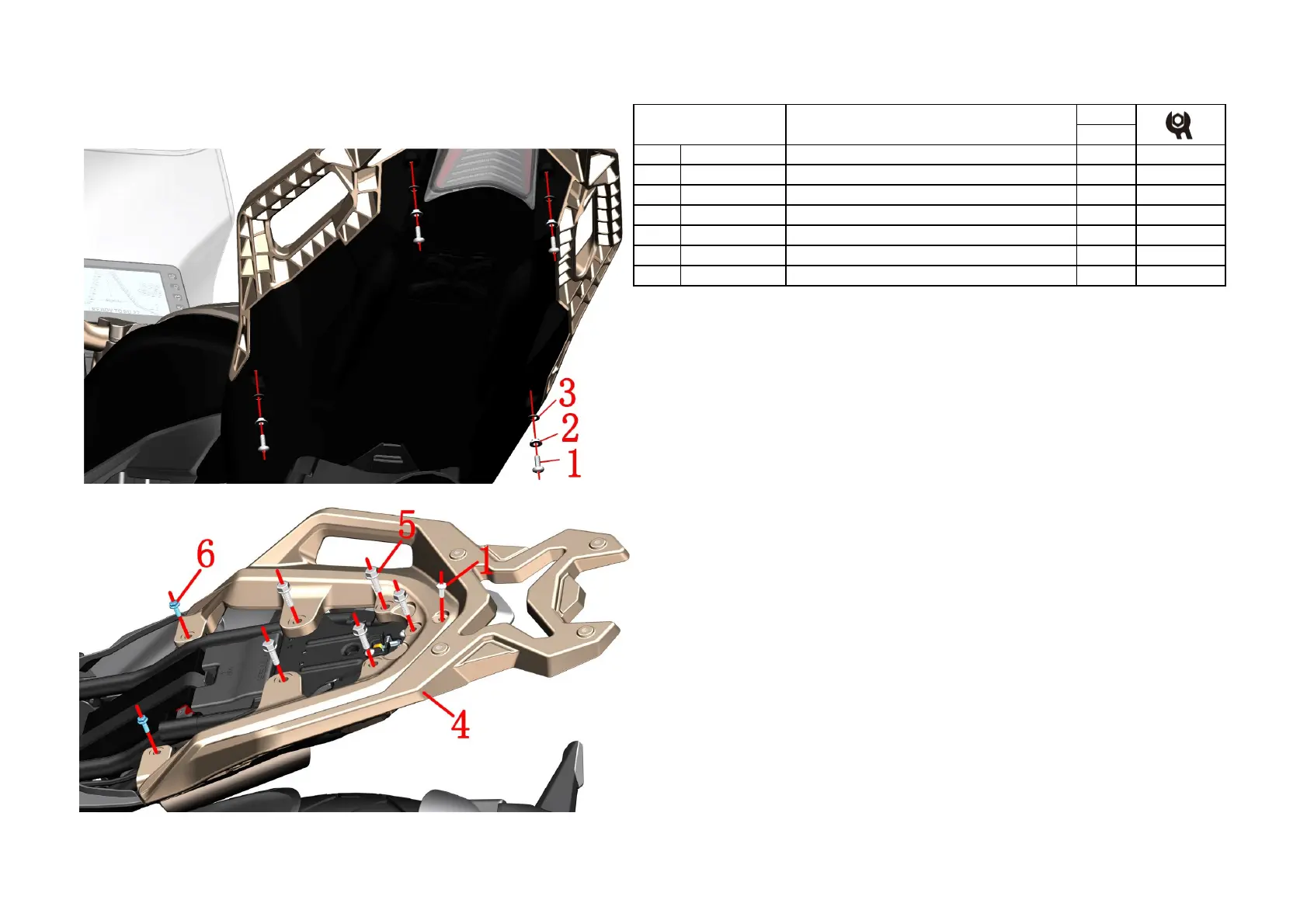

Fig.1 REAR COVER
COMPONENT
Rear rack
PROCEDURE:
●REAR RACK
Remove 4 units bolts (4) on the bottom and take off bushing (2) and bushing buffer rubber (3).
Remove bolt (1)；5 units bolts (5) and 2 units bolts (6).
Remove rear rack(4).
CAUTION：
●Remove the side cover and cushion in advance.
●Protect the parts from damage during the process of disassembly.
To Next Page
