5、FOOT PEDAL COMPONENT 36
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1274200-073000 ZT310-T rear left pedal assembly NEW
4064200-022051 ZT310-T rear left pedal assembly(dark gray matte)
2 1264100-005000 ZT250-S pedal steel ball spring 1
3 1274100-010000 ZT250-S rear pedal steel ball 1
4 1270300-272000 KD250-F rear pedal positioning piece 1
5 1274100-012000 ZT250-S foot pin 1
6 1264100-006000 ZT250-S pedal circlip 1
1274200-048000 ZT310-R left foot stand
4064200-004051 ZT310-R left foot stand(dark gray matte)
8 1244100-002000 ZT250-S side cover round glue 2
9 1244200-036000 ZT310-T pedal rubber sleeve 1
10 1274200-051000 ZT310-X pedal rubber sleeve fixed pin 1
1032142-043000 ZT310-T rear left pedal
4064200-009051 ZT310-T rear left pedal(dark gray matte)
12 1250205-038000 GB70.2 M5×12 (stainless steel) 1
13 1250501-010000 GB93φ6 spring pad 1
PROCEDURE:
●Rear left pedal
Use the tool to remove the circlip (6), remove the pedal pin (5), and then pull the rear left pedal assembly (1)
out, remove the positioning piece (4), steel ball (3), spring (2).
●Pedal support
Remove the side cover round rubber (8).
●Pedal sales parts
After grasping the left foot pedal assembly, remove the bolt (12) with the hexagonal tool. Remove the rubber
sleeve (9) and the fixed piece (10) and the rear left pedal(11).
CAUTION:
●Make sure the assembly is correct when replacing the quick-wear parts of the pedal separately.
●Since 20th Mar 2020,add a GB93φ6 spring pad.
1 1
11 1
7 1
Pedal after sales
parts

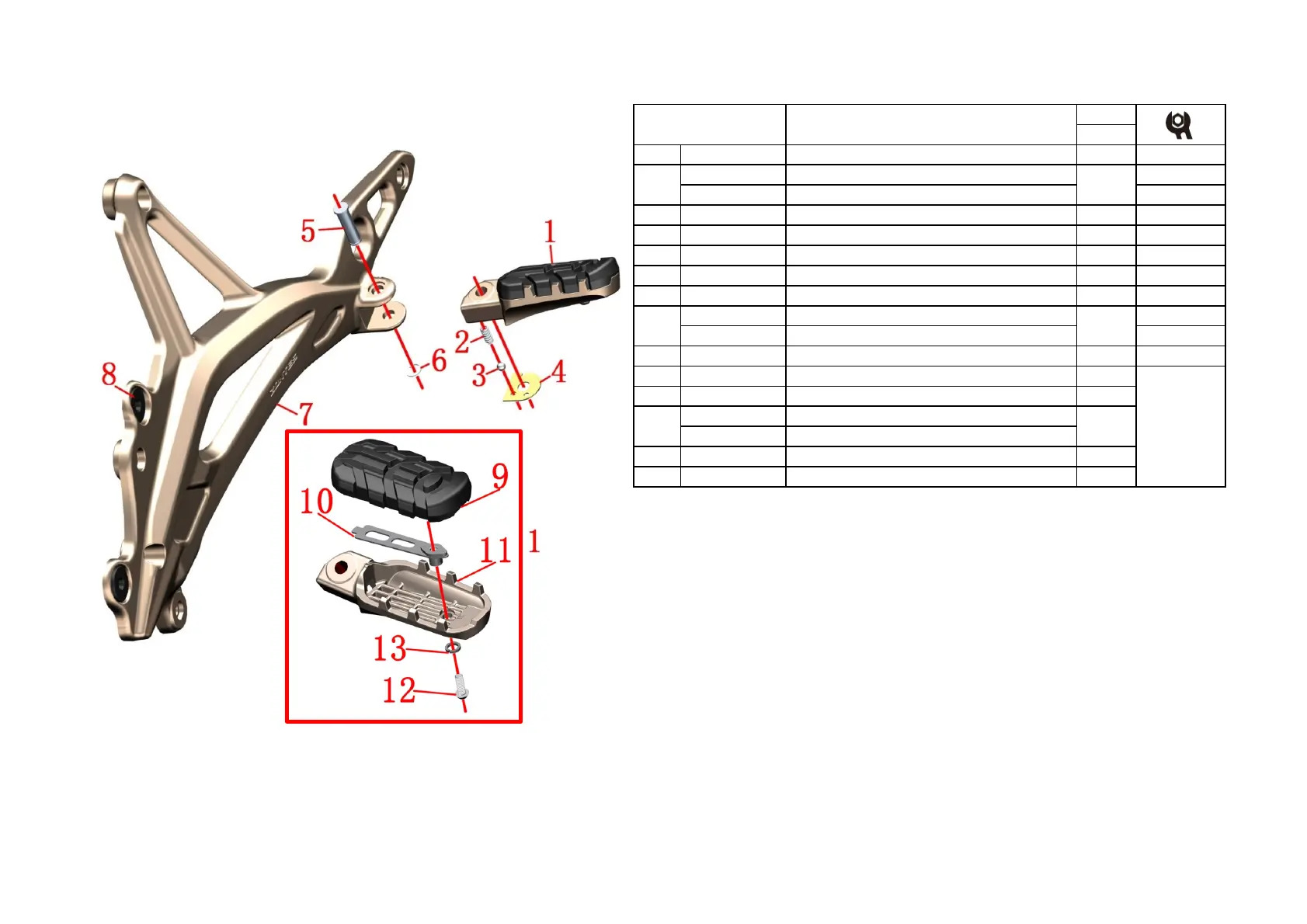

Fig. 7 FOOT PEDAL
COMPONENT
Left footrest componet-3
