Zontes ZT310-T EURO IV User Manual

1、FRAME COMPONENT 12
CHK
AD
J
NO. PART NO.
PART NAME QTY CAUTION
1
4014200-010000
ZT310
－
T Frame after sale assembly
1
2
1130900-026000 ZT250
－
S Seat ring 2
3
1274100-006000 ZT250
－
S Frame oil filter 1
4
1051453-003000 27.4×2.65 Acrylate rubber O-ring 1
5
1274100-024000 ZT250
－
SOil-cooled joint 1
6
1244100-033000 Combination sealφ12×φ20×2 1
7
1251100-066093 M12×1.5×15 Oil drain bolt(Environmental color) 1 50±4N.m
8 1251300-057093 Non-standard bolt M10×1.5（Dacro） 1 45±5N.m
9 1251700-025091 ZT250－S Side bracket bushing 1
1274200-200000
ZT310
－
T Side bracket (short)
1271200-165000
ZT310
－
T Side bracket (short/dark gray)
1274200-070000
ZT310
－
T Side bracket
1274200-289000
ZT310
－
T Side bracket (dark gray)
11 1251100-088094
Non-standard bolt M10×1.5×43(Dacro) 1
12 1264100-001000 ZT250－S Side bracket spring 1
PROCEDURE:
●Check the seat ring
Check whether there is worn on seat ring(2),and If there is,please purchase and replace it on Shengshi
official website.Press the seat in place with a suitable tool and apply grease.
●Replace the oil filter.
Place the oil plate underneath and remove the oil-cooled joint(5), O-ring (4), and oil filter(3) with
appropriate tools. When replacing the oil filter (3), the O-ring (4) must be replaced at the same time.
Always tighten the oil-cooled fitting (5) to the standard torque value during reassembly.
●Let out the oil in the frame tube
Place the oil plate underneath and remove the oil drain bolt(7) and seal(6) with a suitable tool,exhust the
oil from the frame tube. Refer to the instructions for detailed steps to replace the oil. It is recommended to
replace the oil drain bolt(7) and the seal(6) at each time to change the oil to prevent oil leakage.
●Side bracket
Use a Phillips screwdriver to remove the side bracket spring(12) to prevent personal injury when the
spring is retracted; remove the nut(8) and bolt (11) with a suitable tool; remove the side bracket(10) and
bushing(9). When reassembling, the bushing(9) is first greased and placed in the frame (1).The side
bracket a is a low seat version and b is a high seat version.
CAUTION：
●Remove first the wind deflector COMPONENT, handle bar COMPONENT, steering column COMPONENT.
●The seat ring should be greased to reduce the resistance of the front fork.
●The wasted engine oil should be recycled and handed over to a qualified institution for disposal.It is forbidden
to dump and pollute environment or water source.
● Be careful when disassembling the side bracket springs. All parts should be properly assembled in place.
●
Side stand "a" Type :Side stand "a" Type :the bottom edge has a jagged shape and number "7" is matched with
the ZT310-X front shock absorber;Side stand "b" Type :matching ZT310-T (40) front shock absorber use. The
letters behind the ZT+4 number on the inside of the bottom cylinder represent the shock-absorber models, such as
“X”, “T40”. For example, ZT1908T40: "ZT" stands for ZONTES, "1908" stands for August 2019, and "T40" is
the shock absorber model. Different models have different shock absorber lengths, so be careful to distinguish
them clearly.

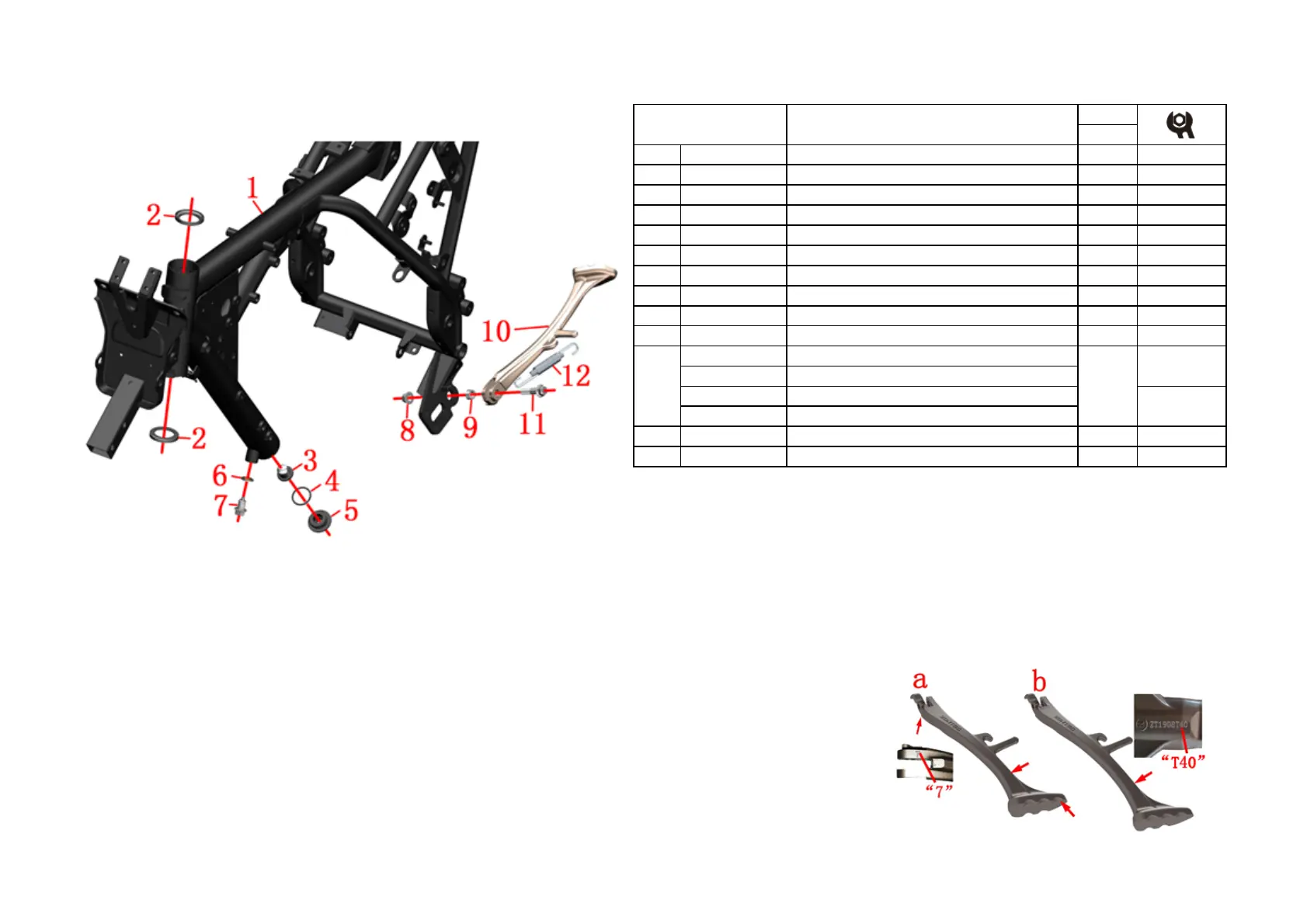

FIG.5 FRAME&ELECTRONIC
PARTS COMPONENT
Frame, Side support, the operation of releasing engine
oil
10 1
a
b
