7、FRONT FORK COMPONENT 54
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1 1244200-073000 ZT310-T windshield controller rubber sleeve 1
2 1184200-073000 ZT310-T windshield motor controller 1
3 1260100-218000 ZT310-T rocker extension spring 2
4 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 3
5 1250501-010000 GB93φ6 spring pad 3
6 1274200-137000 ZT310-T motor pressure plate 1
7 1244200-074000 ZT310-T windshield motor sheath 1
8 1184200-074000 ZT310-T windshield motor 1
9 1244200-075000 ZT310-T windshield front rocker buffer rubber 4
10 1250201-046000 GB818 cross recessed pan head screw M4×16 4
1274200-144000 ZT310-T hood right lower rocker
4024200-080051 ZT310-T hood right lower rocker(dark gray matte)
1274200-118000 ZT310-T lower rocker clamp
4024200-081051 ZT310-T lower rocker clamp(dark gray matte)
1274200-143000 ZT310-T hood lower left rocker
4024200-079051 ZT310-T hood lower left rocker(dark gray matte)

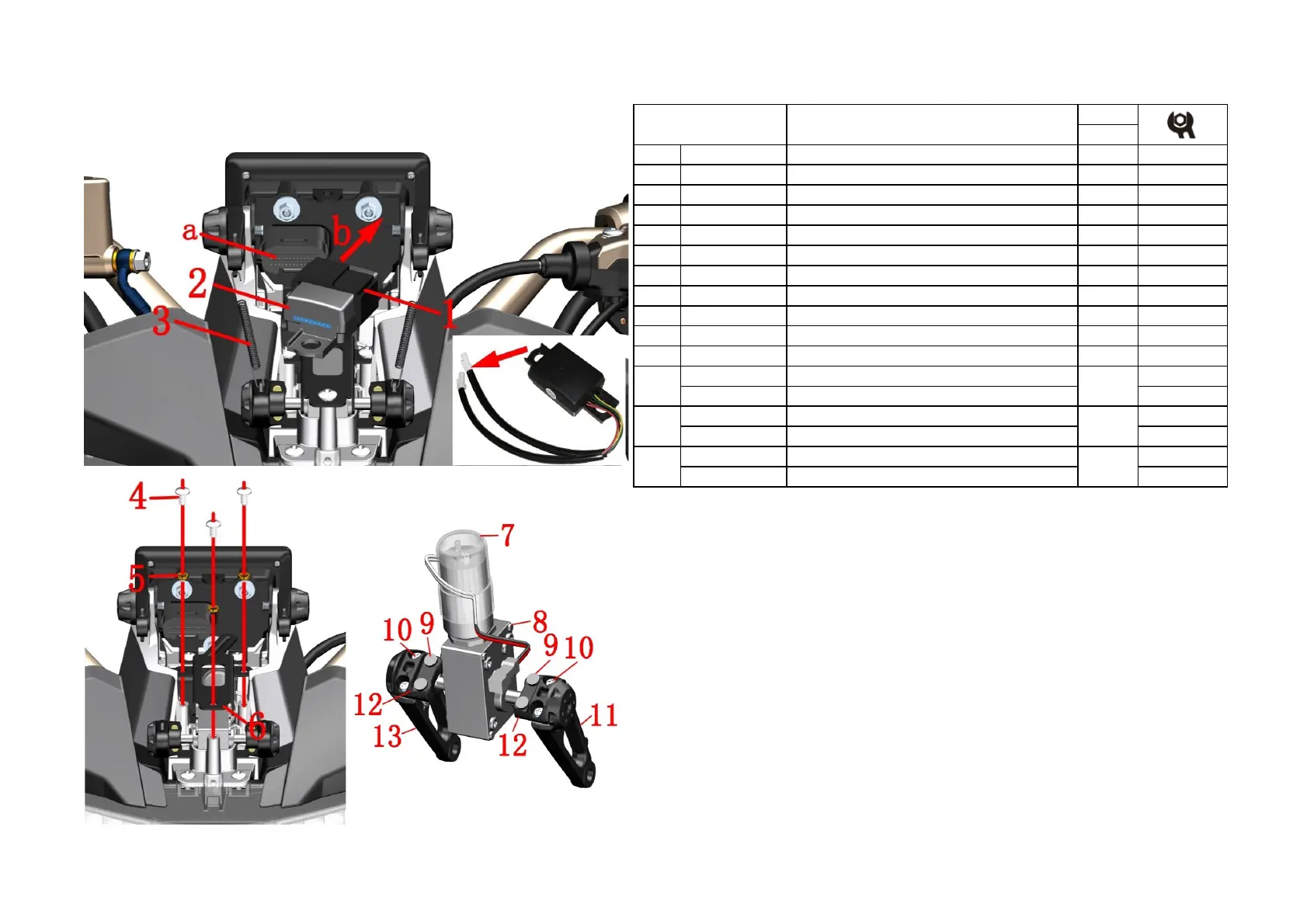

Windshield motor component
PROCEDURE:
●Windshield motor controller component
First turn the black protective rubber sleeve of the instrument cable connector at a downward to expose the
connector, and press the limit buckle down and unplug the connector. Locate and unplug the controller and the
windshield motor.
Remove the windshield motor controller component in the direction indicated by arrow b; remove the rubber
sleeve (1) from the motor controller (2).
Remove the tension spring (3) with pliers.
●Wind block motor pressure plate
Remove the three bolts (4), remove the three spring washers (5), and remove the motor pressure plate (6). Finally
remove the windshield motor component.
●Wind gear motor assembly
Remove the windshield motor sheath (7) and rocker cushion rubber (9). Remove the bolt (10) with a Phillips
screwdriver and separate the rocker clamp (12), the lower left rocker (13), the windshield motor (8) and the lower
right rocker (11).
CAUTION:
●
When pulling out the plug, it is strictly forbidden to pull the cable directly. When assembling, the cable should
not be bent or entangled excessively, and the parts should be prevented from directly pressing the cable.
11
12
13
1
2
1
Fig. 11 FRONT FORK
COMPONENT
