4、REAR WHEEL COMPONENT 28
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1100100-092000
－
S rear disc brake arrester(HS10)
1
PROCEDURE:

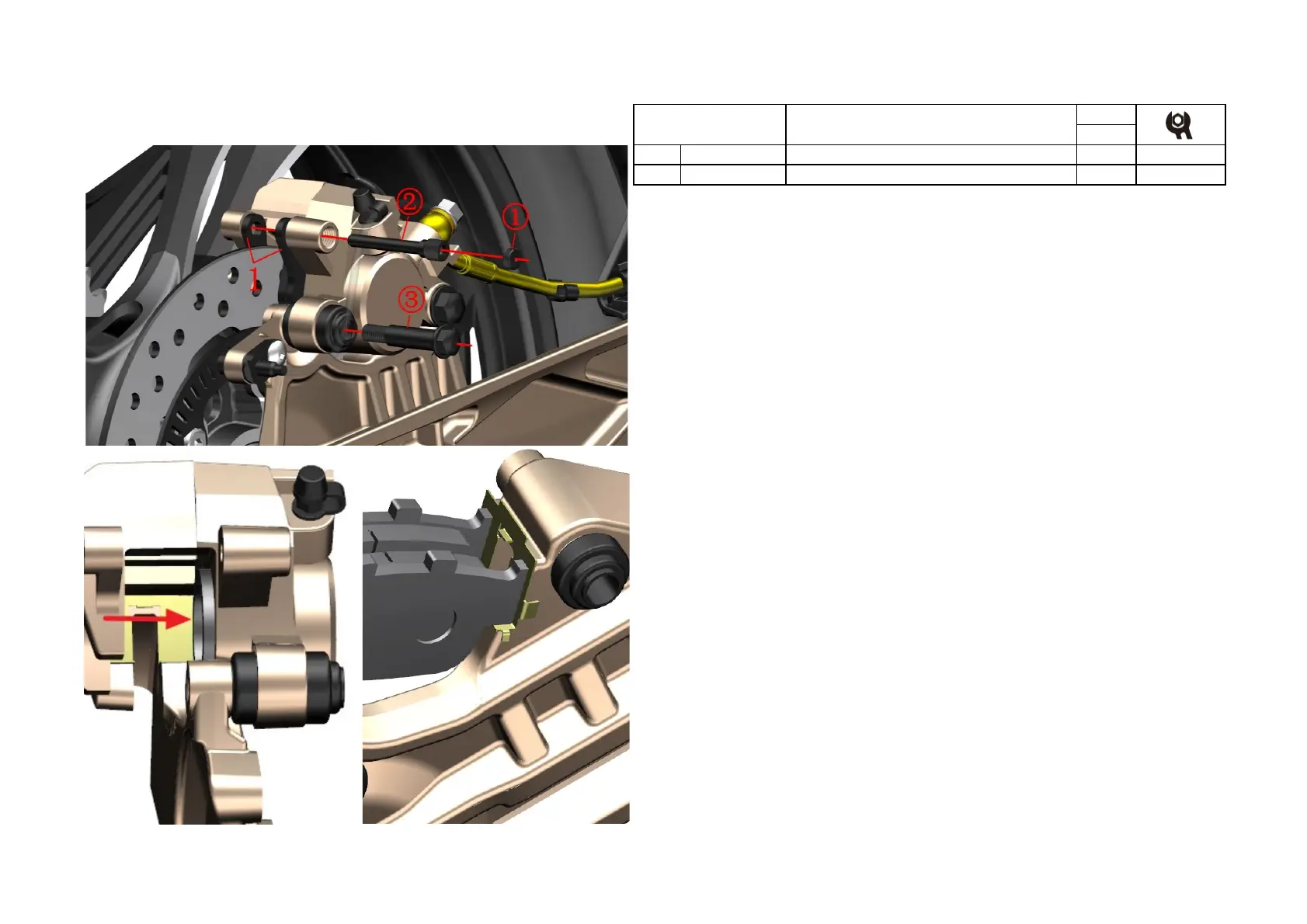

●Disassemble disc brake pad
Use slotted screwdriver to disassemble nut①.
Disassemble pin axle② with inner hex socket tool.
Disassemble rolling axle③ with socket sleeve.
Take off rear disc brake pad⑴.
●Replace rear disc brake pad
Push the caliper piston all the way to the direction of the arrow, as shown in the lower left corner. In order to
reduce the resistance, the cross bolt on the oil cup of the rear brake main pump can be removed first, and the
upper cover and the sealing rubber pad are removed; it should be restored in time after being pushed to the
bottom.
The new brake pad must to be fitted tightly the slot. As show in figure below.
Tighten the pin axle② with inner hex socket tool.
Tighten rolling axle③ with socket sleeve.
Tighten nut① with slotted screwdriver.
Step on braking pedal several times until braking force is recovered.
CAUTION:
●Check regularly the brake pad and disc brake plate status.
●To change brake pad in qualified mainenance spot are suggested.
●After changing the brake pad,adjust the height of braking pedal according to "Foot pedal, gear shift rod
assembly" if necessary.
●After the new brake pads are replaced, it should be carried out for about 300 kilometers to fully achieve the
best braking effect. Pay attention to leave enough braking distance during running-in.
Fig.10 REAR WHEEL
COMPONENT
Change rear brake arresters
To Next Page
