Zontes ZT310-T EURO IV User Manual

4、REAR WHEEL COMPONENT 26
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1230100-385000
ZT310
－
T 160/60R17(CM509P) tyre
1230100-232000
ZT310
－
T 160/60R17(CM509) tyre
2 1094200-020000
ZT310
－
T black rear rim
（
4.5×17
）
1
3 1100100-419000
ZT310
－
R1 rear disc brake plate
（
230×4.5
）
1
1274200-058000 ABS induction ring gear (60 teeth)
1274200-168021 ABS induction ring gear (40 teeth)
5 1251100-117093 Non standard hex socket bolt M8×25 5
22
～
24N.m
6 1230200-006000
HJ100
－
D tire valve cap
1
7
1230100-047000
HJ125
－
3A environmental tubeless tire valve
1
8
1184200-155000 ZT310 tire pressure wireless built-in sensor 1 EURO V
PROCEDURE:
●Disc brake plate, ABS gear ring
Disassemble bolt (5) with socket sleeve. Then take down the ABS gear ring (4) and the disc brake plate(3).
Note that the ring gear of the rear wheel has two kinds of 40and 60 teeth matching 17-inch front wheels; Some
vehicles produced in late May 2019 and before that are 40 teeth, after that are 60 teeth.
●EURO IV:Tire and rim assembly
Disassemble tire valve cap ⑹. Deflate the tire with tools. Then disassemble the rear tire (1) with professional
tire changing machine. Disassemble the tire valve⑺ with suitable tool then take off.
●EURO V:Tire pressure wireless built-in sensor
Remove the valve cap① that comes with the tire pressure wireless built-in sensor,use a tool to release the air, and
then use a professional tire puller to remove the rear tire ⑴, taking care to avoid the tire pressure sensor. Finally,
use a 12# wrench to remove the valve nut ② and the flat washer ③, and then remove the tire pressure sensor.
●Maintenance
Tire: Check regularly the tire on cracks and air pressure.If the tire is ware to the marker, change the tire with
same specification. See details in user manual. Ingradiant of tire include semi hot melt rubber. Area with too high
temperature is not suitable. If temparature of outdoor is too low, storing the motorcycle in warm place or indoor
is suggested in order to avoid frost crack. Normal temperaturestandard 250kPa.
Rim: Check if the rim has deformation or crack. Support the rim horizontally and check if it can rotate
smoothly. Specification of oil seal on rear rim is φ47×φ28×7. Bearing type: 6204-2RS.
Disc brake plate: Thickness can not be less than 4mm. If not, change it.

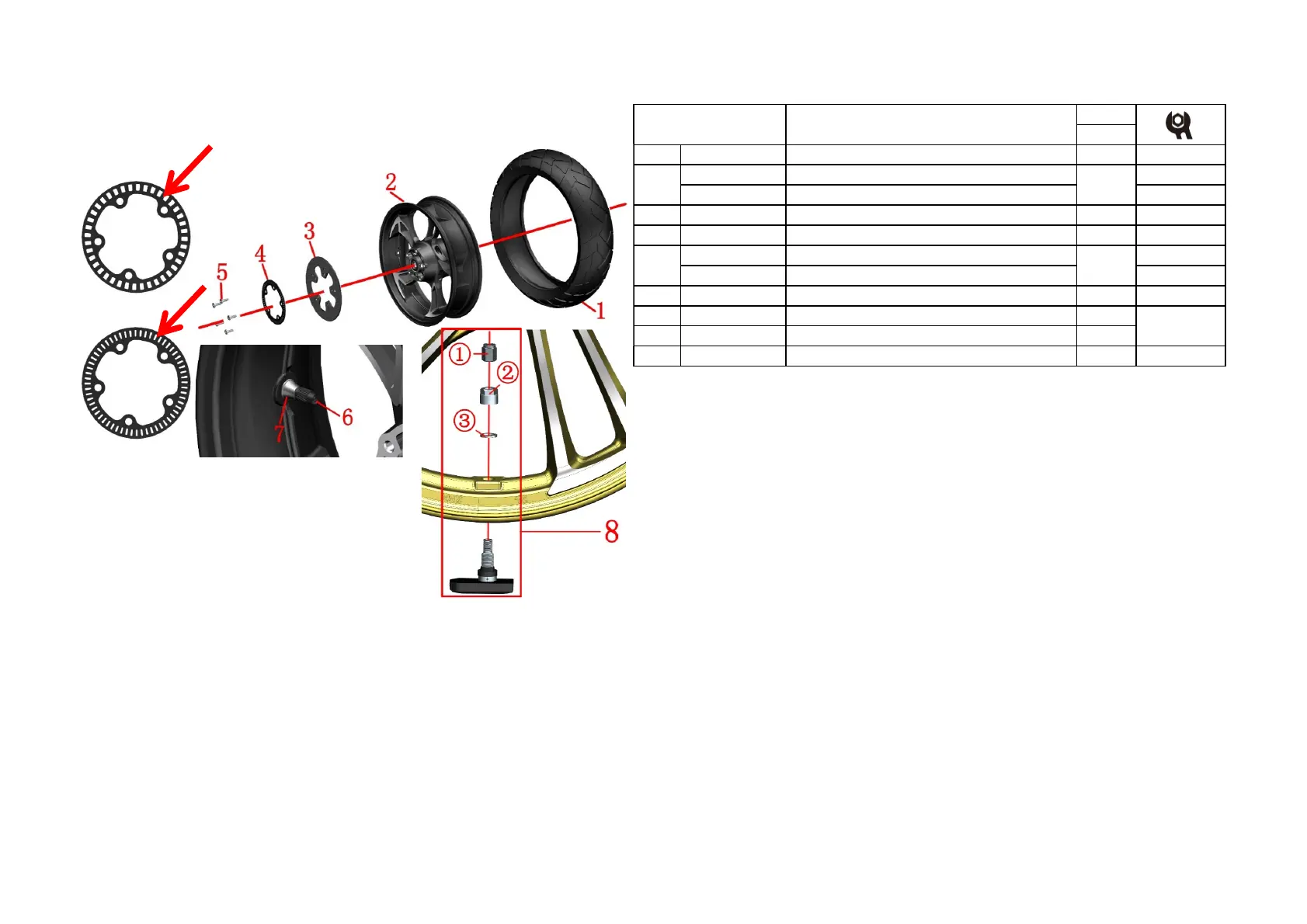

Fig.8 REAR WHEEL
COMPONENT
Rear wheel component 2
4 1
1 1
40T
60T
CAUTION:
●Be careful while disassembling the tire and rim in case of damages on the components.
●After changing the tire, check air proof performace and dynamic balance.
●Unqualified tire repair fluid may corrode the rim and cause safety hazards.
●Insufficient tire pressure can cause abnormal wear; there is a risk of puncture in summer tire pressure.
●After the new brake disc is replaced, it should be carried out for about 300 kilometers to fully achieve
the best braking effect. Pay attention to leave enough braking distance during running-in.
EURO IV
