12、MUFFLER COMPONENT 103
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1 1250205-023000 GB70.1 inner hexagonal M8X35 (color Zinc ) 2
2 1274100-074000 ZT310-R Muffler clamp 1
4024200-003035 ZT310-R Titanium rear muffler
4084200-001051 ZT310-R dark gray rear muffler
4024200-004035 ZT310-R Titanium anti-hot board
4084200-002051 ZT310-R dark gray anti-scalding board
5 1251100-101000
（
）
6 1250501-010000 GB93φ6 Spring washer 2
7 1124100-012000
－
R muffler graphite gasket
（
）
PROCEDURE：
●Remove the rear component of muffler
Hold the muffler rear component with one hand, then use the hexagon tool to remove the bolt (1) from the gap
between the frame tube and the pedal bracket. Remove the clamp (2).
Remove the bolt (1) of pedal bracket and remove the rear component of muffler.
Remove the bolt (5) and then remove the spring washer.
Remove the anti-hot board (4) from rear muffler (3).
●Graphite gasket
Remove the graphite gasket (7) and protect this nozzle.If there is any deformation it may lead to air leakage.
CAUTION:
●The material need to be protected during the disassembly process to prevent damage of the paint surface.
●The muffler should be completely cooled before it is disassembled.
●Prevent other matter from entering the interior of muffler.
●The muffler nozzle needs to be protected.If there is any deformation, it may lead to air leakage.
●It is recommended that a new gasket should be replaced each time during the front component of muffler
removing so as to prevent air leakage.

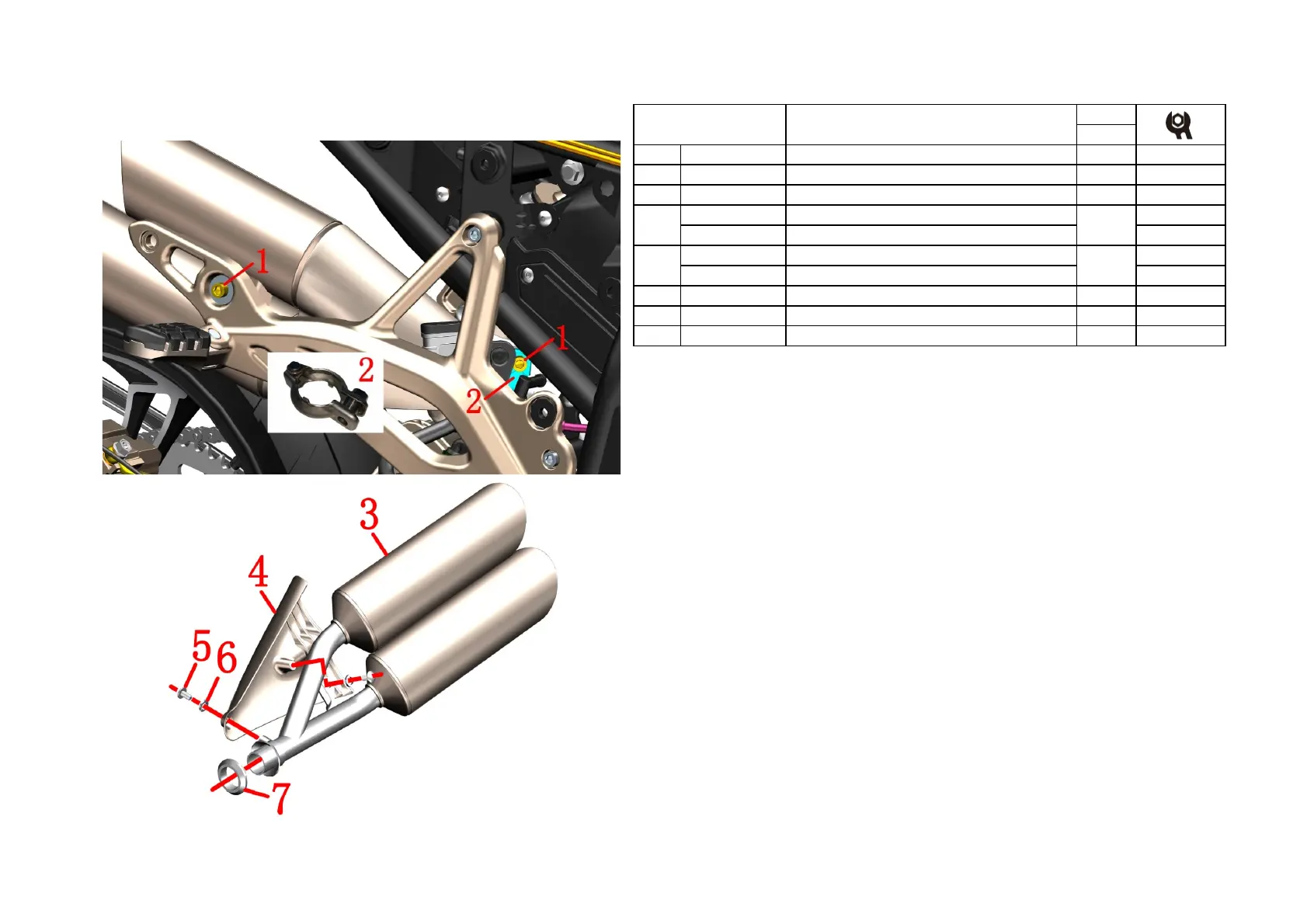

Fig.1 Muffler component Muffler rear component
3 1
4 1
