4、REAR WHEEL COMPONENT 23
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000 Non-standard bolt M6×16（stainless steel） 4
2 1274100-057095 Flanging bushingφ6.2×φ8.4×3.5＋φ14×1.5 2
3 1244100-052000 Flanging bushing buffer rubber (φ8.5×φ14×1) 3
4 1224200-003000 ZT310－ZRear disc brake pipe clamp 1
5 1224200-094000 ZT310－R Rear inner fender 1
6 1251700-059093
＋
（
environmental color-zinc）
1
7 1251112-001093 M6×16 Hexagon flange bolts (color zinc) 1

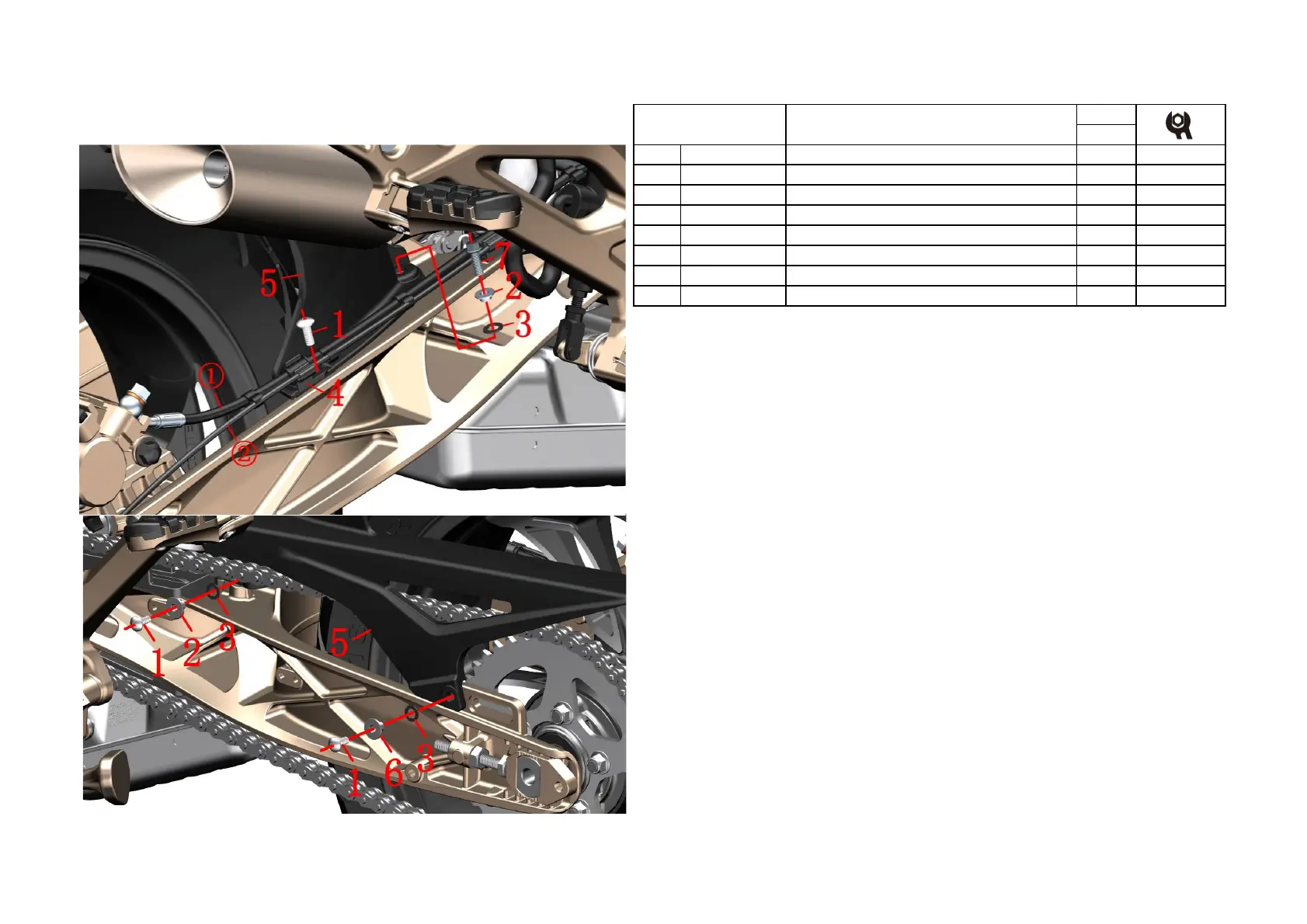

Fig.5 REAR WHEEL
COMPONENT
Rear inner mudguard
PROCEDURE:
●Rear inner mudguard
First of all, pull out the braking oil tube① and wheel speed sensor cable②
, which are on the right side of
rear inner mudguard,from the slot of rear disc brake oil tube cleat; Disassemble 3 bolts⑴ and bolts ⑺ with
hex sockets tool and open end wench, disassemble bush⑵,bush⑹; gum cushion⑶; finally take off the rear
inner mudguard⑸.
CAUTION:
●Use suitable tools to support the motorcycle, in case of accidents caused by motorcycle falling down. Single
person operating is prohibited.
●Stay alert during the manipulation and avoid accident.
To Next Page
