Zontes ZT310-T EURO IV User Manual

7、FRONT FORK COMPONENT 63
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1 1224100-051000
0 level fire-retardant belting
（
black2.5×100
）
1
2 1224100-044000 Wheel speed sensor clamp 3
3 1251100-061093 M6×22 hex flange face full thread bolt 1
4 1251100-080094 Non-standard bolt M8×37 (environmental color zinc) 2
5 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 2
6 1224200-127000 ZT310-T front wheel WSS wire clip 1
7 1184200-045000 DF30 wheel speed sensor 1
8 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 4
9 1244100-037000 Φ12×φ8.5×2.5 circular buffer rubber 4
10 1274100-018000 ZT250-S muffler anti-scalding bushing 4
4044201-380021
ZT310-R front mud board component (bright black)
【
1
】
4044201-381051
ZT310-R front mud board component (dark gray )
【
2
】
4044201-382051
ZT310-R front mud board component (dark gray)
【
3
】
12 1274200-035194 ZT310 Front mudguard liner(black zine) 2
13 1274200-038000 ZT310-X front mud board front oil pipe fixing seat 1
14 1250402-001091 GB12615φ3×10 1

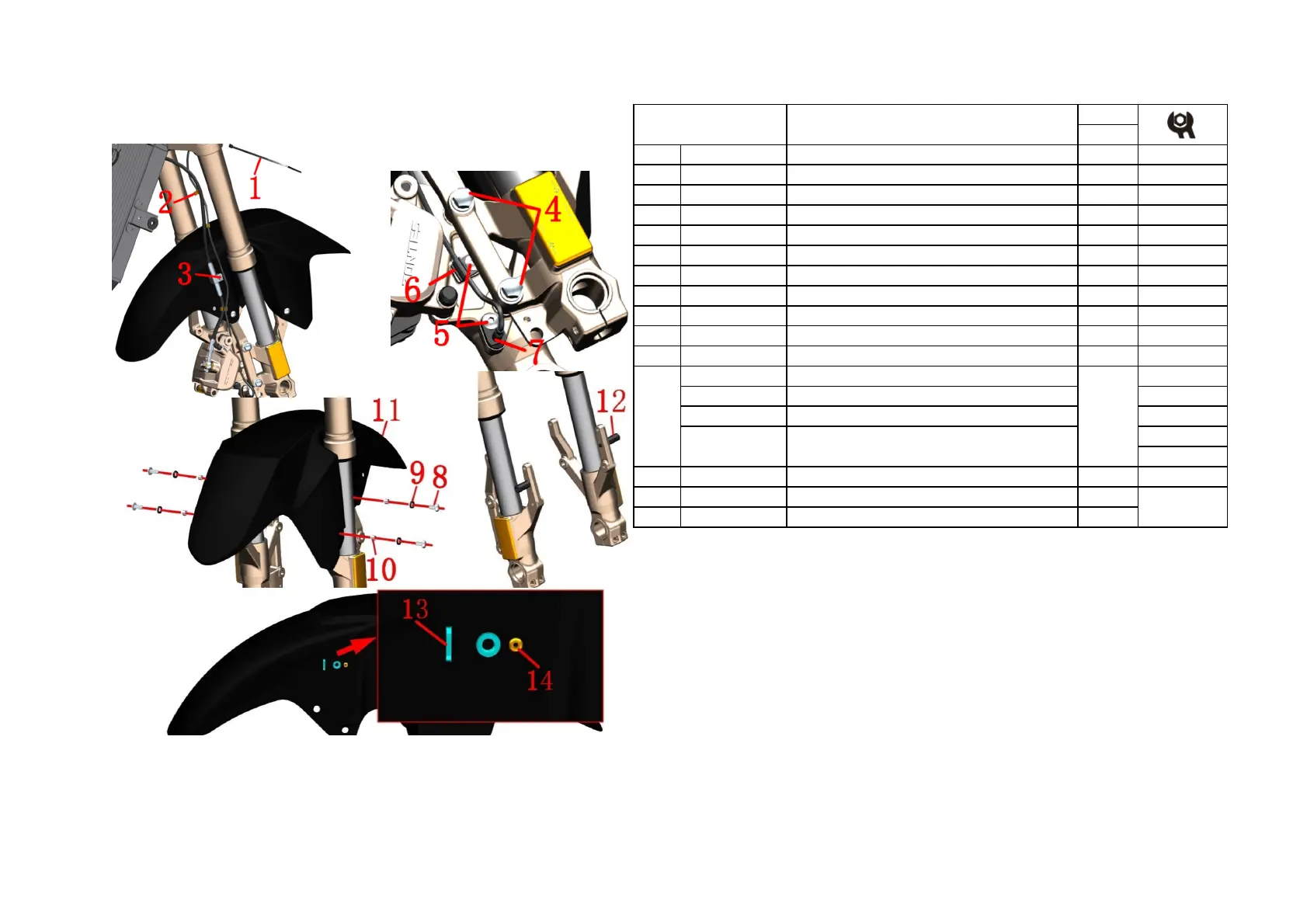

Fig. 20 FRONT FORK
COMPONENT
Front mud board & wheel speed sensor component
CAUTION:
●[1] is used for special black vehicles; [2] is used for dark gray and bright blue vehicles; [3] is used for
dark gray and bright orange vehicles.The mudguard component has been included Front mudguard front
oil pipe fixing seat⑾ and Rivet⑿. Rivets need to be assembled with professional tools.
PROCEDURE:
●Wheel speed sensor
Pull out the plug of the wheel speed sensor (7); cut off the belting (1); then remove 3 pcs clamp (2).Pull out the
sensor cable from the clip(6) and remove the bolts(3) abd bolts(5) on the bottom, remove the sensor(7).
●Front disc brake caliper
Remove the bolts (3) and (4) so that the caliper will hang down naturally. It is forbidden to invert the caliper to
prevent the air from entering and causing the brake to fail.Remove thebolt(5) on the clip(6) and take out of it.
●Front mudguard
Hold the front mud plate (11) with your hand and then remove the 4 bolts (8) and remove the bushing (10) and
cushion rubber (9). Remove the front mudguard (11). The inside of the front mudguard can be protected with
reticle or double-sided tape around the rivet (14), then the rivet is ground off with a small sander, and then the
rivet (14) and the fixing seat (13) are removed.
●Front mudguard liner
Remove the bushing(12) with a 10mm open end wrench.
after-sale
ZT310-R front fender (dark bright gray/applique
white/ABS)
4044201-532052
11 1
