5、FOOT PEDAL COMPONENT 32
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1
1251100-121093 Non-standard bolt M6×25 (environmental color)
2
2
1251100-131000 Non-standard shaft bolt M10×1.5×36
1
1274200-010000 ZT310-R brake pedal
1274200-300051 ZT310-R brake pedal(Dark gray)
4
1260100-119093 ZT310-R brake pedal torsion spring
1
5
1251500-060095 Non-standard flat pad φ10.5×φ26×1
1
6
1251100-101000 Non-standard bolt M6×12 (304 stainless steel)
1
7
1274100-057095 Flanging bushing
1
8
1244100-052000 Cuff bushing cushioning rubber (φ8.5×φ14×1)
1
9
1224200-055000 ZT310-R rear disc brake oil cup bracket
1

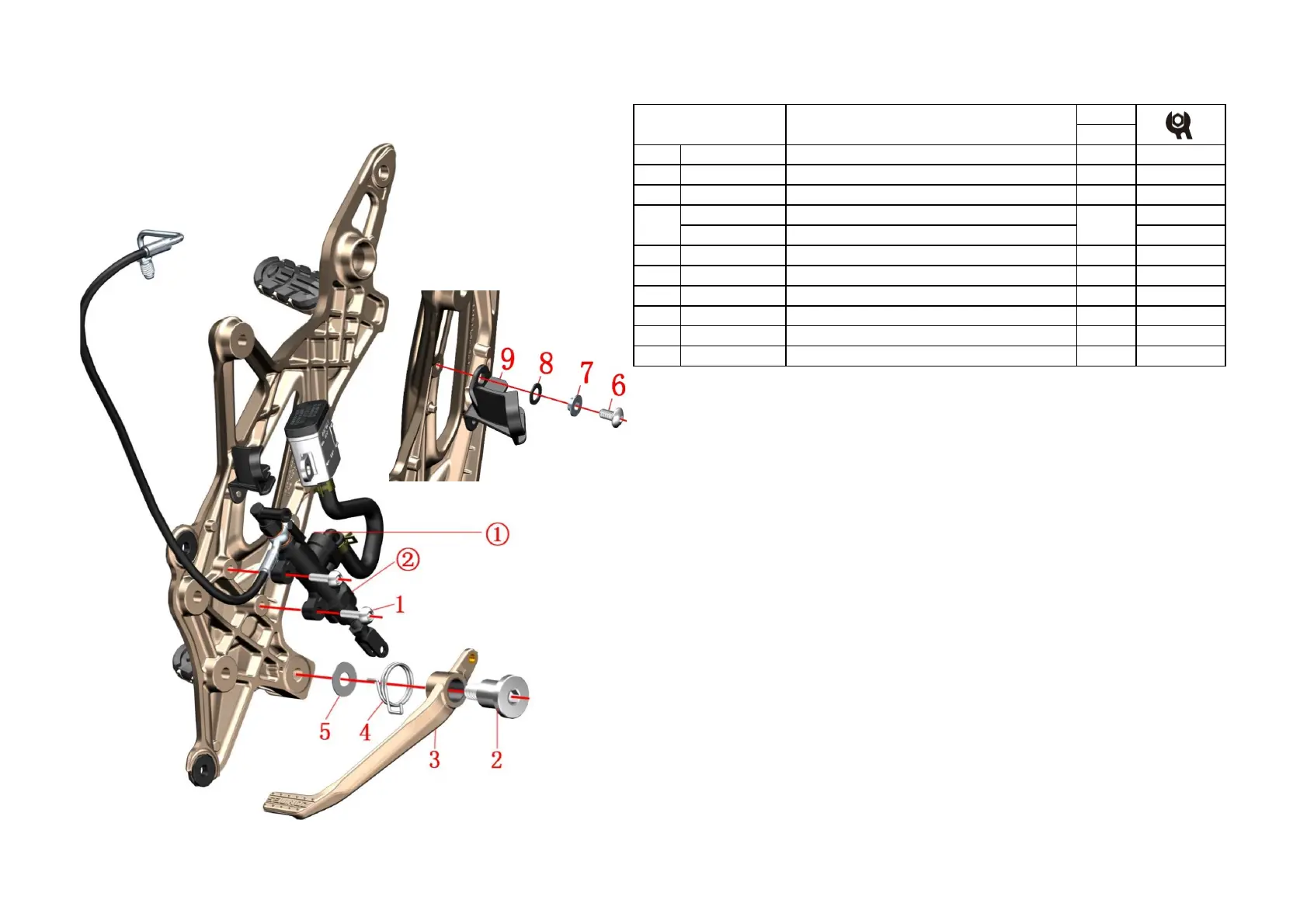

Fig. 3 FOOT PEDAL
COMPONENT
3 1
PROCEDURE:
●Rear disc brake main pump component
Remove the bolt (1); the rear disc brake oil cup must not be lower than the oil pipe joint ① on the rear disc
brake main pump ②.
●Brake pedal component
Remove the bolt (2); pull the brake pedal (3) out; remove the brake pedal torsion spring (4) and washer (5).
●Rear disc brake oil cup bracket
Remove the bolt (6) and remove the flange bushing (7), rubber pad (8), and rear disc brake oil cup bracket (9).
CAUTION:
●Apply grease evenly to the inner surface of the brake pedal bushing to reduce brake pedal resistance.
●When reassembling, pay attention to the torsion spring to be inserted into the reserved hole on the pedal
bracket.
●The vehicle support should be fixed during the disassembly process to prevent accidents caused by dumping.
●The disc brake oil cup and the disc brake main pump should be placed to prevent the upper air of the oil cup
from entering the brake line.
