7、FRONT FORK COMPONENT 55
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 4
2 1251112-001093 M6×16 hex flange bolt (environmental color zinc) 4
3 1224200-093000 ZT310-T upper rocker decorative block 2
4 1274200-136000 ZT310-T hood upper rocker gasket 2
5 1250601-093000 6802 deep groove ball bearing 2
6 1274200-114000 ZT310-T windshield rocker arm 2
7 1274200-115000 ZT310-T hood aluminum bracket 1
8 1250303-010093 GB6177.1M6 (environmental color) 3
9 1274200-063000 ZT310-T instrument bracket 1
10 1164200-001000 ZT310-X electronic instrument 1

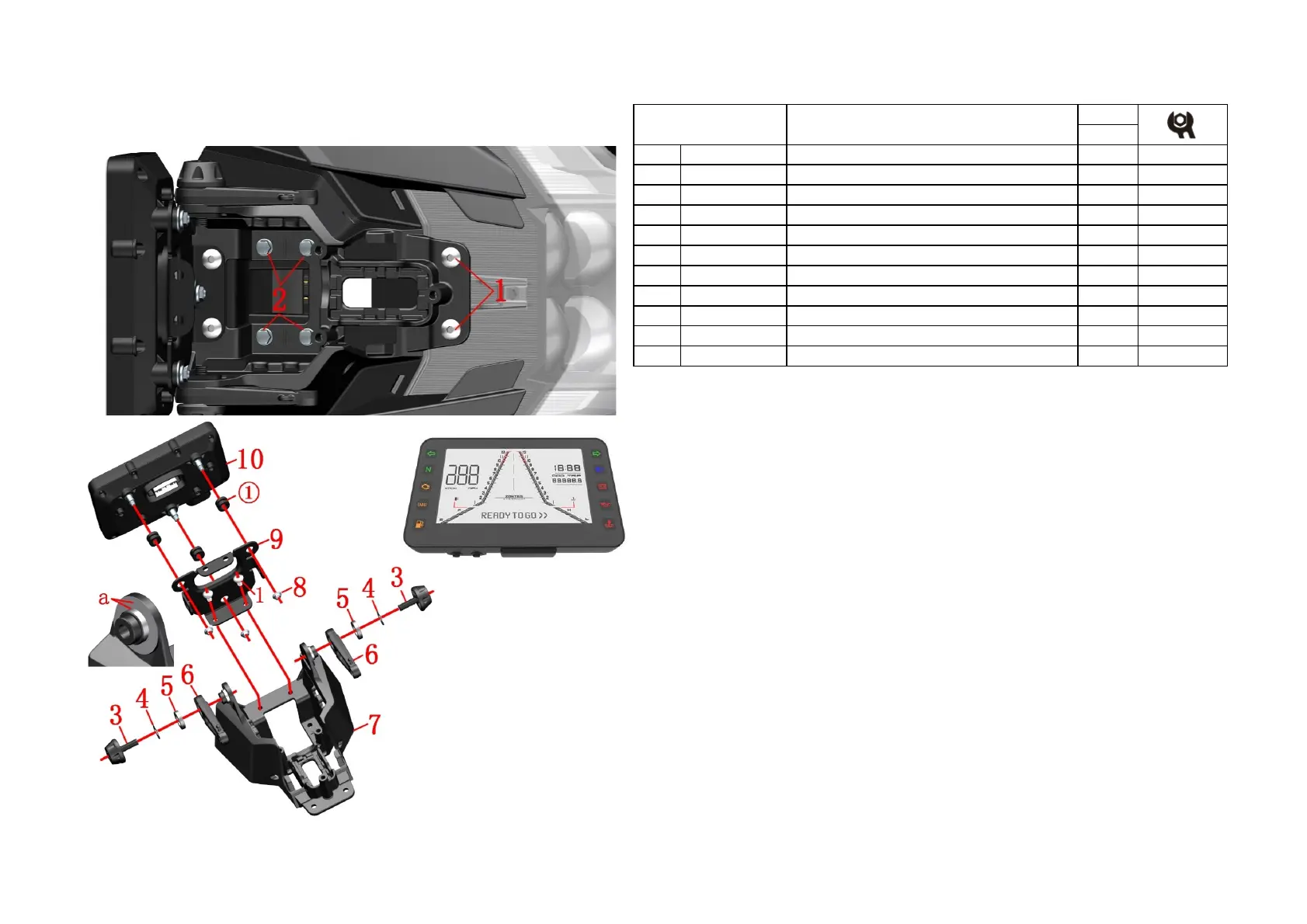

Fig. 12 FRONT FORK
COMPONENT
Head cover aluminum bracket, instrument
component(Electronic Instrument)
PROCEDURE:
●Head cover aluminum bracket, instrument component
Remove the 2 bolts (1) and 4 bolts (2) and remove the hood aluminum bracket and instrument component. Be
careful not to pull the meter cable and the windshield controller cable.
●Windshield rocker arm component
Remove the upper rocker trim (3) with the hex tool and remove the washer (4). Remove the windshield rocker
arm component from the hood aluminum bracket (7). Separate the windshield rocker arm (6) from the bearing
(5).
●Instrumentation components
Remove two bolts (1) and remove the meter and bracket component from the hood aluminum bracket (7).
Remove three nuts (8) and remove the meter (10) from the meter bracket (9). Remove the buffer rubber 1 that
comes with the meter from the meter holder.
CAUTION:
●The vehicle support should be fixed during the disassembly process to prevent accidents caused by dumping.
●Both end faces a of the aluminum cover of the head cover should be greased to reduce the resistance.
●If only the instrument and the bracket assembly are removed, the threaded part of the upper rocker trim block
should be unscrewed until the end face of the thread is flush with the inner end surface of the aluminum cover of
the hood.
