5、FOOT PEDAL COMPONENT 30
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-061093
M6×22 Hexagon flange face bolt full thread 8.8
1
2 1274100-039000
ZT250-S shift lever spline rocker arm 1
3 1250301-020093
GB6170 M6 (environmental color) 1
4 1274200-003000
ZT310-R shift lever adjustment screw φ10×130 1
5 1250301-018093
GB6170 M6-LH (environmental color zinc) 1
6 1274200-160000
ZT310-T shift lever pedal rocker 1
7 1274200-010000
8 1274200-194000
ZT310-T front right pedal assembly (improved) 1

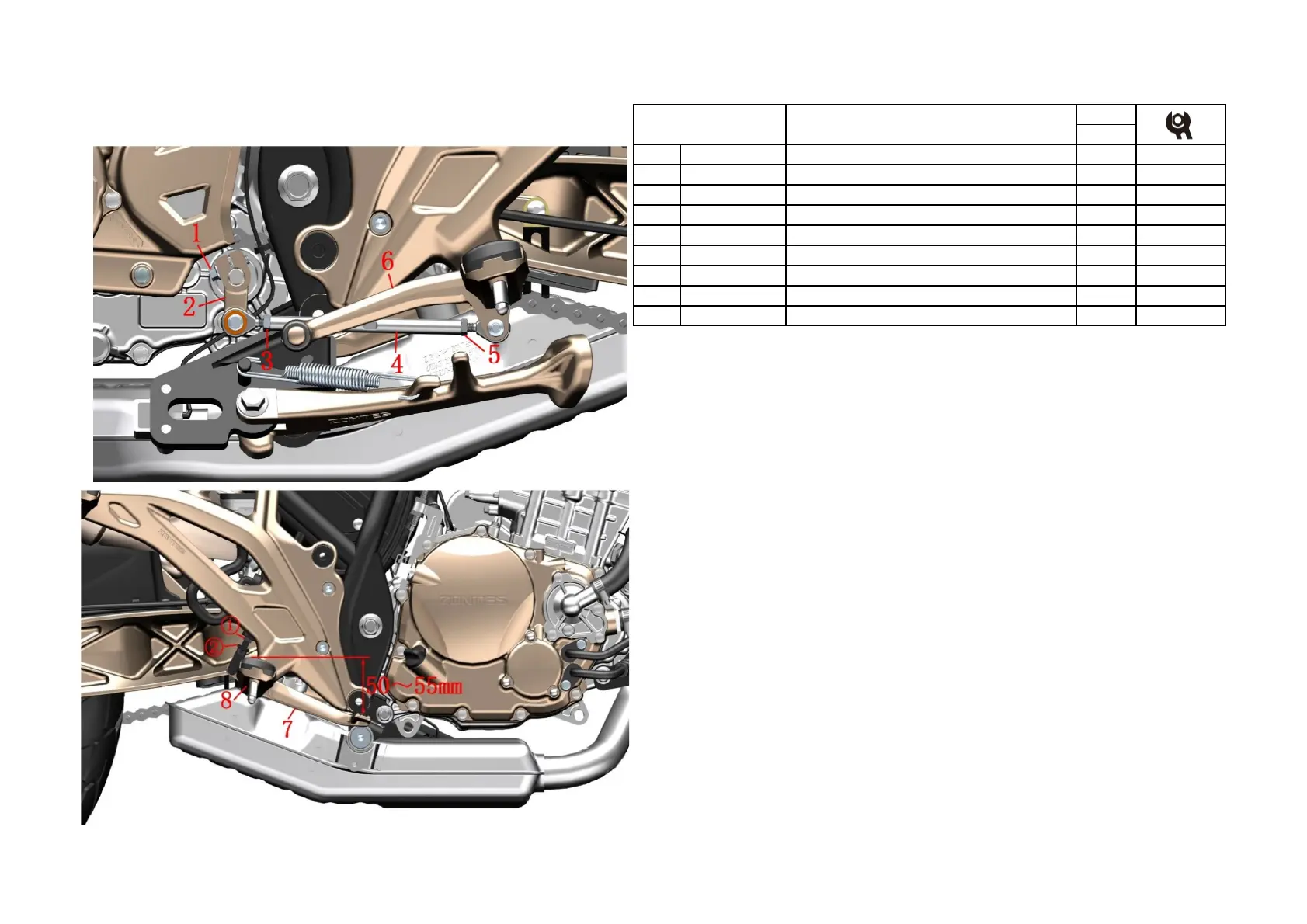

Fig. 1 FOOT PEDAL
COMPONENT
Pedal adjustment
PROCEDURE:
●Variable lever height adjustment
Use an open-end wrench to loosen the nut (3) and the nut (5) to the direction of the arrow. Use an 8# open-end
wrench to adjust the groove position on the adjustable screw to the appropriate height, and then lock the nut. If
it cannot be adjusted to the proper position in the above method, the bolt (1) can be removed. Use a slotted
screwdriver to pull the spline rocker arm (2) in the middle slot slightly and pull it out, adjust it to the appropriate
height and assemble it. Note the groove in the middle of the alignment spline.
●Brake pedal height adjustment
Use an open-end wrench to loosen the nut②to the direction of the arrow. Rotate the adjustable screw①to adjust
the foot pedal position of the brake pedal (7) to 50~55mm below the top surface of the pedal assembly (8). Fix
the adjusting screw① and lock the nut②.
CAUTION:
●The vehicle should be supported during the adjustment process to prevent accidental injury caused by
dumping.
●The height of the shift lever pedal arm should be reasonable, otherwise it will affect the driving experience.
●The height of the brake pedal should be reasonable, otherwise the brake disc and the brake disc will always
rub against the service life, and in severe cases, the brake maybe invalid.
