6、COOLING SYSTEM COMPONENT 38
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251300-056093
M6 Cover type 9 degree nut
3 12±1.5N.m
2 4050954-002000
ZT180MN Engine oil refined filter cover
（
）
3 1051454-004000 55×2.5 O-ring 1
4 1051454-005000 ZT180MN Engine oil refined filter seal ring 1
5 4134200-003000 ZT180 refined filter seal component 1
【
】
6 1050853-009000 Φ16.4×17×1.6 Spring for filter 1

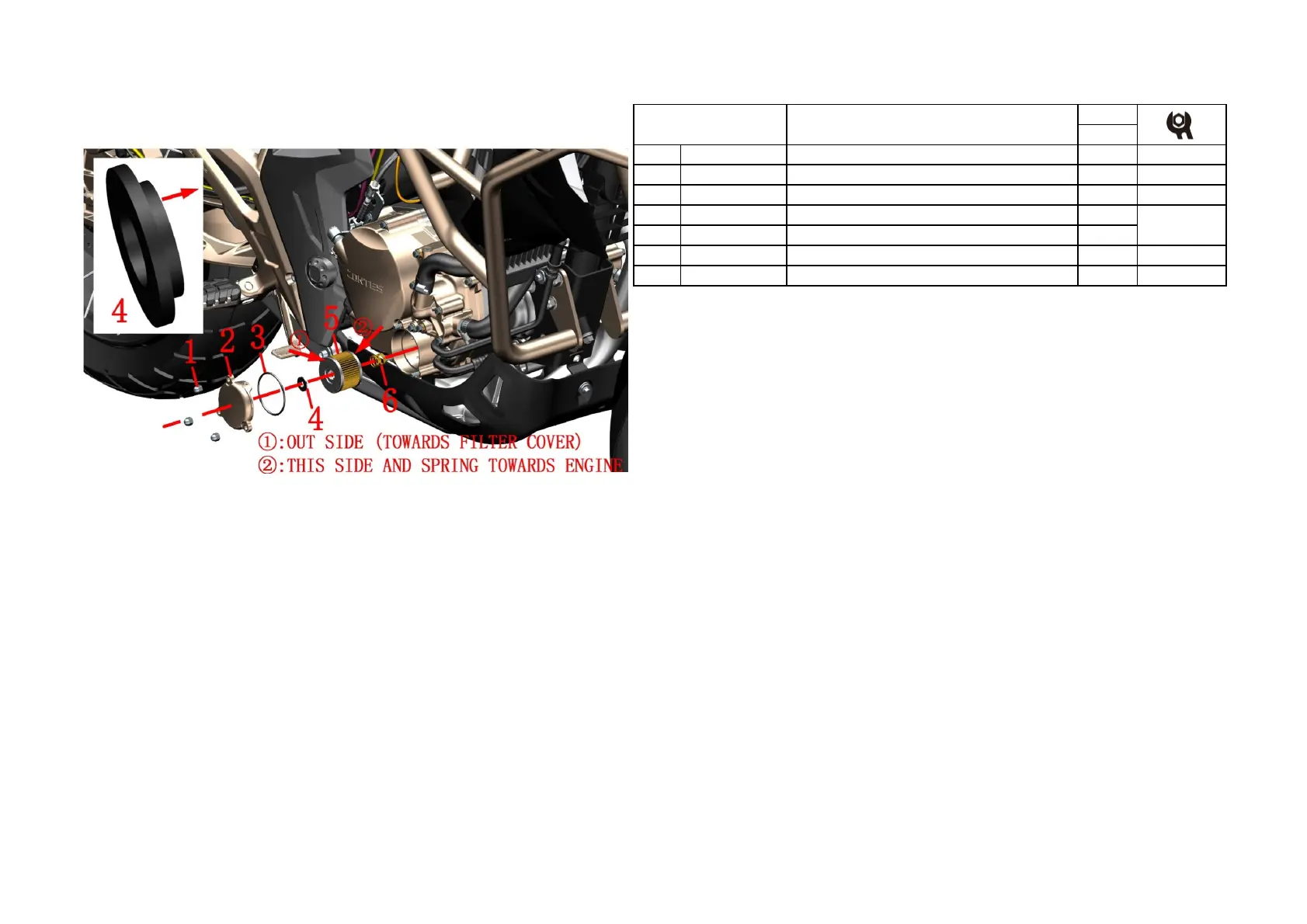

Fig.2 COOLING SYSTEM
COMPONENT
Replace the oil filter
●Change engine oil filter
Disassemble the engine air guider before draining the engine oil is suggested. Otherwise, use a tool to guide the
oil in case it contaminate the plastic covers.
Place holder to collect wasted engine oil under right crankcase cover.
Disassemble nut⑴ with tool. Rotate slightly engine oil refined filter cover⑵ and take it off when it is loosen.
Take off seal ring⑷. Change engine oil filter⑸.
Check if seal ring⑶ is broken. Change the seal ring⑶ along with engine oil filter is suggested.
When reassembling, pleas check carefully if the spring⑹, seal ring⑷ are well installed. Engine oil filter can not
be turned over when assembling.
Torque of cover type nut⑴ is 12±1.5N.m.
CAUTION:
●Ensure every component is well assembled.
●To change engine oil filter and seal ring⑶ at the same time is suggested.
●Engine oil filter can not be turned over when assembling.
●【1】The ZT180 refined filter seal component already included oil filter、55×2.5 O-ring⑶ and ZT180MN
Engine oil refined filter seal ring⑷.
