7、FRONT FORK COMPONENT 68
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224100-025000 ZT250-SM8 bolt decorative buckle 4
2 1250205-023000 GB70.1 Hexagon M8×35 (environmental color zinc) 10
3 1134200-005000 ZT310-R direction press block (homemade) 1
4 1134200-008000 ZT310-T direction 1
5 1251300-045000 ZT250-S upper plate decorative nut (chrome plated) 1
6 1251500-050000 ZT250-S upper plate gasket φ18.5×φ39×1 1
7 Front left shock absorption(Improved version) 1
8 Front right shock absorption 1
9 1174100-001000 ZT250-S reflector 2 after-sales
The letters behind the ZT+4 number on the inside of the bottom
cylinder represent the shock-absorber models, such as “X”, “T40G”.
For example, ZT2003T40G: "ZT" stands for ZONTES, "2003"
stands for March 2003, and "T40G" is the shock absorber model.

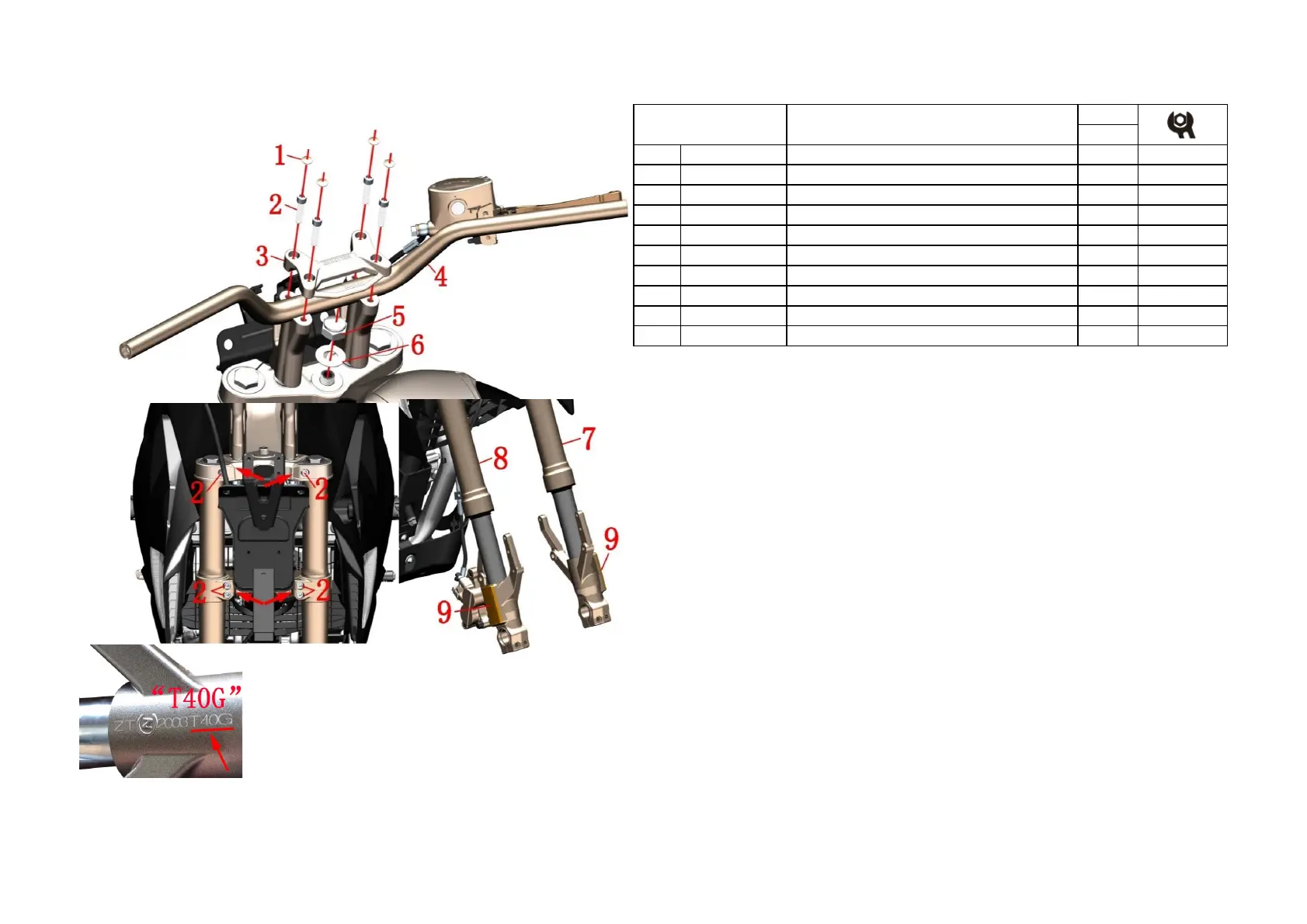

Fig. 25 FRONT FORK
COMPONENT
Hand bar component
PROCEDURE:
●Directional components
Use a blade to pick up the decorative buckle (1), hold the direction handle (4) in one hand, and remove the bolt
(2) with a hexagonal tool in one hand; remove the clamp (3) and finally remove the direction handle (4).
●Uplink board component
Locate the faucet lock plug and remove it; remove the nut (5) and remove the shims (6). Remove the upper plate
bolt (2).
●Front left and right shock absorption
Remove the bolts (2) on the lower joint plate, hold the shock absorber in the middle with one hand, and insert a
slotted screwdriver into the slots of the upper and lower joint plates to slightly enlarge the slot gap, and separate
the left shock absorber (7) and the right shock absorber (8). under. Remove the upper plate component.
●Reflecting film
The reflector is replaced by a spare part for sale (no replacement shock absorption). The heat-reflecting sheet can
be moved back and forth with a hot air gun to reduce the viscosity of the double-sided adhesive after being
heated. After removing the reflector, the residual glue should be cleaned first.
CAUTION:
●Protect protective measures to prevent scratching the appearance of the material.
●Use a flat-blade screwdriver to enlarge the gap between the upper and lower joint plates without applying
excessive force to avoid damage.
●
The damping state can be distinguished by the lettering inside the front shock absorber bottom tube. The shock
absorber lengths of different models are different and cannot be mixed.
●From April 21, 2020, the front shock absorber of the high seat version has been changed from "T40" to
"T40G".
