4、REAR WHEEL COMPONENT 22
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224200-120000 ZT310 Rear turn signal bracket 1
2 1174200-019000 ZT310－X Rear left turn signal 1
3 1174200-020000 ZT310－X Rear right turn signal 1
4 1174200-021000 ZT310－X License Plate Light 1
PROCEDURE:
●Rear license light
Grip the rear turning light bracket⑴ then disassemble three bolts "d" on the license light⑷.
●Rear turning signal
Disassemble bolts three "b" and one"d" on the diagram left side, and then remove left press line plank of "e"
and press line plank "c",Remove the left turn signal⑵ ;follow the steps above to remove right press line plank of
"a" and press line plank "c". and remove the right turn signal⑶.
CAUTION:
●while reassembling,check there is any pressure on the cable,in case of causing short circuit when tighten the
bolt.
Rear turning light parts for after sales service

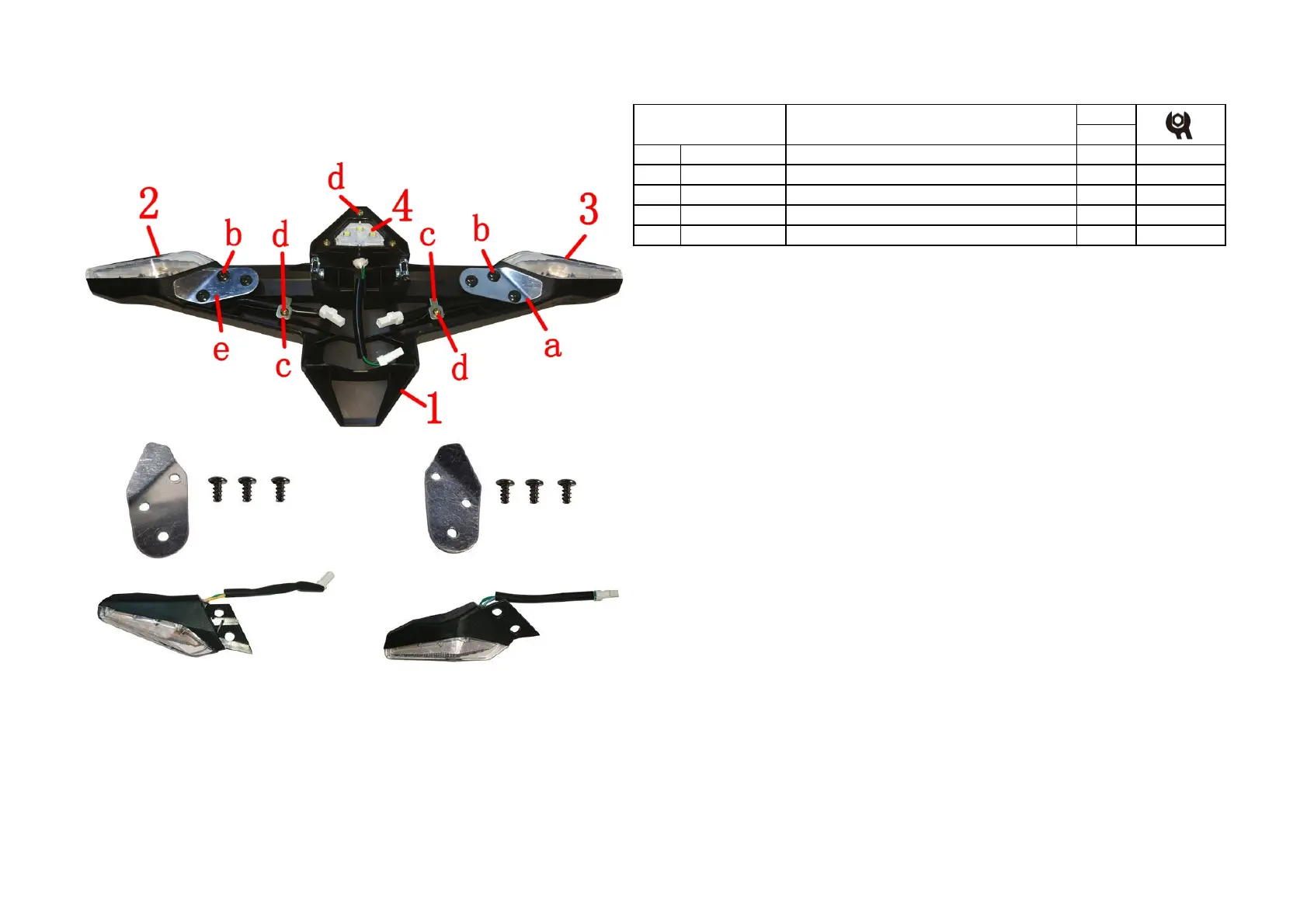

Fig.4 REAR WHEEL
COMPONENT
ZT310－X Rear left turn signal ZT310－X Rear right turn signal
