13、LOWER SHROUD COMPONET 108
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 1
2 1274100-007000
－
S Flanging bushing(φ6.4×φ9×6
＋
3 1244100-004000
－
S Flanging bushing buffer
3
4 1274200-067000
－
T front bracket of lower shroud
1
5 1224200-101000
－
PROCEDURE:
●Front bracket of lower shroud
Hold the front bracket of lower shroud tightly (4),remove bolt (1) and flange bushing (2).
●Lower shroud component
Remove 3 units of the flange bushing buffer rubber (3) from lower shroud (5).
CAUTION：
●The shroud should be supported during disassembly to prevent fracture due to uneven force.

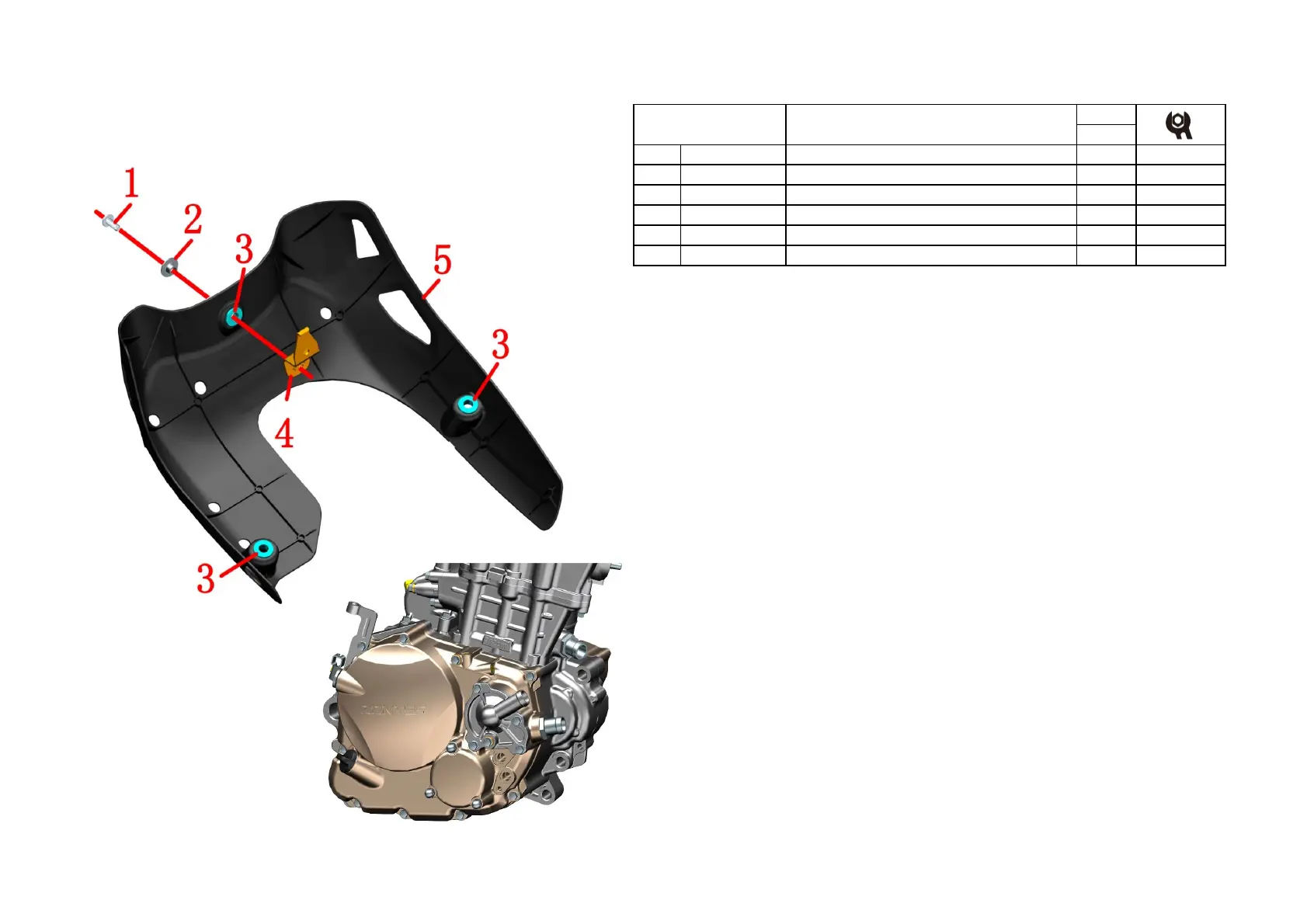

Fig.3 LOWER SHROUD
COMPONENT
Light-clutch version lower shroud component
