11、CUSHION COMPONENT 102
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1 1200100-462000
ZT310
－
T cushion(2021 model)
1 one set
2 1244100-024000
ZT250
－
S Cushion front rubber
2
3 1244100-022000
ZT250
－
S Cushion rubber
4
4 1244100-025000
ZT250
－
S Cushion round rubber
6
PROCEDURE：
●Remove seat cushion
Press the unlock button" ", After the power-on self test is completed, press the "SEAT" button briefly to
open the electronic cushion lock.
Grasp the seat cushion⑴ and pull it diagonally upwards. At the same time, remove the cushion by moving the
rear part of the cushion from side to side.
●Assembly cushion
When assembling the cushion, check whether all the cushion rubbers are complete. Insert the front part of the
cushion first. After the assembly is in place, shoot the rear part of the cushion firmly. When you hear the
"click"sound, it indicates that the cushion lock has been assembled.
●Cushion rubber assessory
The corresponding installation position is shown in the lower left Figure.
CAUTION:
●The motorcycle should be fixed before operation.
●Cushion contains all cushion rubber and locks, bolts.
●Cushion can cause accidents if it is not installed properly.

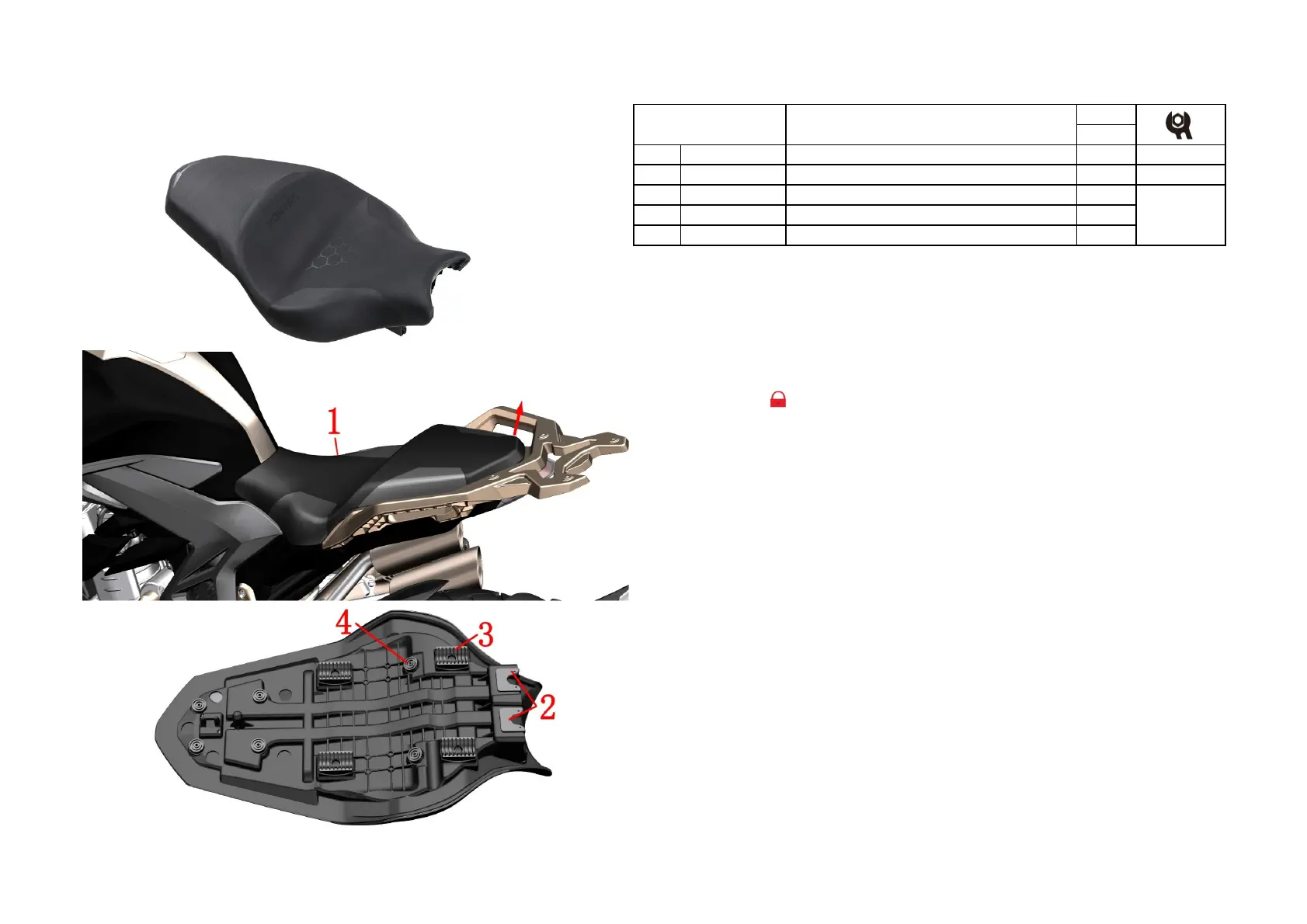

Fig.1 CUSHION
COMPONENT
Cushion component
only for
after-sale
service
2021 model
