Zontes ZT310-T EURO IV User Manual

10、REAR COVER COMPONENT 93
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224200-086000
ZT310
－
T Electrical device box cover
1
2 1184200-024000
ZT310
－
R Side bracket relay
1
G8HN-1C4T-RJ
3 1184100-017000
ZT250
－
S EFI relay
3 KH-1A4T
4 1050954-019000 MT05.2 Engine Controller - Model ZT310-RC4 1
5 1184100-010000 ZT250-S Start relay 1
6 1184200-016000 ZT310 PKE buzzer 1

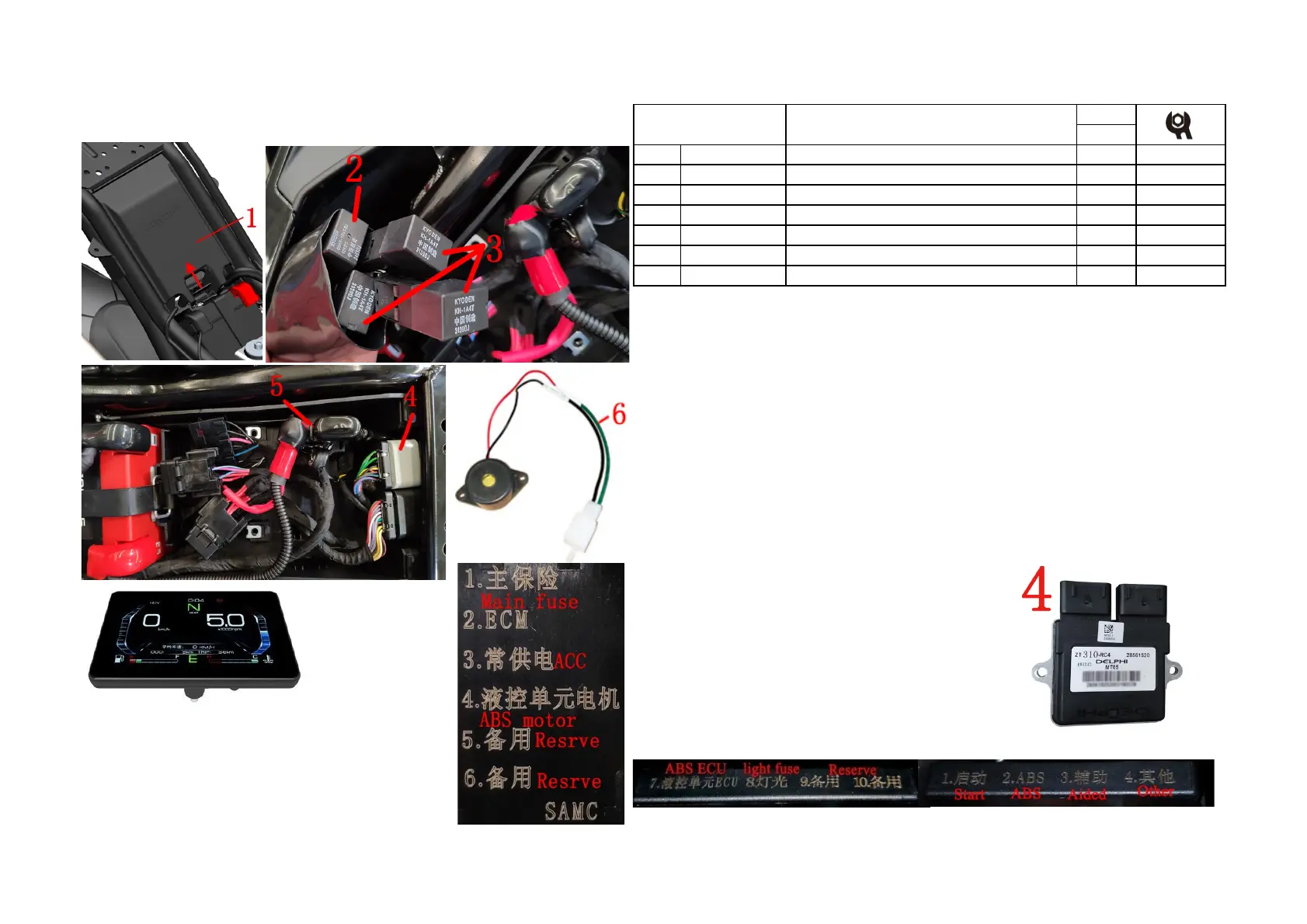

Fig 7 REAR COVER
COMPONENT
Electrical component box component (TFT Instrument)
PROCEDURE:
●Electrical device box cover
Pull the metal buckle of the electrical device box cover (1) in the direction of the arrow, pull it down, remove it.
●Relay
Pull up the cable and unplug the side stand relay (2) and the EFI relay (3).
Turn off the positive and negative.
protective rubber caps (red for the positive and black for the negative) of the starter relay (5). Remove the
positive and negative connectors by unscrewing the nut, and screw the nut back onto the relay stud to prevent
loss.
Find the starting relay and main cable connector unplugged.
●Engine Control Unit（ECU）
Hold the ECU (4) connector① in the direction of the arrow and separate the ECU (4) from the main cable.
●Fuse box
Three pcs fuse box cover with corresponding instructions.
●PKE buzzer
Remove the PKE buzzer (6). Clean up the remaining offset.
CAUTION:
●Do not pull the cable directly.
TFT Instrument
