7、FRONT FORK COMPONENT 67
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1194100-002000 ZT250-S right rear view mirror 1
3 1134100-032000 ZT250-R right hand rocker arm (machine plus) 1
4 1244100-042000 ZT250-R right hand rubber sleeve 1
1184200-022000 ZT310-X right hand switch Stop selling
1184200-140000 ZT310-X1 right hand switch New
1184200-086000 ZT310-X right hand switch(TFT) Stop selling
1184200-145000 Second Generation Right Handlebar Switch (TFT) New
1184200-023000 ZT310-X right hand switch Stop selling
1184200-151000
Second Generation Right Handlebar Switch (Liquid crystal)
New
7 1250205-031091 GB70.1 M6×30 (stainless steel) 2
8 1154200-003000 ZT310-X throttle oil line 1
9
1154200-004000 ZT310-X throttle return line 1
Old

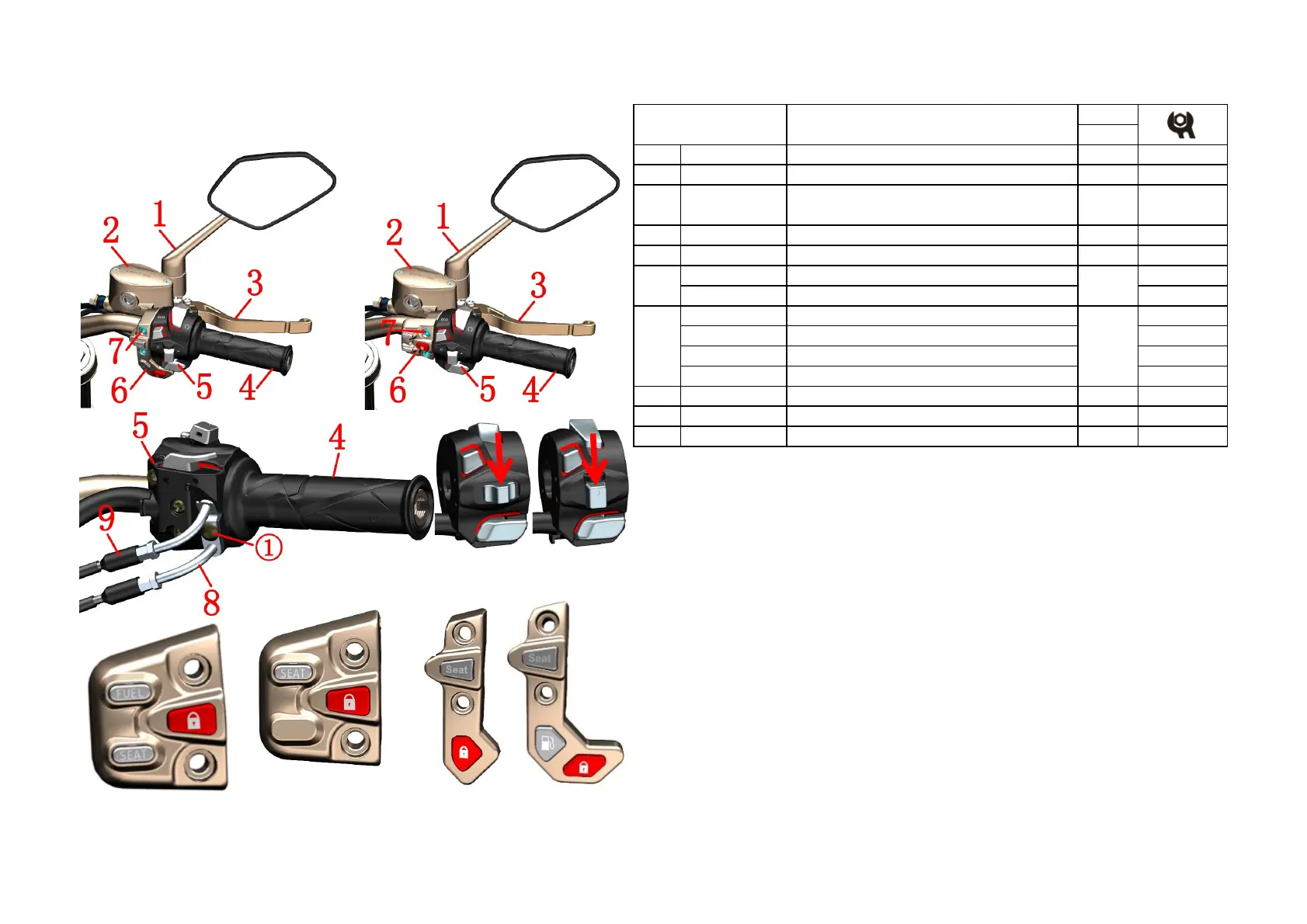

Fig. 24 FRONT FORK
COMPONENT
Right hand component
1
15
6 1
2
Second Generation Right
Handlebar Switch (TFT)
Second Generation Right
Handlebar Switch (Liquid
crystal)
PROCEDURE:
●Right hand handle component
Remove the right rear view mirror (1) by referring to the method of removing the left-hand view mirror from the
previous page.
Locate and unplug the cable of the right handle switch (5) and sub switch (6).
First remove the bolt (7) and remove the sub-switch (6). Pay attention to keeping the side of the “ZONTES” on
the front disc brake main pump (2) horizontally to prevent the air from entering the brake hose and causing the
brake to fail.
Refer to the procedure for replacing the throttle line in the front to remove the right hand switch (5), the throttle
refueling line (8), the return line (9), and the right hand grip (4).
The front disc brake main pump (2) and the rocker arm (3) are decomposed by referring to the step of adding the
brake fluid.
CAUTION:
●The vehicle's horizontal support should be fixed before checking.
●Check that the fluid level of the brake fluid is between 3/4 of the “observation window”.
●Do not flush the oil cup directly with high pressure water.
●When assembling the balance block, the convex parts at both ends of the elastic piece should be aligned and
the upper fixed hole should be inserted into the hole.
●The seam between the main disc and the sub-switch of the front disc brake should be aligned with the triangle
on the right-hand switch.
●Old switch can be replaced as new models.
New
ZT310-X right hand
switch(TFT)
ZT310-X right hand
switch
1100300-044000
ZT125T front disc brake main pump component
(without handle)
