5、FOOT PEDAL COMPONENT 35
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1274200-195000 ZT310-T front left pedal component(improved) improved
1274200-071000
ZT310-T front left pedal component
old models
2 1264100-003000 ZT250-S front left foot torsion spring 1
3 1274100-012000 ZT250-S foot pin 1
1274100-035000 ZT250-S foot support
1271200-161000 ZT250-S foot support(Dark gray)
5 1264100-006000 ZT250-S pedal circlip 1
6 1250303-010093 GB6177.1 M6 (Environmental Color) 2
1274200-160000 ZT310-T shift lever pedal rocker
1271200-162000 ZT310-T shift lever pedal rocker(Dark gray)
8 1274100-043000 Rod end joint bearing SALJK6C 1
9 1250301-018093 GB6170 M6-LH (environmental color zinc) 1
10 1274200-003000 ZT310-R shift lever adjustment screwφ10×130 1
11 1250301-020093 GB6170 M6 (environmental color) 1
12 1274100-042000 Rod end joint bearing SAJK6C 1
13 1251100-061093 M6×22 hex flange bolt full thread 8.8 2
1274100-039000 ZT250-S shift lever spline rocker arm
1271200-163000 ZT250-S shift lever spline rocker arm(Dark gray)
15 1244200-036000
ZT310-T pedal rubber sleeve
1
16 1274200-051000
ZT310-X foot rubber sleeve fixing piece
1
1274200-194000 ZT310-T front left pedal
4064200-011051 ZT310-T front left pedal(dark gray matte)
18 1250205-038000
GB70.2 M5×12 (stainless steel)
1
19 1274200-254093 BushingΦ12×Φ6×19(environmental color) 1
20 1251100-224000 Non standard ball head bolt M6×26 1
21 1250501-010000 GB93φ6 spring pad 1
1 1
4064200-014051
ZT310-T front left pedal component(improved/dark
gray matte)

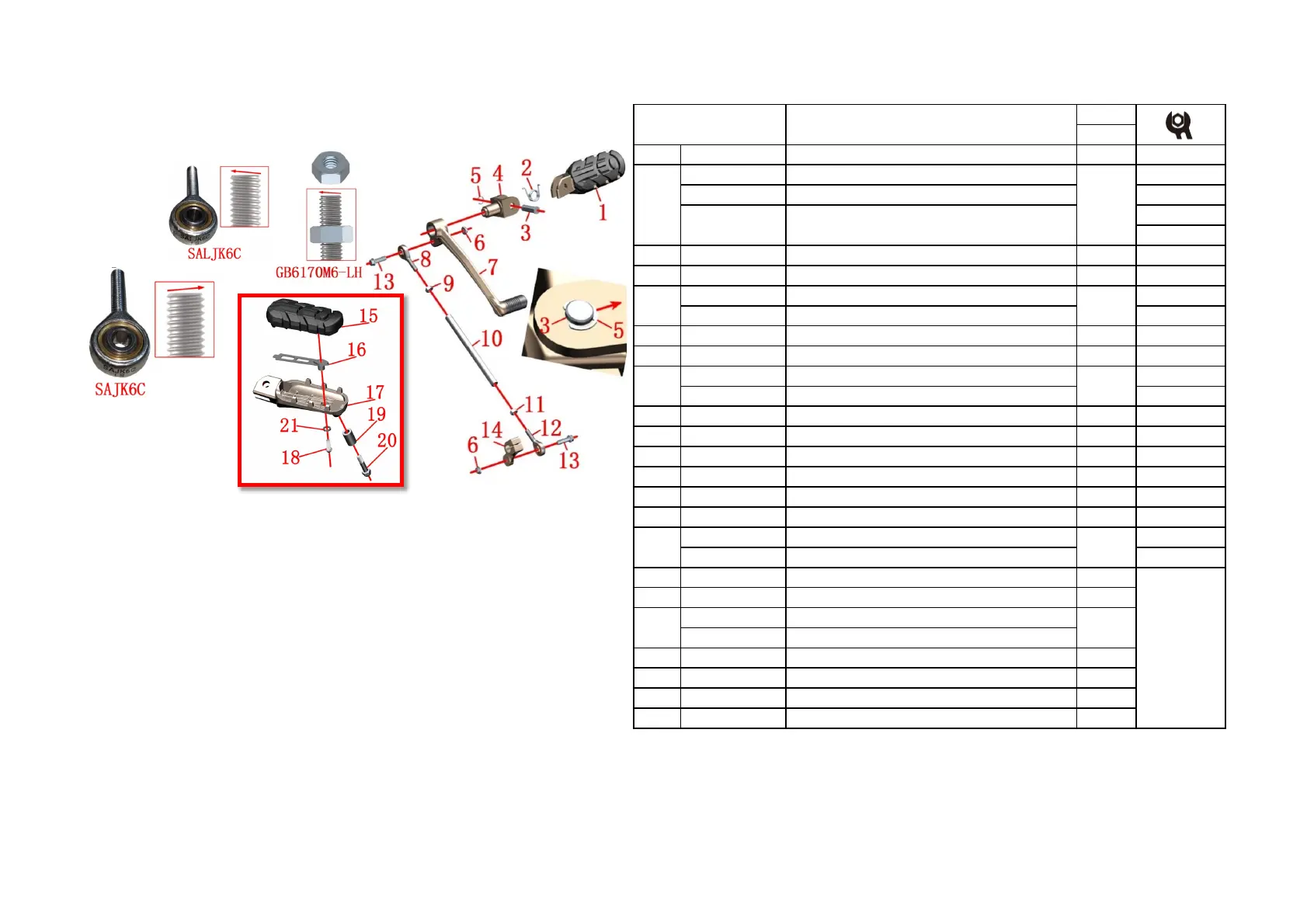

Fig. 6 FOOT PEDAL
COMPONENT
Left footrest component-2
4 1
7 1
17 1
Improved models foot pedal assembly
14 1
Foot sales parts
PROCEDURE:
●Left pedal component
Use the tool to remove the circlip (5), remove the pedal pin (3), and then remove the front left pedal
assembly (1) and the pedal torsion spring (2) from the support (4).
●Shift lever component
Remove the nuts (6) and bolts (13) at both ends with the sleeve, and remove the shift lever rocker arm
(7) and the spline rocker arm (14). Use the open-end wrench to loosen the nuts (9) and (11) separately,
remove the adjusting rod (10), and then separate the joint bearings (8) and (12).
●Foot aftersales service parts
Grasp the front left pedal assembly and remove the bolt (18) and spring pad(21) .Remove the rubber
sleeve (15) and the fixing piece (16). Remove the bolt(20), then take off the bushing(19).
●Since 20th Mar 2020,add a GB93φ6 spring
