Zontes ZT310-T EURO IV User Manual

7、FRONT FORK COMPONENT 69
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1134200-013000 ZT310-X hamdle bar block component 2
2 1274200-018000 ZT310-R upper plate gasket 4
3 1244200-008000 ZT310-R upper plate buffer rubber 4
4 1251700-065000 ZT310-R bushing φ10×φ12×41 2
5 1134200-004000 ZT310-R uplink board (homemade) 1
6 1251300-057093 Non-standard nut M10×1.5 (Dacro) 2 40N.m
7 1274200-105000 ZT310-T left wiring bracket 1
8 1250205-040095 GB70.1. Hexagon bolts M8×16 (color zinc) 2
9 1251100-121093 Non-standard bolt M6×25 (environmental color) 2
10 1250501-007093 GB93φ8 (environmental color) 2
1184200-035000 ZT310-X electronic faucet lock (DC) Stop selling
12 1274200-106000 ZT310-T right wiring bracket 1
Stop selling
New

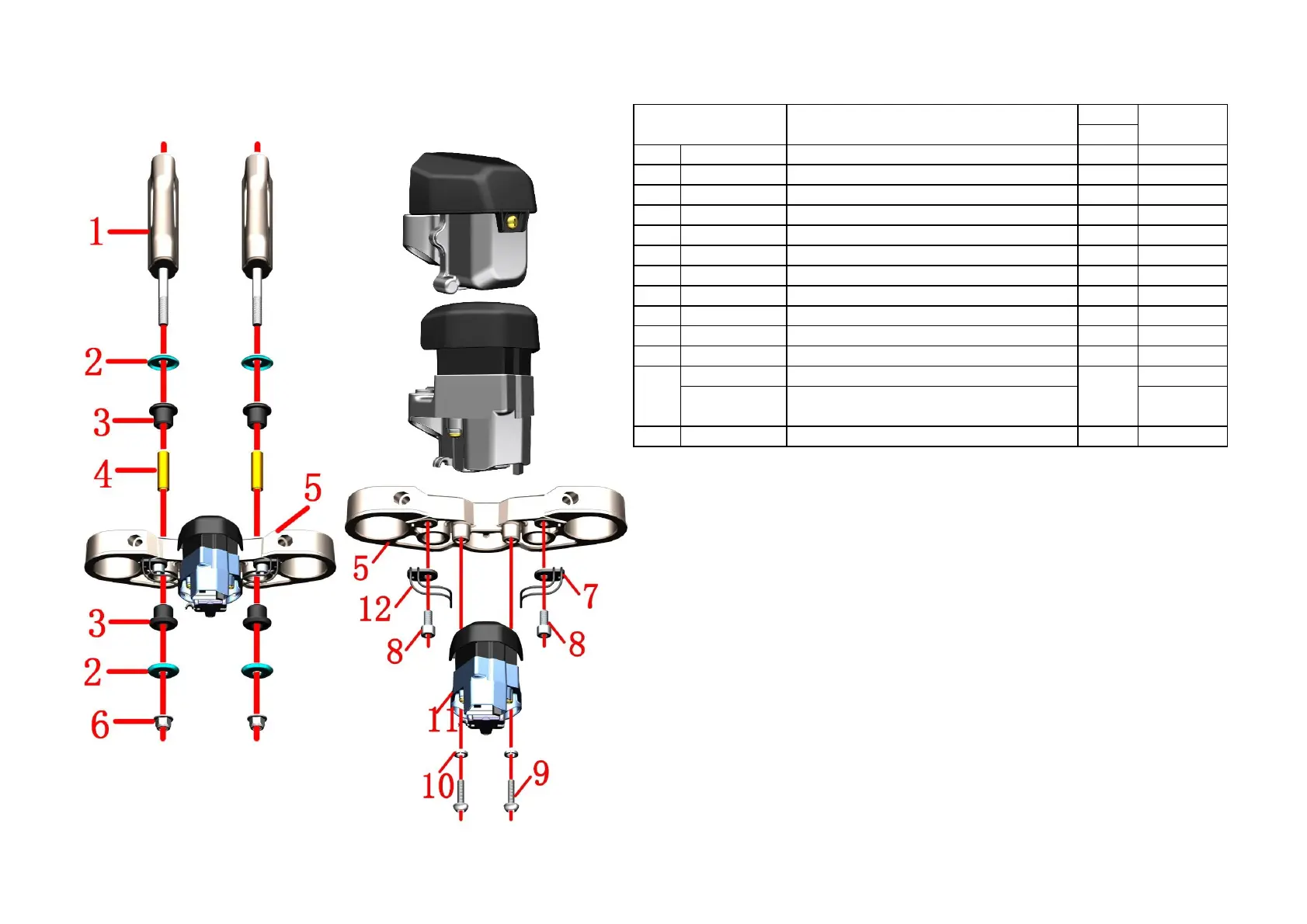

Fig. 26 FRONT FORK
COMPONENT
Uplink plate, handle bar component
1
PROCEDURE:
●Uplink plate and spacer component
In order to facilitate the direction of the block, it is recommended to assemble the direction and the upper block
first to prevent the block from rotating during the disassembly process. The direction should be wrapped with
cotton or other soft materials to prevent scratching the paint surface.
Remove the nut (6) and remove the gasket (2), cushion rubber (3), and bushing (4). Remove the upper plate
component.
The spacer (1), the upper clamp and the direction handle are disassembled.
●faucet lock
Remove the bolt (9) and remove the spring washer (10) and the faucet lock (11). Two pieces of spring pad (10)
will be added from October 31, 2018.
Remove the bolts (8) and remove the left wiring bracket (7) and the right wiring bracket (12).
CAUTION:
●Protect protective measures to prevent scratching the appearance of parts.
●When reassembling the faucet lock, be sure to align the limit boss with the groove on the upper plate.
●
When reassembling, it is necessary to use the direction to ensure that the center and direction of the spacers on
both sides are coaxial with the center. First install 4 pieces of cushioning rubber into the upper plate and then
install the bushing separately. Make sure that the bushing is flush with the cushioning rubber, otherwise it should
be reassembled. When tightening the nut, ensure that the torque is 40N.m. Check the buffer for spillage and
reassemble if necessary.
●Old faucet lock can be replaced as new models.
11
1184200-138000
ZT310 faucet lock (electromagnetic/line 450) assembly
