3、INTAKE SYSTEM COMPONENT 15
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1 1244200-017000
－
R Air filter large air inlet
1
2 1224200-171000 ZT310-T1 Air Filter (Bosch) 1
3 1251100-101000 Non-standard bolt M6×12（304stainless steel） 4
4 1251300-063093 Plywood M6×11×15（Environmental protection） 5
5 1051354-004000 Φ56×10 Hoop assembly 1
6 1050954-035000 ZT310-R Fuel injector high pressure oil pipe unit 1
CAUTION:
●high-pressure fuel pipe
First press the high-pressure fuel pipe (6) close to the snap ring on the fuel pump connector and pull it out
directly. A small amount of fuel in the fuel pipe needs to be filled with an oil can to prevent fuel from
dripping onto any parts. Then press the ring near the throttle body to pull out the high-pressure fuel pipe,
as shown in the lower right figure. Strictly prevent smoke and fire during disassembly.
●Air filter
First remove the bolt (3); loosen the hose clamp assembly ⑸ on the side of the air filter, clamp the clamp
on the exhaust pipe with pliers and pull out the exhaust pipe connecting the exhaust port of the engine,
and then use the glue that was distributed with the bike . Plug it properly to prevent foreign matter from
entering and damaging the engine. Remove the air filter ⑵, splint nut ⑷; finally pull out the air inlet ⑴.

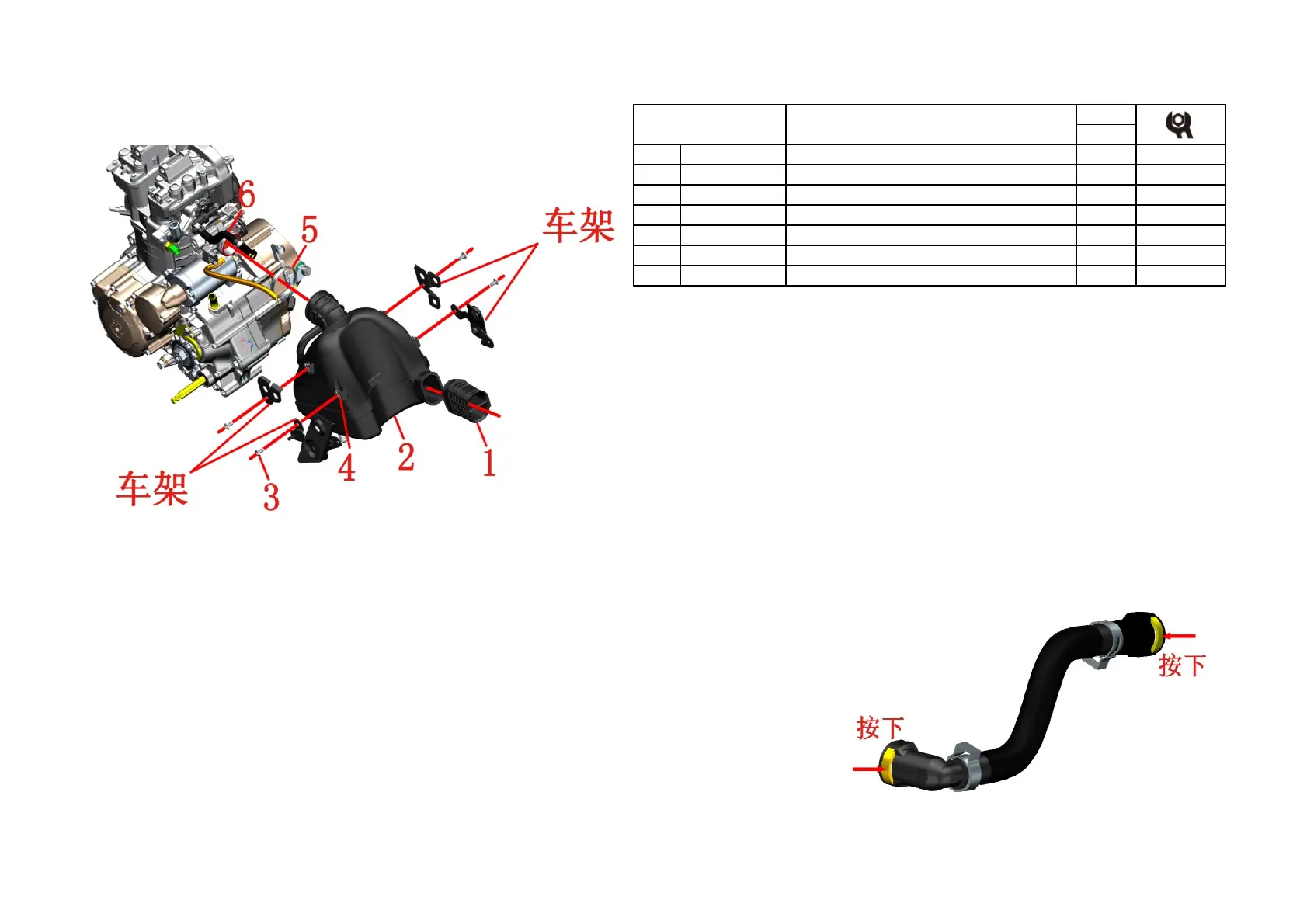

FIG.2 INTAKE SYSTEM
COMPONENT
Intake system component(Bosch) 1
CAUTION:
●First it need to remove the cushion,side cover,oil tank outside cover and liner,rear shock absorber and
electrical device box etc.
●When removing the high pressure oil pipe,It is sure to operate until the engine and muffler are completely
cooled.
●Fireworks, answering or dialing should be strictly prohibited near the car-breaking site to prevent accidents.
Frame
Frame
