4、REAR WHEEL COMPONENT 20
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1020242-263021 Rear auxiliary mud plate aluminum alloy bracket 1
2 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 5
3
1224200-090000 Rear auxiliary mud board retaining plate 1
4 1250105-137093 GB5789M6×16 (environmental color) 4
5 1250501-007093 GB93φ8 (environmental color) 5
6 1274100-057095 Flanging bushing φ6.2×φ8.4×3.5+φ14×1.5 5
7 1244100-052000 Cuff bushing cushioning rubber (φ8.5×φ14×1) 5
8
1251100-101000 Non-standard bolt M6×12 (304 stainless steel) 8
9 1270300-039000 HJ125-6 rear license plate bracket 1
10 1250303-010093 GB6177.1M6 (environmental color) 2
11 4024200-102000 ZT310-R rear sub-plate iron bracket (Improvement) 1
12 1184200-030000 ZT310-R sub-mud board adapter cable (L=2000) 1
13
4024200-036000
ZT310-V rear auxiliary fender iron support rear section
1
14 4024200-101000 ZT310 rear auxiliary fender iron support front section 1

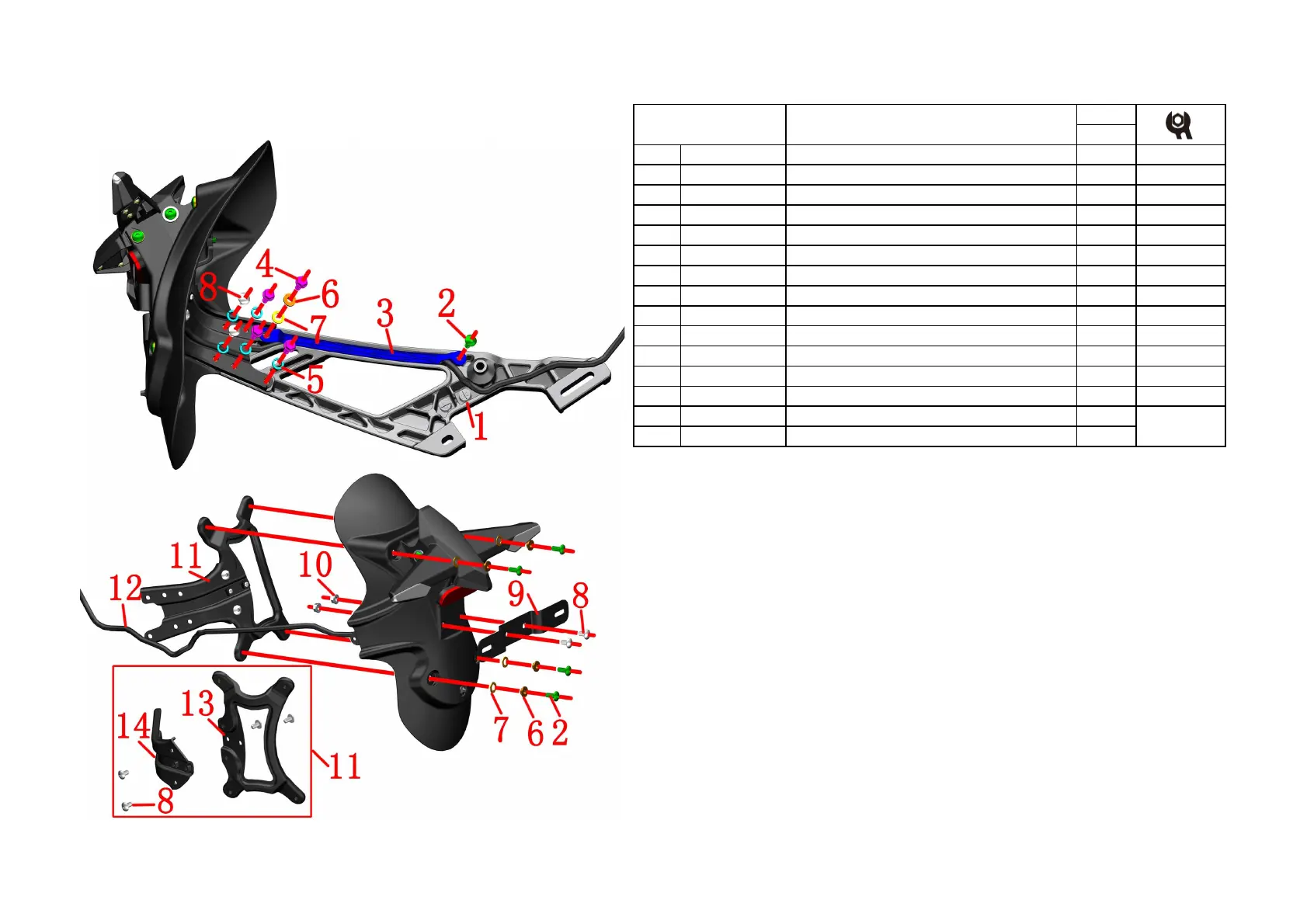

Fig.2 REAR WHEEL
COMPONENT
Rear sub mudguard component 2
after-sale
PROCEDURE:
●Retaining plate
Remove the bolts⑵and ⑷, remove the flange bushing ⑹ the rubber pad⑺, and finally remove the retaining
plate⑶.
●Aluminum alloy bracket
Remov
e the 2 pcs of bolt⑻ and 3 pcs of ⑷ ，then remove 5 pcs of spring washer⑸.
●Back license plate bracket assembly
Remove the bolt⑻ and nut⑽ at the license bracket⑼ and remove the license bracket⑼.
●Rear auxiliary mud plate iron bracket
Hold the rear turn signal assembly, remove the bolt⑵, and remove the flange bushing⑹ and rubber pad⑺.
Remove the rear sub-mud iron bracket⑾and rear turn signal assembly.
The old one-piece iron bracket has been discontinued, and the integrated iron bracket assembly ⑾ needs to
be replaced. The assembly already contains the front section ⒁, the rear section ⒀ and 4 bolts ⑻.
CAUTION:
●Do not pull the cable hard when removing the sub-mud switch.
●
When reassembling, first check if there is any pressure on the wire to prevent short circuit when tightening the
bolt.
