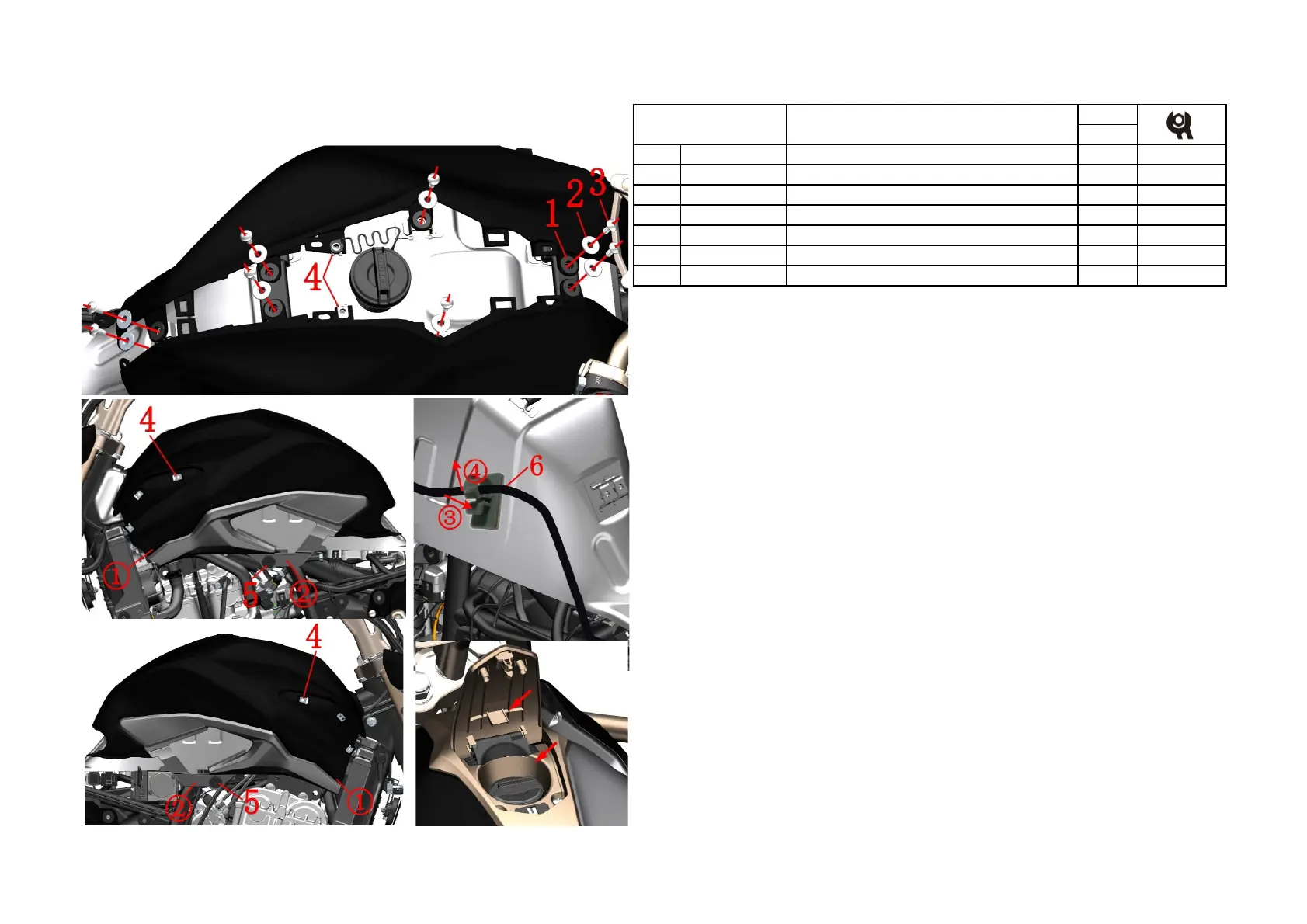

8、FUEL TANK COMPONENT 80
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1244100-004000 ZT250-S Flanging Bushing Buffer 8
2 1274100-007000
－
S Flanging bushing(φ6.4×φ9×6
＋
3 1251100-102000 Non-standard bolt M6×16 (304 stainless steel) 8
4 1251300-063093 Splint M6×11×15 (environmental color) 8
5 1244100-002000 ZT250-S side cover round glue 2
6 1224200-066000 ZT310PKE external antenna mount 1
PROCEDURE:
●Fuel tank component
Remove the four bolts (3) of the left tank cover and remove the bushing (2) and cushion rubber (1).
Pull out the two parallel antennas at ① and ② respectively to find the external antenna mount (6). Press ③ and
then pull the ④ toward the arrow to remove the PKE cable. Then remove the left tank component.
Remove the splint (4) and the side cover round (5) from the left tank component.
Follow the steps above to remove the right tank component, as well as the splint and side cover round.
CAUTION:
●The left and right side covers, the middle cover component and the seat cushion must be removed in advance.
●The material should be protected during the disassembly process to prevent damage to the paint surface.
●When removing and installing the staples, use parallel force to prevent damage to the staples.
Fig. 7 FUEL TANK
COMPONENT
Small fuel tank versiong fuel tank component 1
