Zontes ZT310-T EURO IV User Manual

9、SIDE COVER COMPONENT 86
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1224100-010000 ZT250-S Expansion nail 2
4044201-142052
Right side cover (dark gray light/applique black/T310)
【
2
】
4044201-148051
Left side cover (dark gray matte/decal black /T310)
【
1
】
4044201-141052
Left side cover (dark gray light/applique black/ T310)
【
2
】
4044201-461052
Left side cover (dark gray light/applique stripes /T310)
【
4
】
4 1210342-034000 ZT310-R left side cover applique (black/T310) Stop selling
5
1210342-472000
ZT310-R left side cover applique( black/stripes/T310)
New
6 1210342-035000 ZT310-R right side cover applique(black/T310) Stop selling
7 1210342-471000
ZT310-R right side overapplique(black/stripes/T310）
New

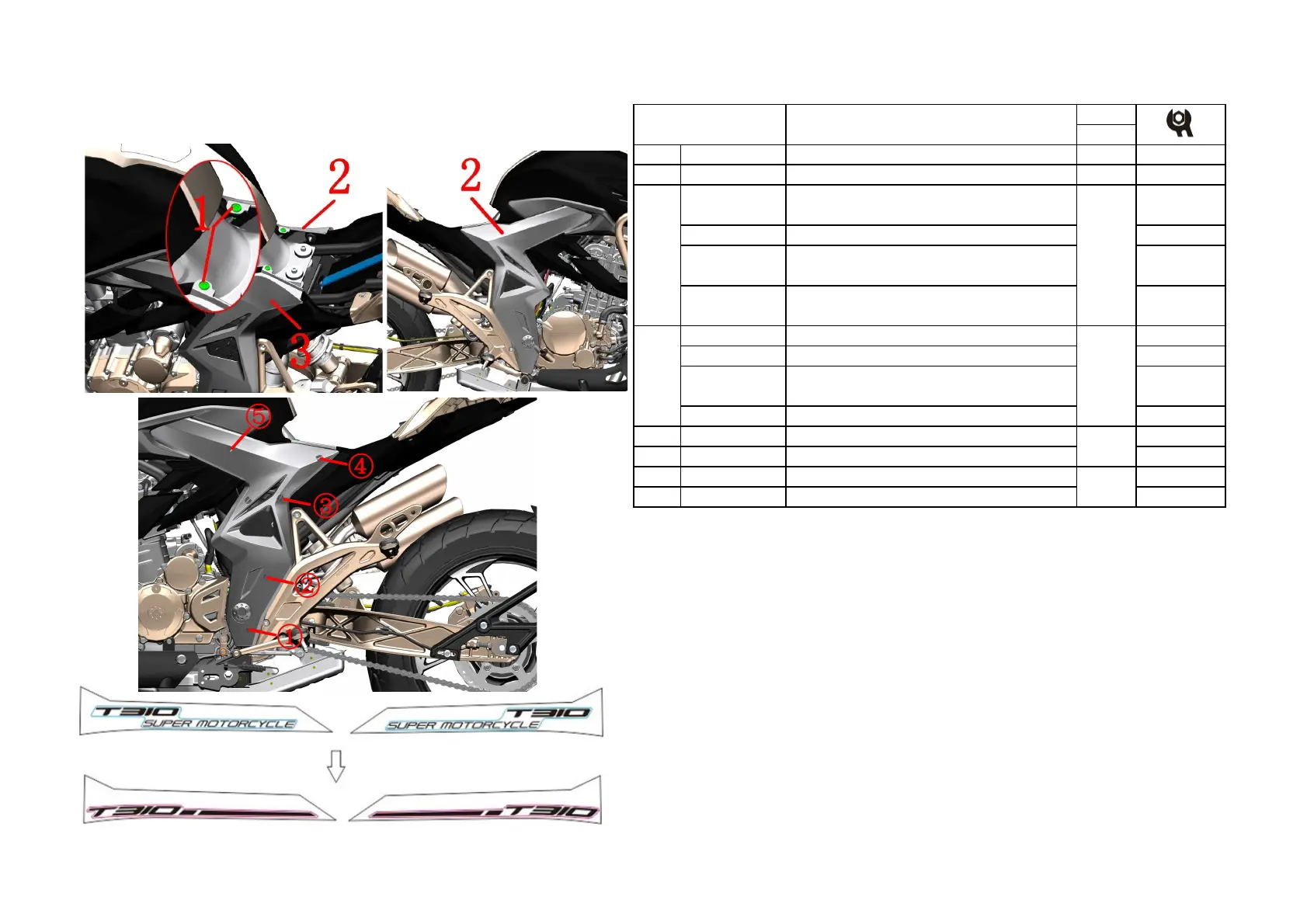

Fig. 1 Side cover
component
Side cover component
4044201-149051
Right side cover (Dark gray matte/applique
black/T310)
【1】
2 1
4044201-462051
Right side cover (Dark gray matte/applique
stripes/T310)
【3】
4044201-462052
Right side cover (dark gray light/applique stripes
/T310)
【4】
4044201-461051
Left side cover (Dark gray matte /applique stripes
/T310)
【3】
PROCEDURE:
●Side cover component
Press the middle part of expansion nail with Small Phillips screwdriver(As shown in left Fig. C), then remove
the expansion nail (1).
Pull out staples by stretching your hand into the gap, first pull out the staples at ①-②-③.
One hand stretch the upper part of side cover and the other hand stretch the front part of tail dress, pull out with
force the staple on the ④ of the side cover.
One hand press the position of ⑤, the other hand stretch the back of the side cover and at the same time pull
back hard, then take off the side cover from the oil tank decorative cover.
CAUTION:
●When is installed, first insert the plugs on the head of side cover, fasten the staple on the position of ⑤, then
install the staples from ④ to ① in turn, at last, install the expansions.
●The side cover already contains applique.【1】&【2】 old applique side cover will stop selling ,and it's
recommended to buy a new stripes applique or a side cover【3】or【4】when replacing the side cover.【1】&
【3】for Special black vehicle;【2】&【4】for bright blue or bright orange vehicle.
Old
New
3 1
1
1
Left applique
Right applique
