4、REAR WHEEL COMPONENT 24
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1251100-085093 Non-standard bolt M10×1.5×75（Dacro） 1
2 1251100-060000 Non-standard bolt M10×1.5×90（Dacro） 1
1114200-020000
－
X Rear shock absorber (improved)
a
1114200-019000
－
T Rear shock absorber (improved)
b
4 1251300-057093 Non-standard bolt M10×1.5（Dacro） 2 45±5N.m
PROCEDURE:
●Rear shock absorber
After the side bracket is lowered, one person's left hand will kill the direction to the left while the right hand
grips and the foot pedals to tilt the vehicle to the left; the other person uses a wooden bench to press the muffler
installation point on the right side of the vehicle (as shown in the lower left figure) to support the vehicle. The
wheel is slightly off the ground. After the vehicle is supported, one person uses the sleeve to hold the heads of the
bolts ⑴and ⑵ respectively, and one person removes the nut ⑷ with a sleeve.
Person 1 shakes the rear wheel up and down slightly . Person 2 drags out bolt⑵.
Person 1 holds the motorcyclefirmly . Person 2 lifts the rear shock absorber⑶ towards the arrow direction and
drag out bolt⑴. Take off the rear absorber at last.
●Adjust the rear absorber
Use hook wrench to loosen adjustable nut① and rotate adjustable nut②. If the nut is rotated towards the arrow
direction, the spring becomes harder. Conversly, the absorber is softer. Tighten the adjustive nut① until the
absorber is under suitable status. Please adjust in a reasonable range, riding experience would be influenced by
either the absorber is too soft or too hard.
CAUTION:
●Disassemble cushion,side cover,right side cover, bolts on front parts of rear skirt and rear inner fender.
●Use suitable tool to support the motorcycle. Avoid accidents caused by falling down. Single person operate it
is prohibited.
●All the standard parts need to reach standard torque while reassembling.
●It can be distinguished by the lettering in the front left or front right shock absorber. "a" is the front shock
absorption lettering corresponding to the short seat version is “ZT****X”, "b" is the high seat version
corresponding to the lettering “ZT****T40”, and 4 “*” represents the production year and month.

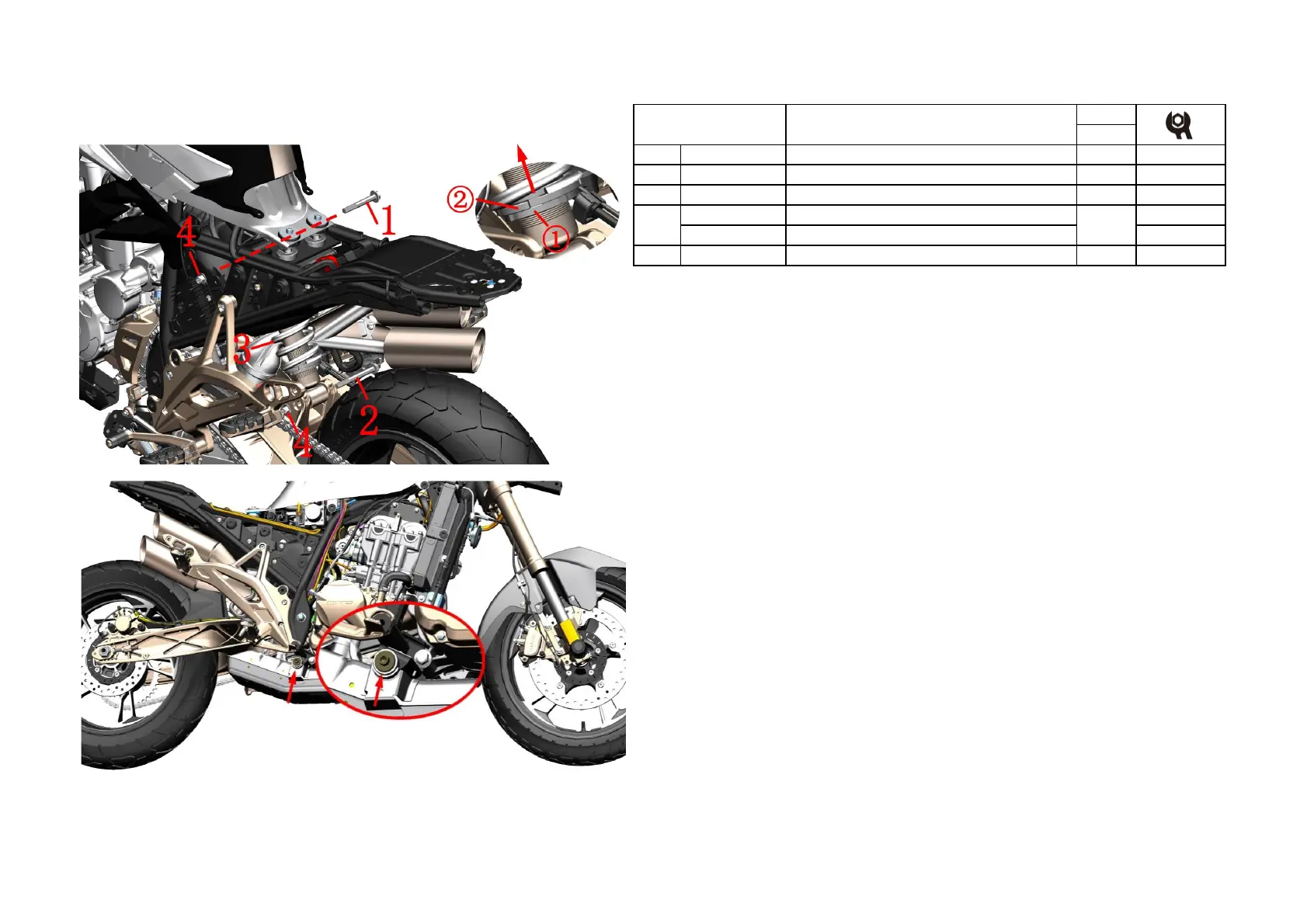

Fig.6 REAR WHEEL
COMPONENT
Rear shock absorber
3 1
