6、COOLING SYSTEM COMPONENT 39
CHK
ADJ
NO. PART NO. PART NAME QTY CAUTION
1 1051454-014000 9.8×2.5 O-ring 3
2 1244200-016000
－
R Chassis connected oil tube
1
3 1251100-061093
4 1251100-089094
Oil passing bolt M14×1.50×32 3 30±2N.m
5 1244100-034000 Seal gasketφ14×φ20×2 6
6 1244200-014000 ZT310－R Engine oil outlet tube 1
7 1244200-015000 ZT310－R Engine oil intake tube 1

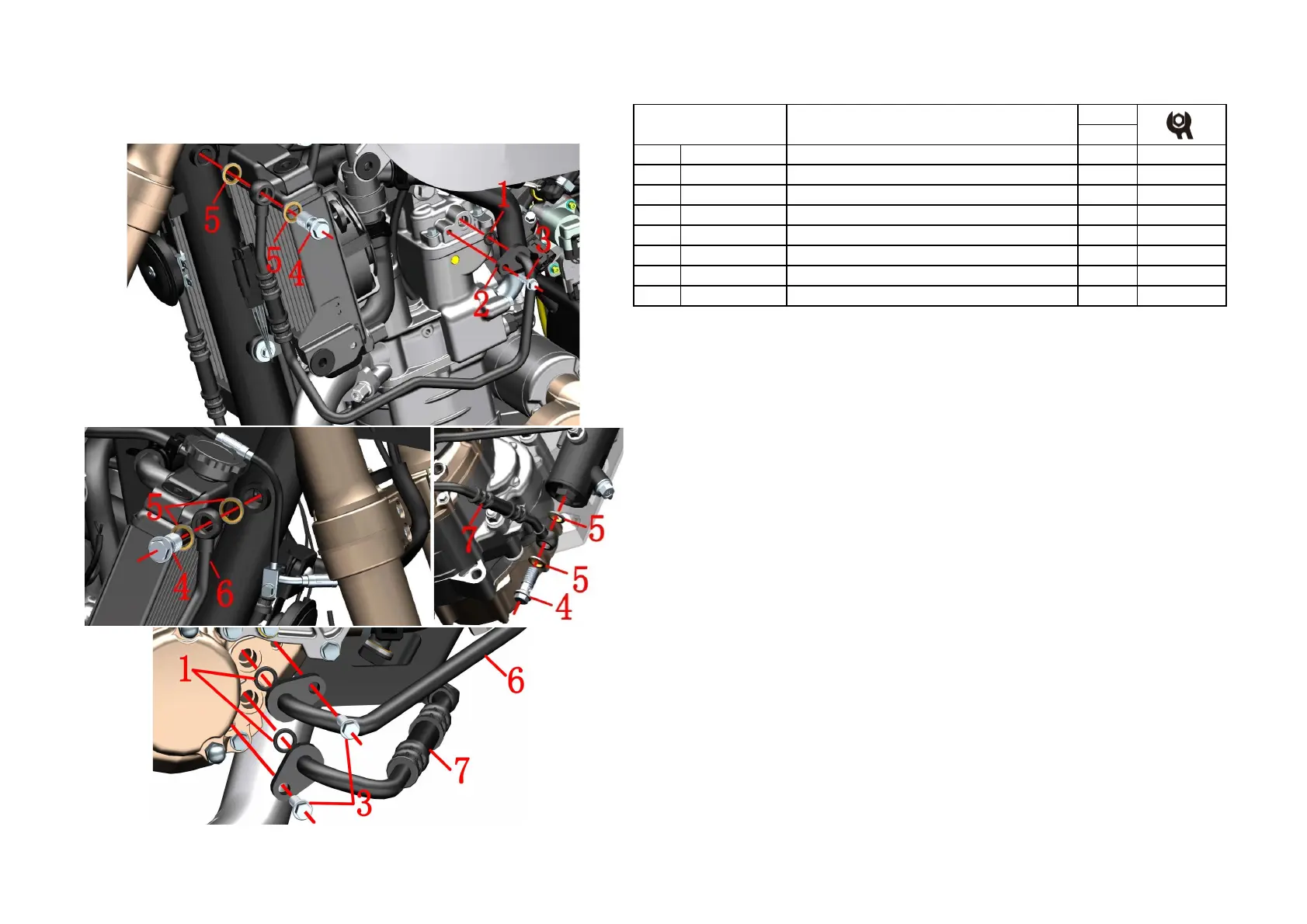

Fig.3 COOLING SYSTEM
COMPONENT
Radiator tubing component
PROCEDURE:
●Chassis connected oil tube
Disassemble oil passing bolt (4), seal gasket (5) with socket sleeve.
Disassemble bolt (3) close to engine with socket sleeve. Disassemble chassis connected oil tube. Take off O-ring
(1). (as left picture shown)
●Engine oil outlet tube
Disassemble oil passing bolt (4), seal gasket (5) with socket sleeve. As middle picture shown.
●Engine oil intake tube
Disassemble oil passing bolt (4), seal gasket (5) with socket sleeve. (as left picture shown)
Disassemble bolt (3) with socket sleeve. Take off engine oil outlet tube (6), engine oil intake tube (7); Take off
O-ring (1). (as picture shown)
CAUTION:
●Disassembling the cooling system while the motorcycle is hot is prohibited. Wait until the engine and muffler
cool down thoroughly for the manipulation.
●Wasted engine oil should be collected and hand over to qualified facilities for further treatment. Do not pour
the oil anywhere and avoid pollution of environment and water source.
●Do not disassemble the oil tube violently in case of deformation of bush.
●To avoil leakage, changing seal gasket and O-ring every time together with engine oil is suggested.
●Be sure to wipe the connecting surface with clean nonwoven before reassembling.
