10、REAR COVER COMPONENT 98
CHK
AD
J
NO. PART NO. PART NAME QTY CAUTION
1 1184200-024000
ZT310
－
R Side bracket relay
1
G8HN-1C4T-RJ
2 1184100-017000
ZT250
－
S EFI relay
3 KH-1A4T
3 1224200-175000
ZT310-T colloid battery electric device box upper cover
1
1050954-019000 MT05.2 Engine Controller - Model ZT310-RC4 Delphi
1050954-037000 MSE6.0 Controller-ZT180MN (Euro 5) Bosch
5 1184100-010000 ZT250-S Start relay 1
6 1184200-016000 ZT310 PKE buzzer 1
7 1240300-007000
HJ125－6 Battery rubber gasket
3

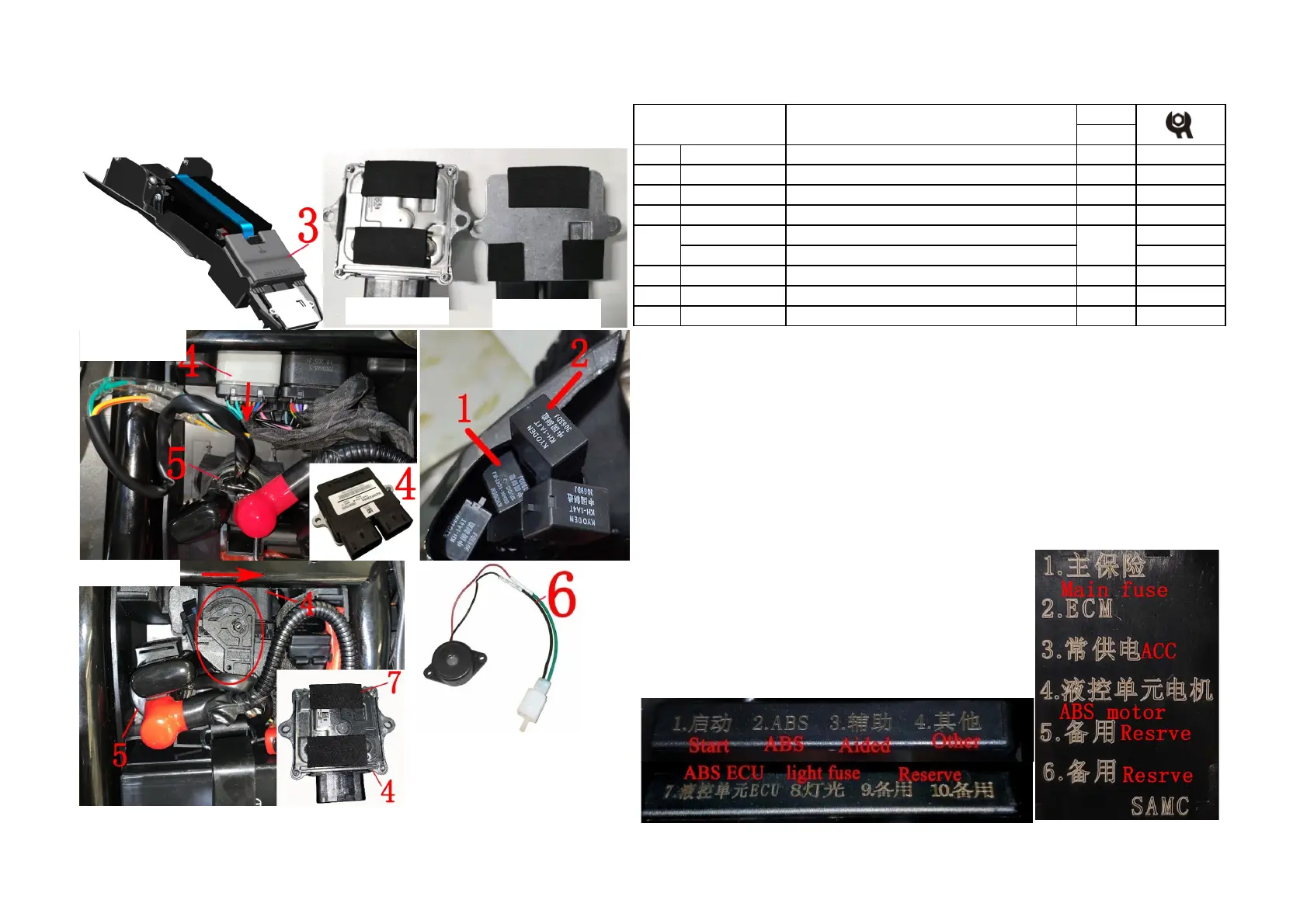

Fig. 12 REAR COVER
COMPONENT
Electrical component (colloid battery)
4 1
PROCEDURE:
●Relay
Pull up the cable and unplug the side stand relay (1) and the EFI relay (2).Open the top cover of ZT310-T gel
battery box(3).
Turn off the positive and negative.
protective rubber caps (red for the positive and black for the negative) of the starter relay (5). Remove the
positive and negative connectors by unscrewing the nut, and screw the nut back onto the relay stud to prevent
loss.
Find the starting relay and main cable connector unplugged.
●Engine Control Unit（ECU）
Hold the ECU (4) connector in the direction of the arrow and separate the ECU (4) from the main cable.
●Fuse box
Fuse box cover with corresponding instructions.
●PKE buzzer
Remove the PKE buzzer (6). Clean up the remaining offset.
CAUTION:
●Do not pull the cable directly.
Bosch EFI
Delphi EFI
Bosch EFI
Delphi EFI
