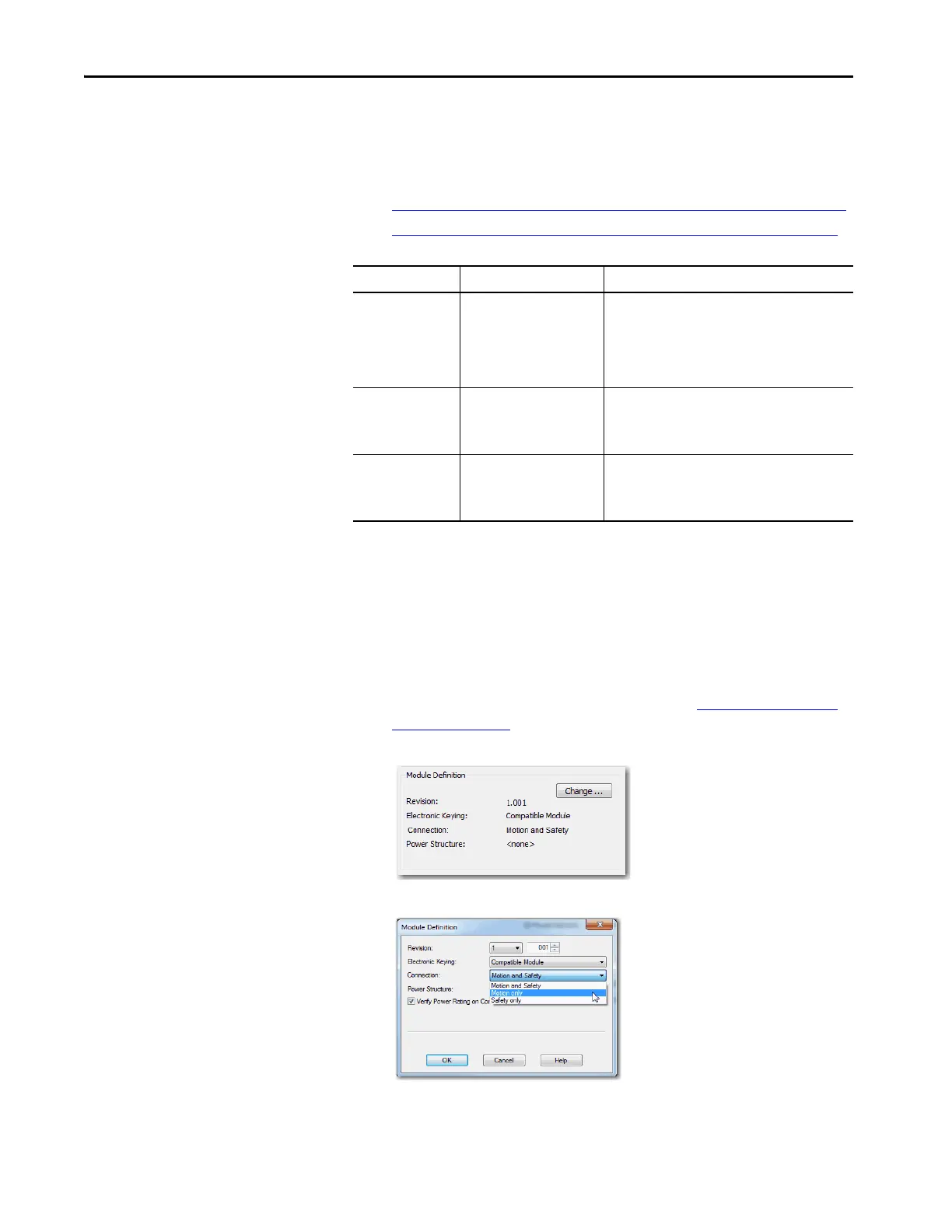

132 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019
Chapter 6 Configure Integrated Motion Using a PowerFlex 527 Drive
Configure the PowerFlex 527
Drive
After you have added a PowerFlex 527 drive to your project, you must
configure the type of safety connection suitable for your application. See the
following sections for instructions on configuration of the drive for the
different types of safety connections.
• Configure the Drive with Hard-wired Safety Connections on page 132
• Configure the Drive with Integrated Safety Connections on page 134
Configure the Drive with Hard-wired Safety Connections
Follow these steps to configure the PowerFlex 527 drives with hard-wired
safety.
1. Make sure that you have completed the steps in Add a PowerFlex 527
Drive on page 130 before proceeding.
2. Under Module Definition, click Change.
The Module Definition dialog box appears.
Connection Mode Controller Needed Description
Motion only ControlLogix® 5570,
GuardLogix® 5570,
CompactLogixâ„¢ 5370,
ControlLogix 5580,
CompactLogix 5380, or
Compact GuardLogix 5370
(1)
(1) Catalog numbers containing the letter M.
Hard-wired Safe Torque Off (STO) connections are
possible.
This controller manages Motion.
Another controller that has a Safety only connection to
the drive manages Safety.
Motion and Safety GuardLogix 5570,
GuardLogix 5580,
Compact GuardLogix 5370
(1)
,
or Compact GuardLogix 5380
This controller manages Motion and Safety.
Safety only GuardLogix 5570,
GuardLogix 5580,
Compact GuardLogix 5370, or
Compact GuardLogix 5380
This controller manages Safety.
Another controller that has a Motion only connection to
the drive manages Motion.
