Display Motor Model
Information

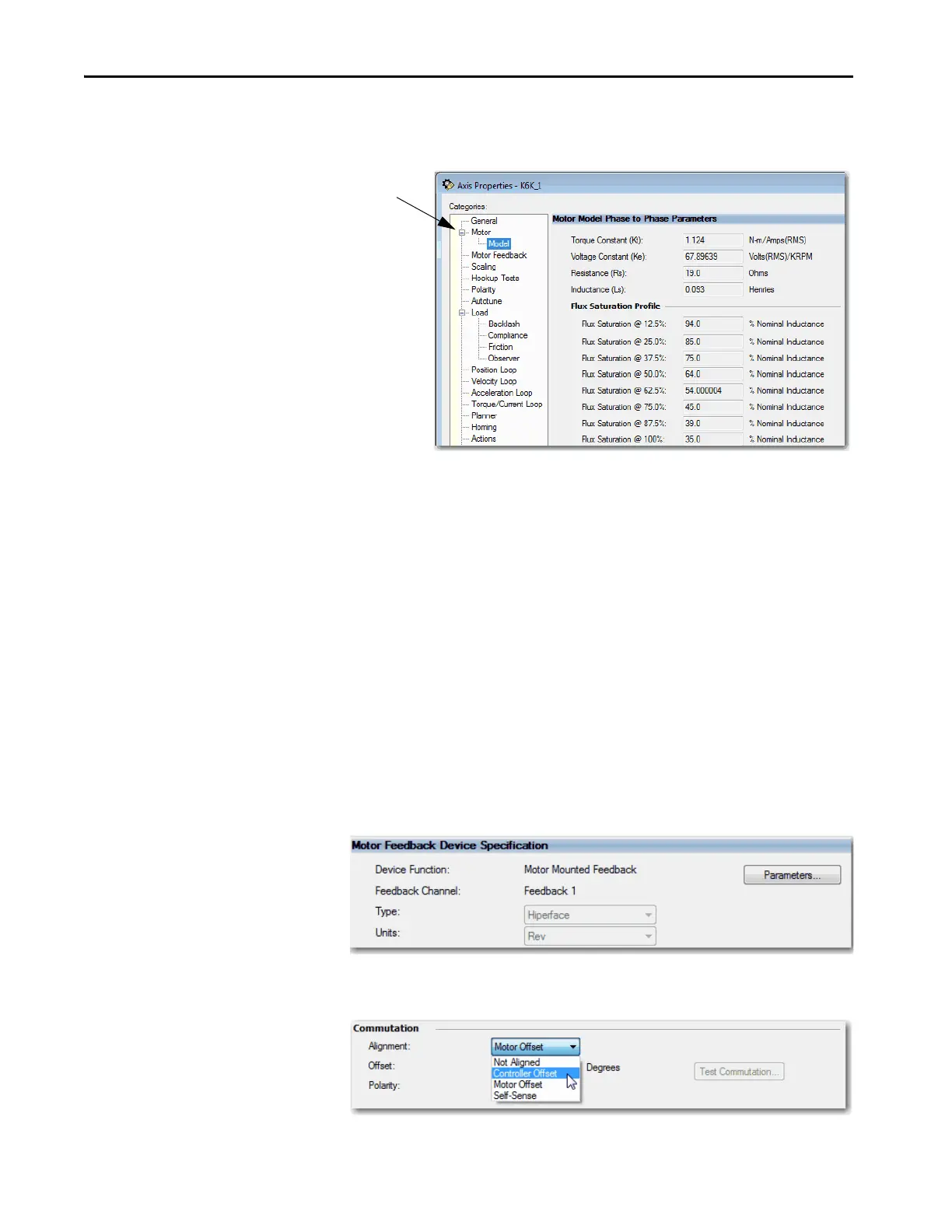

The Motor Model category displays more information that is based on the
motor type you select.
• If the motor data source is Catalog Number, this information is
populated automatically.
• If the motor data source is Nameplate data sheet, this information must
be entered manually, or by running the optional Motor Analyzer.
• If the motor data source is Motor NV, this dialog box is blank.
Assign Motor Feedback
What appears on the Motor Feedback dialog box is dependent on what you
select on the General dialog box for Feedback Configuration.
The Motor Feedback dialog box represents the information for the feedback
device that is directly coupled to the motor. This dialog box is available if the
feedback configuration that is specified on the General dialog box is anything
other than Master Feedback.
If the motor that you select has Catalog Number as the data source, all
information on this dialog box with be entered automatically. Otherwise you
have to enter the information yourself.
Attributes that are associated with the Motor Feedback dialog box are
designated as Feedback 1.
The asterisk next
to a category
means that you
have not applied
changes.
To Next Page
