64 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019

Chapter 4 Configure Integrated Motion Control Using Kinetix 5700 Drives

Configure the Regenerative Bus Supply

Follow these steps to configure the regenerative bus supply.

1. Below the controller you created, right-click Ethernet and choose New

Module.

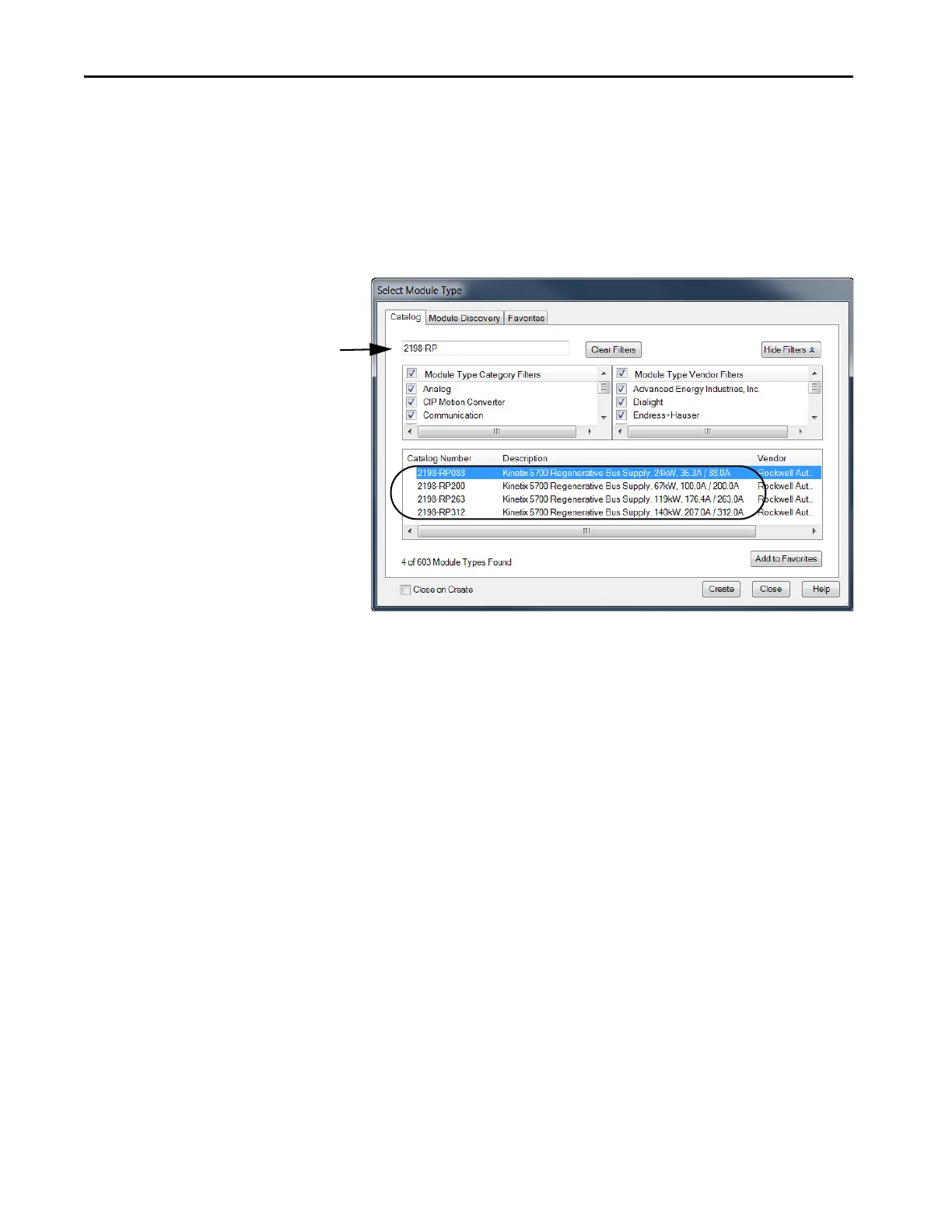

The Select Module Type dialog box appears.

2. By using the filters, check Motion and Allen-Bradley, and select your

2198-RPxxx regenerative bus supply as appropriate for your hardware

configuration.

3. Click Create.

Enter 2198-RP here to

refine your search.
