Chapter 9 Axis Configuration Examples for the PowerFlex 755 Drive
Example 5: Frequency
Control with No Feedback
In this example, you are configuring an axis for Frequency Control with No
Feedback.
1. Once you have created the AXIS_CIP_DRIVE axis, open the Axis
Properties.
2. From the Axis Configuration pull-down menu, choose Frequency
Control.
3. From the Feedback Configuration pull-down menu, choose No
Feedback.

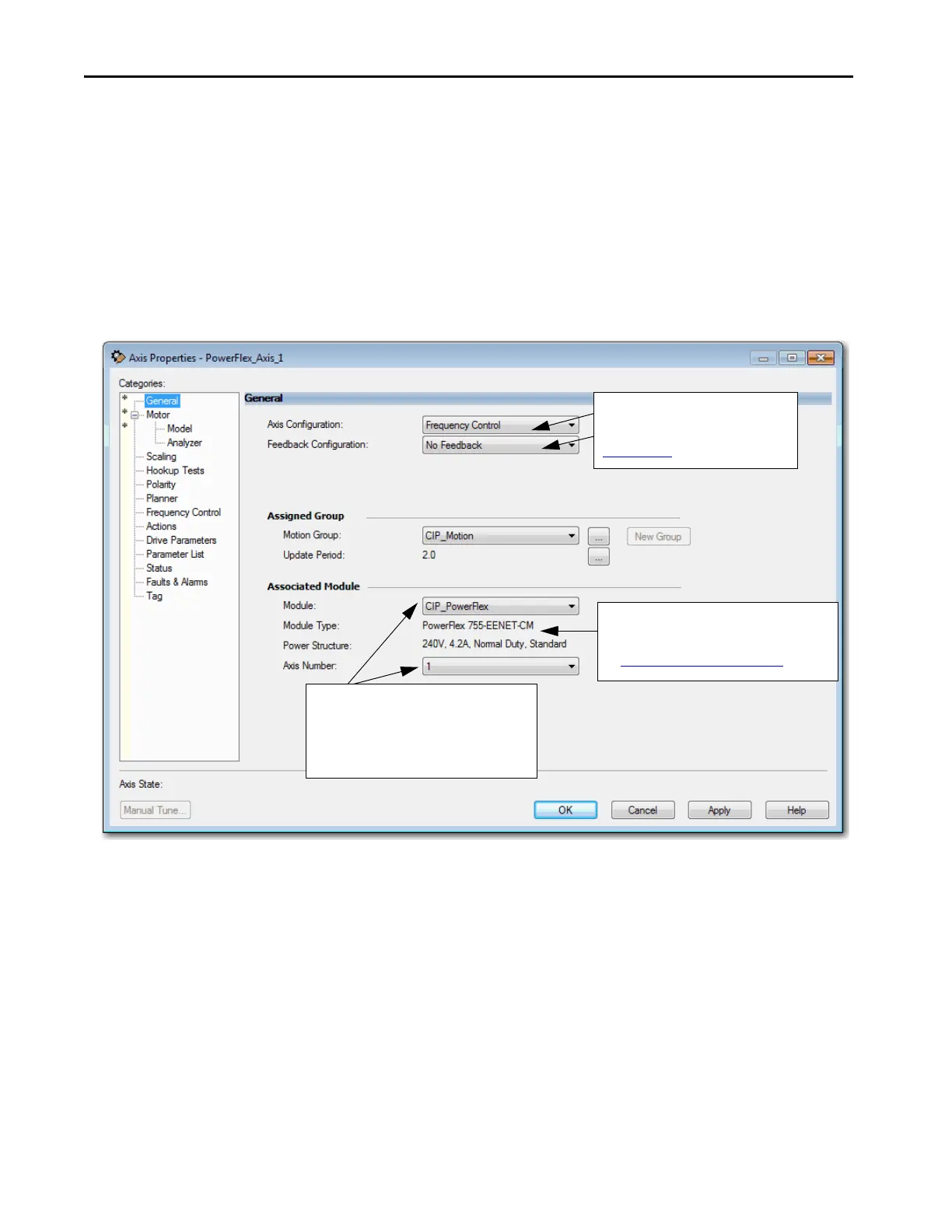

Figure 75 - Example 5: Frequency Control with No Feedback, General Dialog Box
Displays the type of drive you selected and power
structure you assigned via the PowerFlex 755 drive
Module Properties.
See Add a PowerFlex 755 Drive on page 99
.
The newly created PowerFlex 755 drive module
name is the default. The Axis Number defaults to
1, indicating the primary axis of the drive. Axis
Number 2 is used only for configuring a Feedback
Only axis.
Defines the controller Control Mode.
See the Integrated Motion on the EtherNet/
IP Network Reference Manual, publication,
MOTION-RM003
.
