Chapter 10 Axis Configuration Examples for the PowerFlex 527 Drive
To obtain the best performance from the drive, regardless of which
control method you are using, configure the recommended out-of-box
settings. These settings are described in Appendix C
, PowerFlex® 527
Out-of-Box Configuration on page 339.
21. Click OK.
22. Repeat steps 1
…21 for each induction motor axis.
Example 2: Velocity Control
with Motor Feedback
Follow these steps to configure the induction motor axis properties.
1. In the Controller Organizer, right-click an axis and choose Properties.
2. Select the General category.
The General and Associated Module dialog box appears.

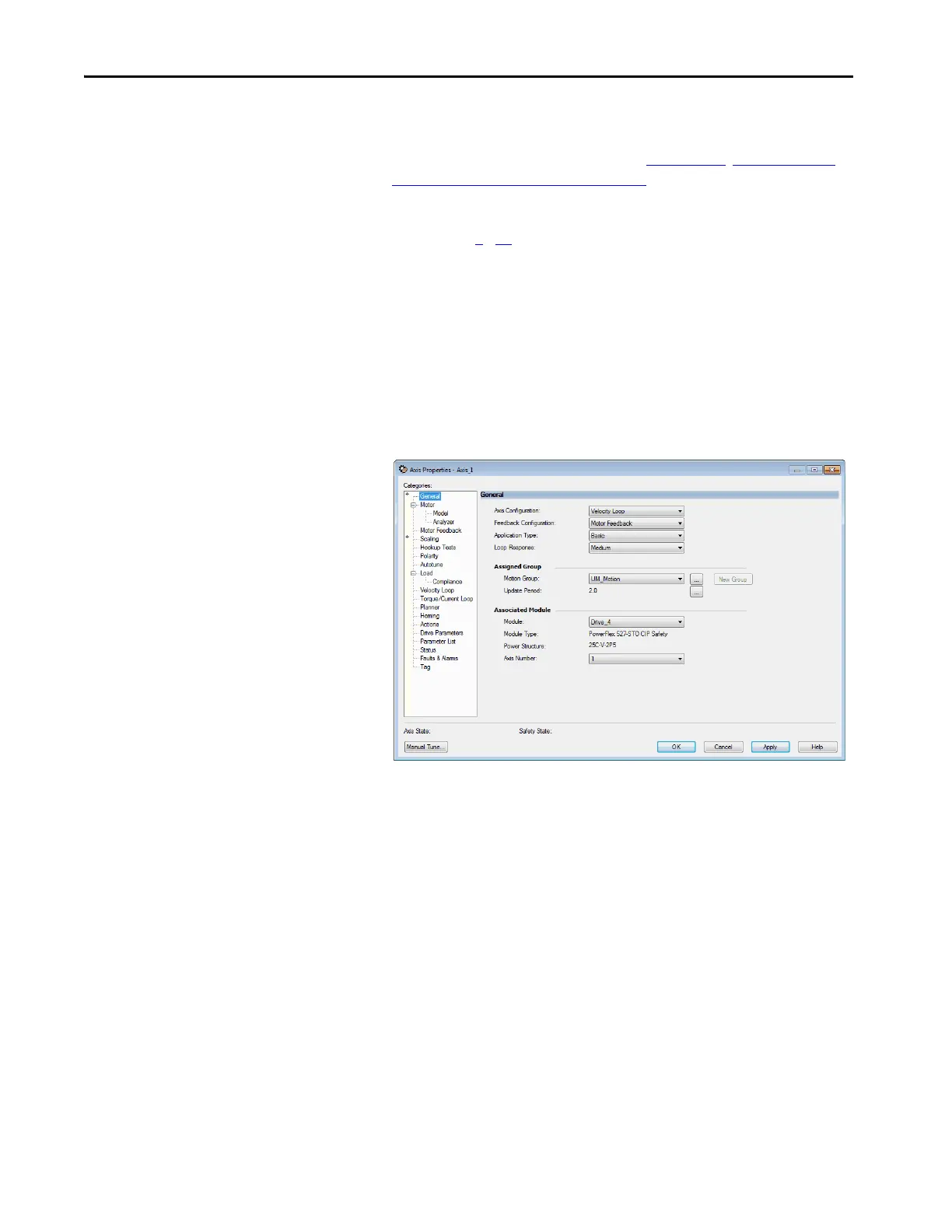

Figure 93 - Example 2: Velocity Control with Motor Feedback, General Dialog Box
3. From the Axis Configuration pull-down menu, choose Velocity Loop.
4. From the Module pull-down menu, your PowerFlex 527 drive.
The Module Type and Power Structure fields populate with the chosen
drive catalog number.
5. Click Apply.
