210 Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019

Chapter 10 Axis Configuration Examples for the PowerFlex 527 Drive

Example 1: Frequency

Control with No Feedback

The PowerFlex 527 drives support basic Volts/Hertz (V/Hz), Fan/Pump

Volts/ Hertz, Sensorless Vector Control (SVC), and Sensorless Vector Control

(SVC) Economy frequency control methods.

Follow these steps to configure the induction motor axis properties.

1. In the Controller Organizer, right-click an axis and choose Properties.

2. Select the General category.

The General and Associated Module dialog box appears.

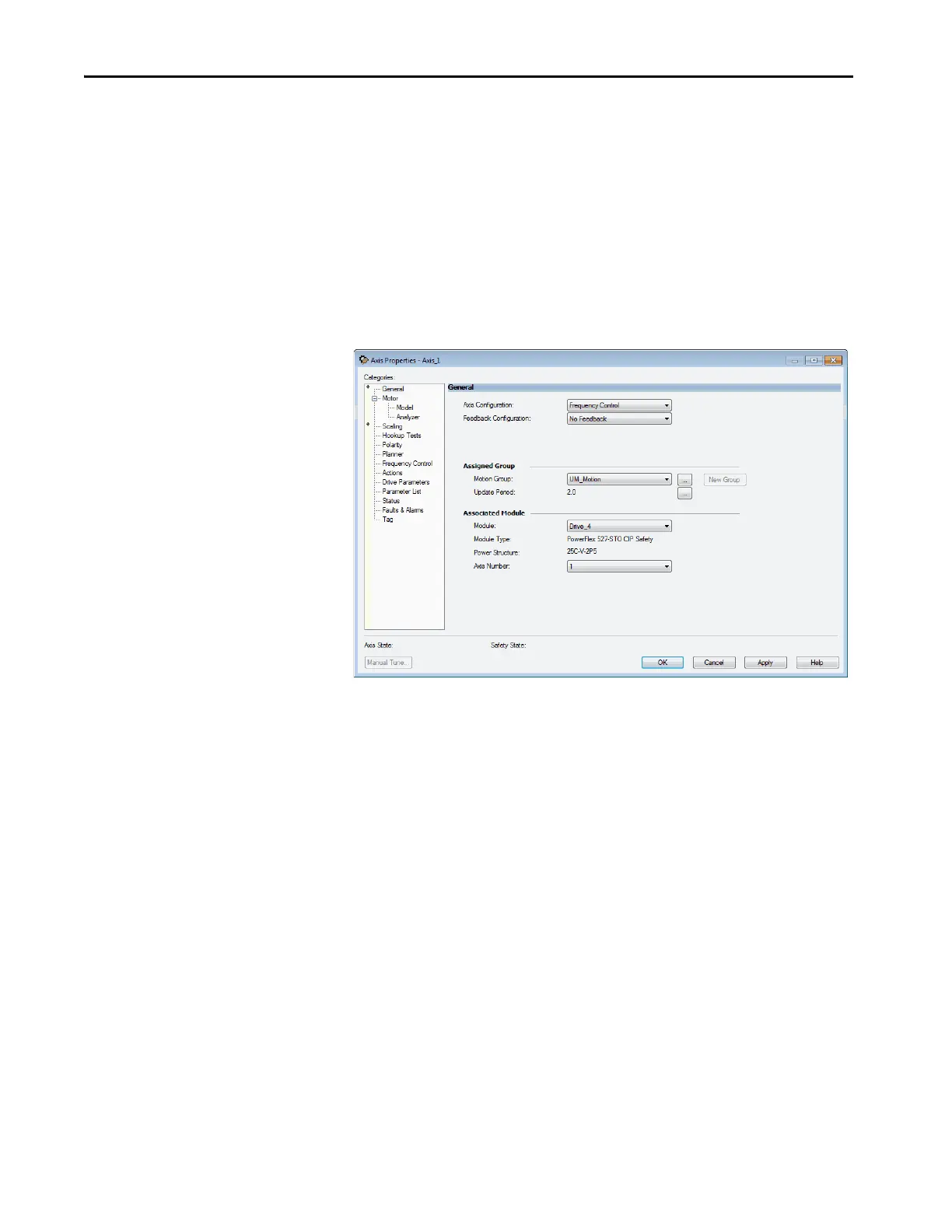

Figure 87 - Example 1: Frequency Control with No Feedback, General Dialog Box

3. From the Axis Configuration pull-down menu, choose Frequency

Control.

4. From the Module pull-down menu, your PowerFlex 527 drive.

The Module Type and Power Structure fields populate with the chosen

drive catalog number.

5. Click Apply.
