Rockwell Automation Publication MOTION-UM003K-EN-P - January 2019 97
Configure Integrated Motion Control Using Kinetix 5700 Drives Chapter 4

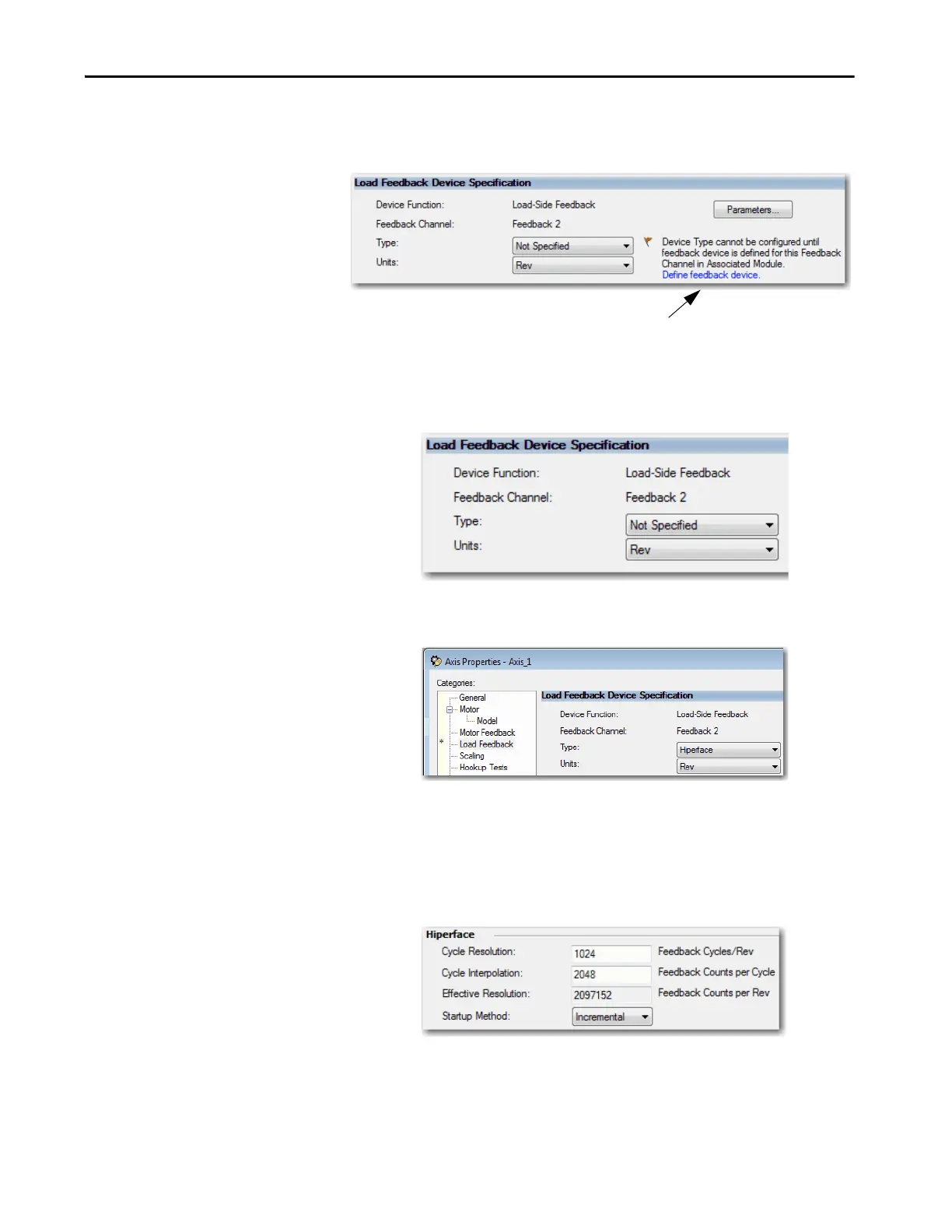

Configure the Load Feedback
The Load Feedback category contains the information from the feedback
device that is directly coupled to the load-side of a mechanical transmission or
actuator.
The Load Feedback category is available if the Feedback Configuration that is
specified on the General dialog box is Load or Dual.
Attributes that are associated with the Load Feedback category are designated
Feedback 2.
Unlike the Motor Feedback category, you must explicitly enter load feedback-
device information on the Load Feedback category, including the Feedback
Type. This entry is required because the Load Feedback device is not built into
the motor.
Default values are displayed based on the Feedback Type selected.
For your convenience, you can use this link
to the Module Properties dialog box for the
associated drive.
