PRODUCT INTRODUCTION
Thank you and congratulations on your purchase of D-Link DGS-1100/ME Series Switch Products.
D-Link's next generation DGS-1100 Series switches blend plug-and-play simplicity with exceptional
value and reliability for small and medium-sized business (SMB) networking. All models are housed in a
new style rack-mount metal case with easy-to-view front panel diagnostic LEDs.
The brand-new DGS-1100/ME series are green by design with IEEE 802.3az Energy Efficient Ethernet
compliant (abbreviated as EEE) and D-Link Green Technologies. This allows significant power saving
during periods of low data activity. In most environments, switches are idle 90% or more of the time. If
there has been no network traffic over a short period of time, ports on DGS-1100 switch will change to
power saving mode automatically. Once a packet is received, the switch wakes and works immediately,
returning to normal funcationality. By using EEE compliant devices, such as PCs and servers, the
network can save energy without compromising any performance. Even when connecting to legacy
devices which do not support IEEE 802.3az, D-Link Green Technologies can reduce power consumption
by changing the power state of the link.
DGS-1100-16/ME
16-Port 10/100/1000Mpbs Switch
Front Panel

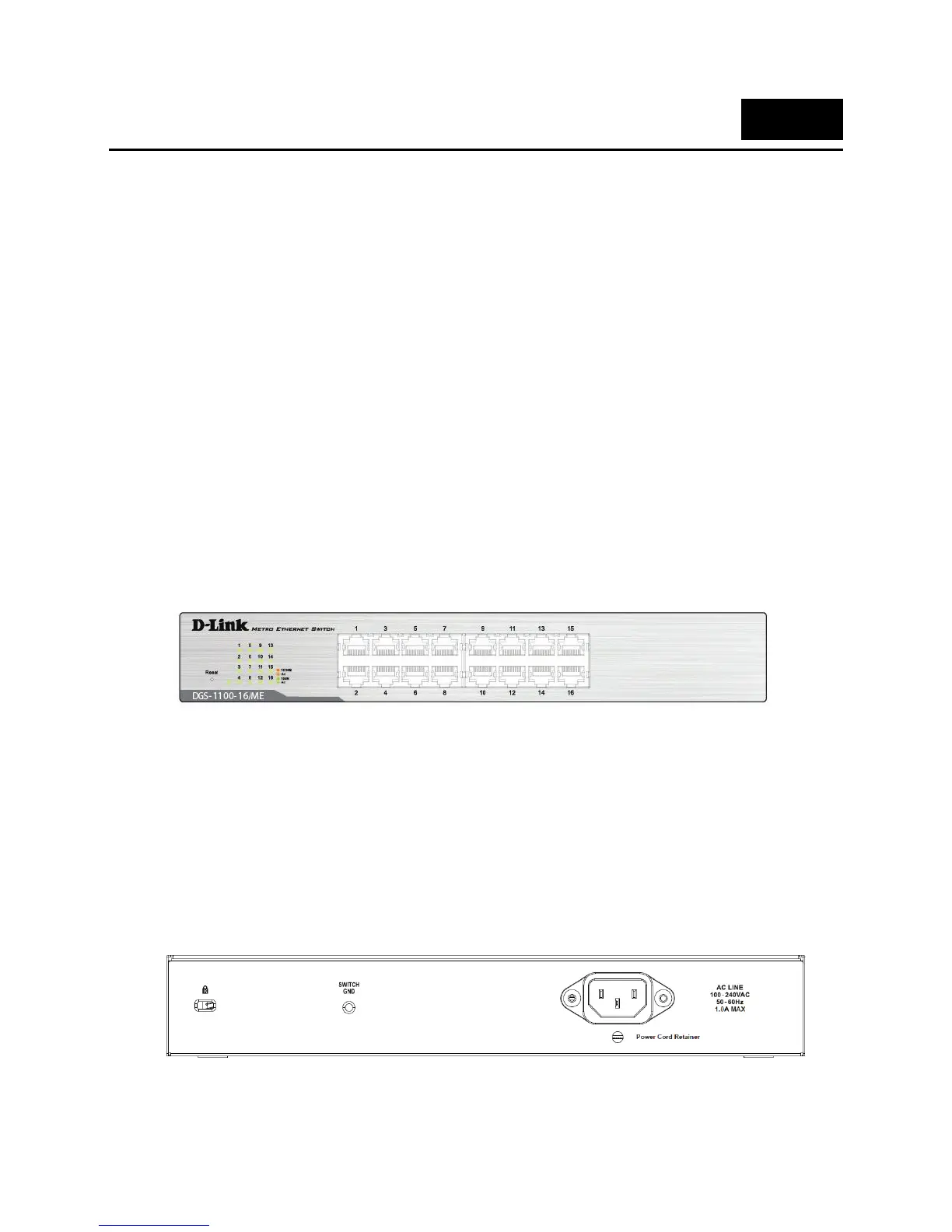

Figure 2-1 - DGS-1100-16/ME Front Panel
Power LED: The Power LED lights up when the Switch is connected to a power source.
Link/Act/Speed LED (Ports 1-16):
Solid Green: When there is a secure 1000Mbps connection at the port.
Blinking Green or Amber: Indicates that the Switch is either sending or receiving data to the port.
Solid Amber: Indicates that the port is running at 10/100Mbps.
Light off: No link.
Reset: By pressing the Reset button until the power LED turns amber, the Switch will change back to
the default configuration and all changes will be lost.
Rear Panel
Figure 2-2 – DGS-1100-16/ME Rear Panel
