DGS-1100/ME Metro Ethernet Managed Switch CLI Reference Guide
DGS-1100-24/ME
24-Port 10/100/1000Mpbs Switch
Front Panel

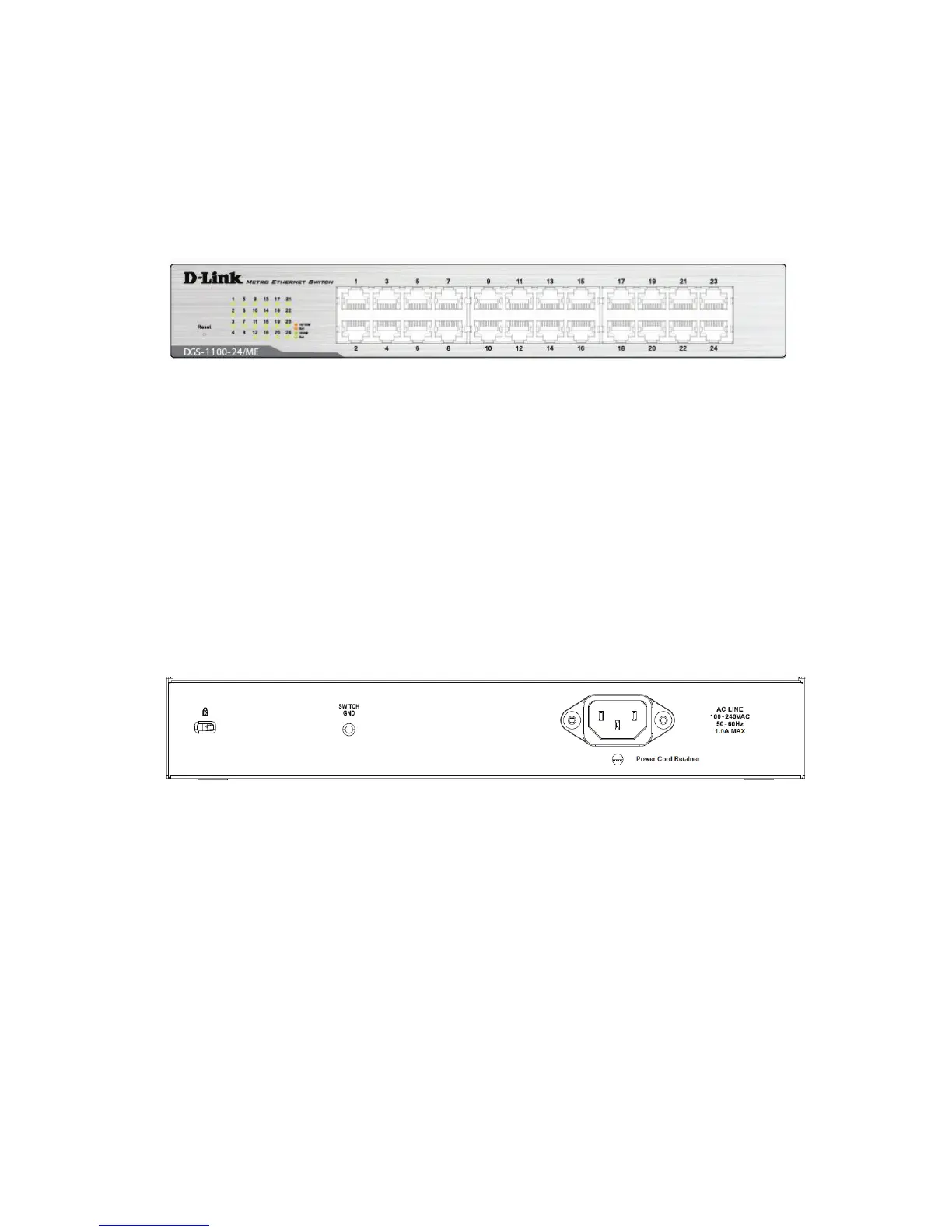

Figure 2-5 – DGS-1100-24/ME Front Panel
Power LED: The Power LED lights up when the Switch is connected to a power source.
Link/Act/Speed LED (Ports 1-24):
Solid Green: When there is a secure 1000Mbps connection at the port.
Blinking Green or Amber: Indicates that the Switch is either sending or receiving data to the port.
Solid Amber: Indicates that the port is running at 10/100 Mbps.
Light off: No link.
Reset: By pressing the Reset button until the power LED turns amber, the Switch will change back to
the default configuration and all changes will be lost.
Rear Panel
Figure 2-6 – DGS-1100-24/ME Rear Panel
Power: Connect the supplied AC power cable to this port.
4
