Configuring a MAC ACL Mask
This mask defines the fields to check in the packet header.
Command Usage
You must configure a mask for an ACL rule before you can bind it to a port.
Command Attributes
• Source/Destination Address Type – Use “Any” to match any address, “Host” to
specify the host address for a single node, or “MAC” to specify a range of
addresses. (Options: Any, Host, MAC; Default: Any)
• Source/Destination Bitmask – Address of rule must match this bitmask.
• VID Bitmask – VLAN ID of rule must match this bitmask.
• Ethernet Type Bitmask – Ethernet type of rule must match this bitmask.
• Packet Format Bitmask – A packet format must be specified in the rule.
Web – Configure the mask to match the required rules in the MAC ingress or egress
ACLs. Set the mask to check for any source or destination address, a host address,
or an address range. Use a bitmask to search for specific VLAN ID(s) or Ethernet
type(s). Or check for rules where a packet format was specified. Then click Add.

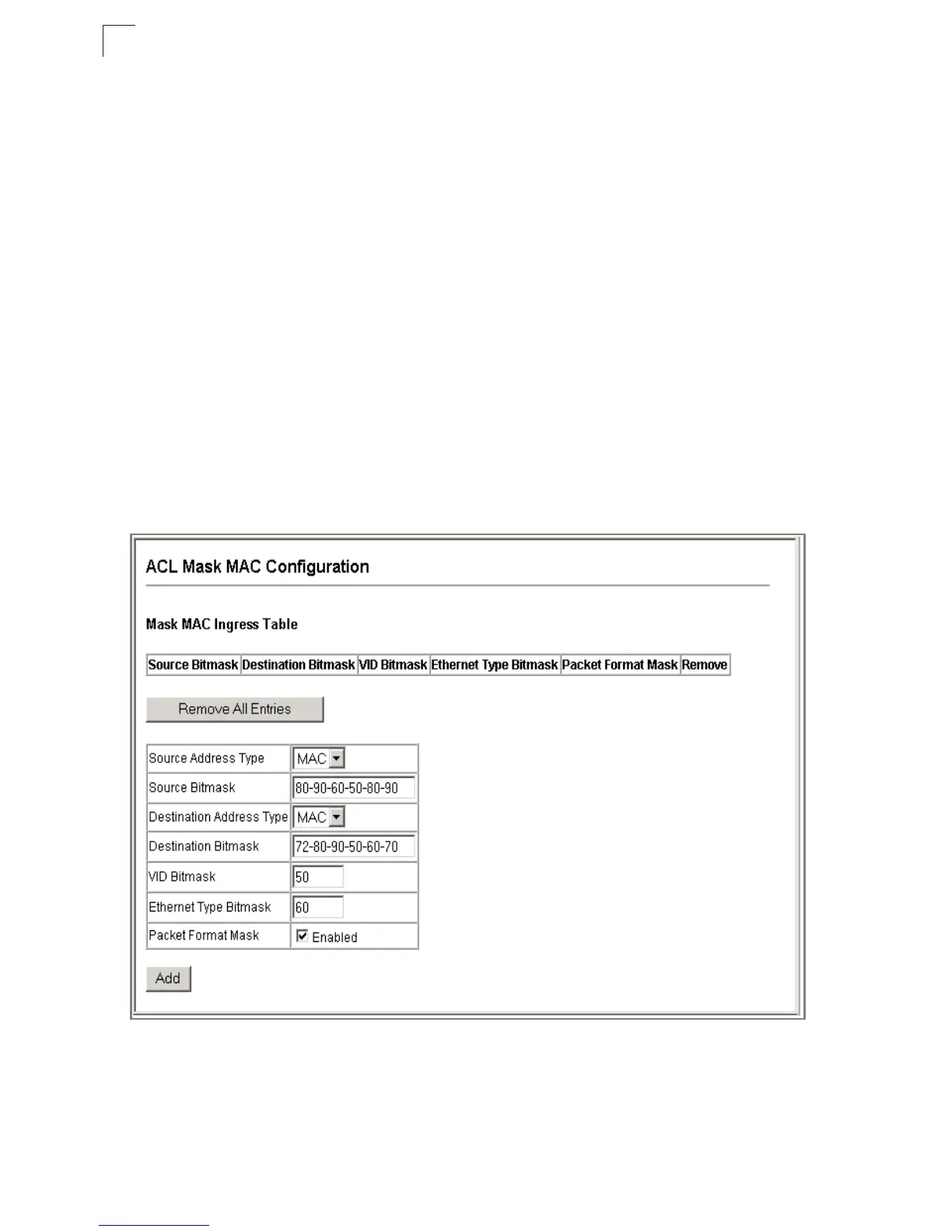

Figure 3-52. Configuring a MAC based ACL
