Port Configuration
3-87
3
• Flow Control Status – Indicates the type of flow control currently in use.
(IEEE 802.3x, Back-Pressure or None)
• Autonegotiation – Shows if auto-negotiation is enabled or disabled.
• Trunk Member
1
– Shows if port is a trunk member. (Port Information only.)
• Creation
2
– Shows if a trunk is manually configured. (Trunk Information only.).
1: Port Information only.
2: Trunk Information only.
Web – Click Port, Port Information or Trunk Information.

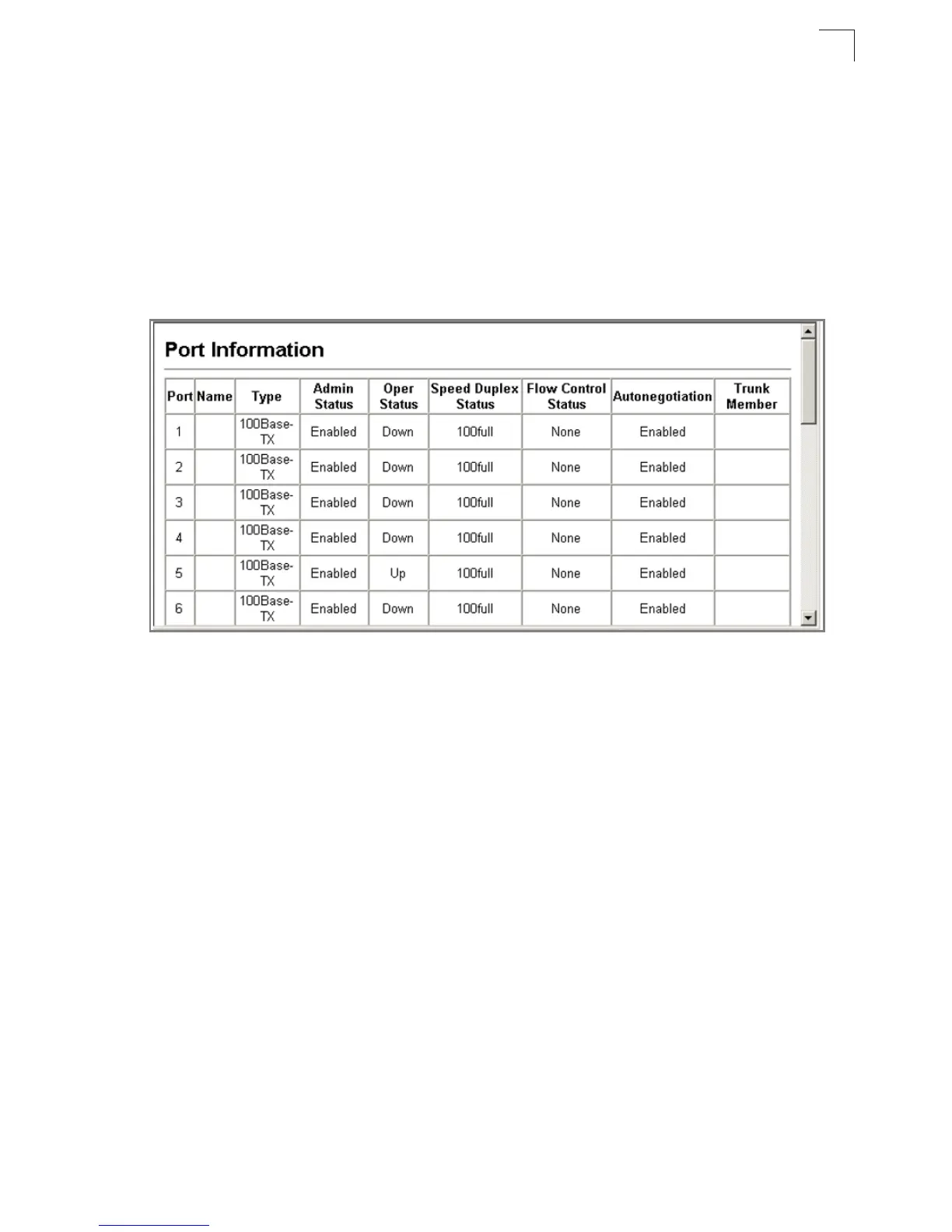

Figure 3-54. Port Status Information
Field Attributes (CLI)
Basic information:
• Port type – Indicates the port type. (10BASE-T, 100BASE-TX, 100BASE-FX-S,
100BASE-FX-M, 1000BASE-LX, 1000BASE-GBIC, 1000BASE-SFP.)
• MAC address – The physical layer address for this port. (To access this item on
the web, see “Setting the IP Address” on page 3-14.)
Configuration:
• Name – Interface label.
• Port admin – Shows if the interface is enabled or disabled (i.e., up or down).
•
Speed-duplex
– Shows the current speed and duplex mode. (Auto, or fixed choice)
• Capabilities – Specifies the capabilities to be advertised for a port during
auto-negotiation. (To access this item on the web, see “Configuring Interface
Connections” on page 3-48.) The following capabilities are supported.
- 10half - Supports 10 Mbps half-duplex operation
- 10full - Supports 10 Mbps full-duplex operation
- 100half - Supports 100 Mbps half-duplex operation
- 100full - Supports 100 Mbps full-duplex operation
- 1000full - Supports 1000 Mbps full-duplex operation
