Port Configuration
3-99
3
Web – Click Port, LACP, Port Internal Information. Select a port channel to display
the corresponding information.

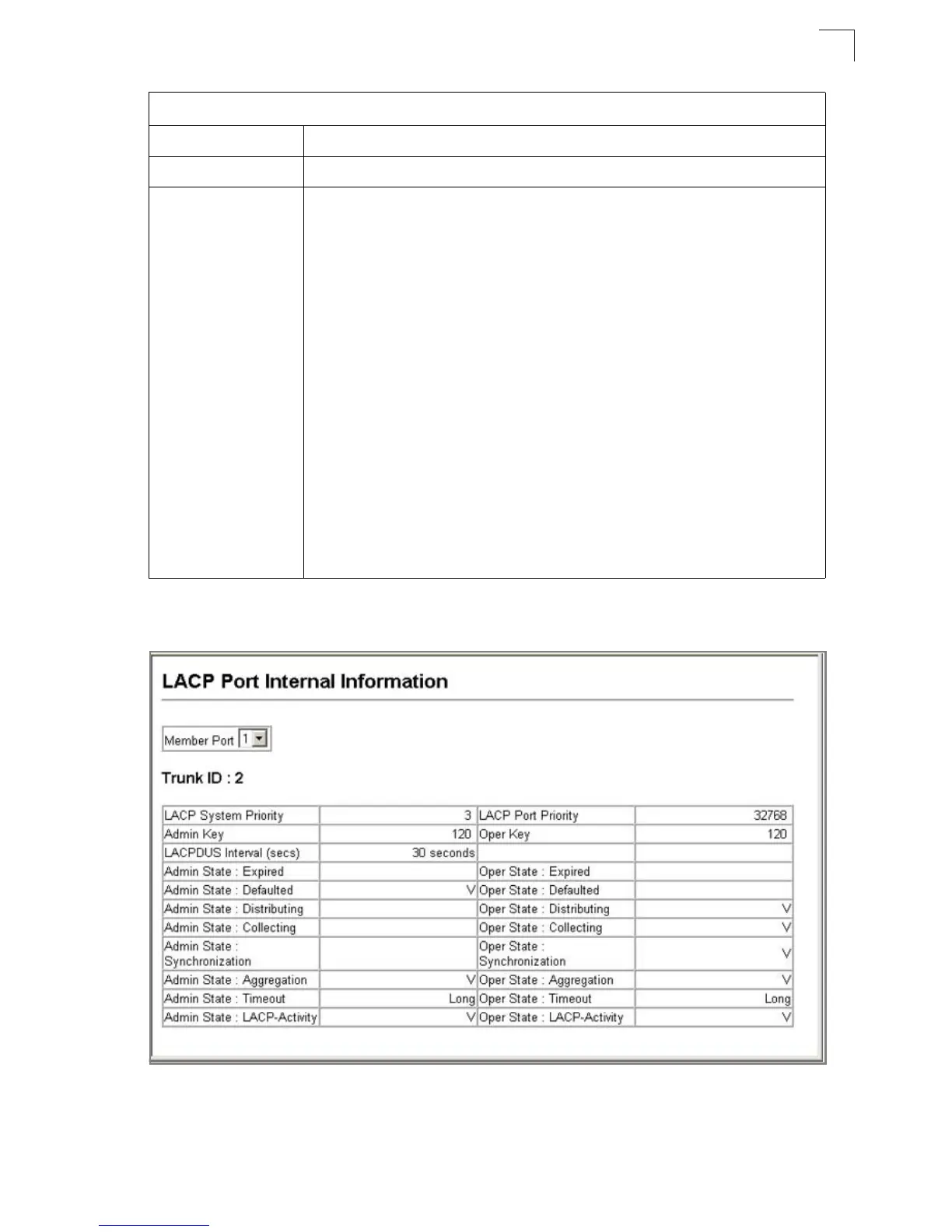

Figure 3-60. Displaying LACP Port Information
LACP Port Priority LACP port priority assigned to this interface within the channel group.
Admin State,
Oper State
Administrative or operational values of the actor’s state parameters:
• Expired – The actor’s receive machine is in the expired state;
• Defaulted – The actor’s receive machine is using defaulted operational partner
information, administratively configured for the partner.
• Distributing – If false, distribution of outgoing frames on this link is disabled; i.e.,
distribution is currently disabled and is not expected to be enabled in the absence
of administrative changes or changes in received protocol information.
• Collecting – Collection of incoming frames on this link is enabled; i.e., collection
is currently enabled and is not expected to be disabled in the absence of
administrative changes or changes in received protocol information.
• Synchronization – The System considers this link to be IN_SYNC; i.e., it has
been allocated to the correct Link Aggregation Group, the group has been
associated with a compatible Aggregator, and the identity of the Link Aggregation
Group is consistent with the System ID and operational Key information
transmitted.
• Aggregation – The system considers this link to be aggregatable; i.e., a potential
candidate for aggregation.
• Long timeout – Periodic transmission of LACPDUs uses a slow transmission rate.
• LACP-Activity – Activity control value with regard to this link.
(0: Passive; 1: Active)
Table 3-8. LACP Settings (Continued)
Field Description
