• Root Maximum Age – The maximum time (in seconds) this device can wait
without receiving a configuration message before attempting to reconfigure. All
device ports (except for designated ports) should receive configuration messages
at regular intervals. If the root port ages out STA information (provided in the last
configuration message), a new root port is selected from among the device ports
attached to the network. (References to “ports” in this section means “interfaces,”
which includes both ports and trunks.)
• Root Forward Delay – The maximum time (in seconds) this device will wait before
changing states (i.e., discarding to learning to forwarding). This delay is required
because every device must receive information about topology changes before it
starts to forward frames. In addition, each port needs time to listen for conflicting
information that would make it return to a discarding state; otherwise, temporary
data loops might result.
• Root Hold Time – The interval (in seconds) during which no more than two bridge
configuration protocol data units shall be transmitted by this node.
• Max hops – The max number of hop counts for the MST region.
• Remaining hops – The remaining number of hop counts for the MST instance.
• Transmission limit – The minimum interval between the transmission of
consecutive RSTP/MSTP BPDUs.
• Path Cost Method – The path cost is used to determine the best path between
devices. The path cost method is used to determine the range of values that can
be assigned to each interface.
Web – Click Spanning Tree, STA Information.

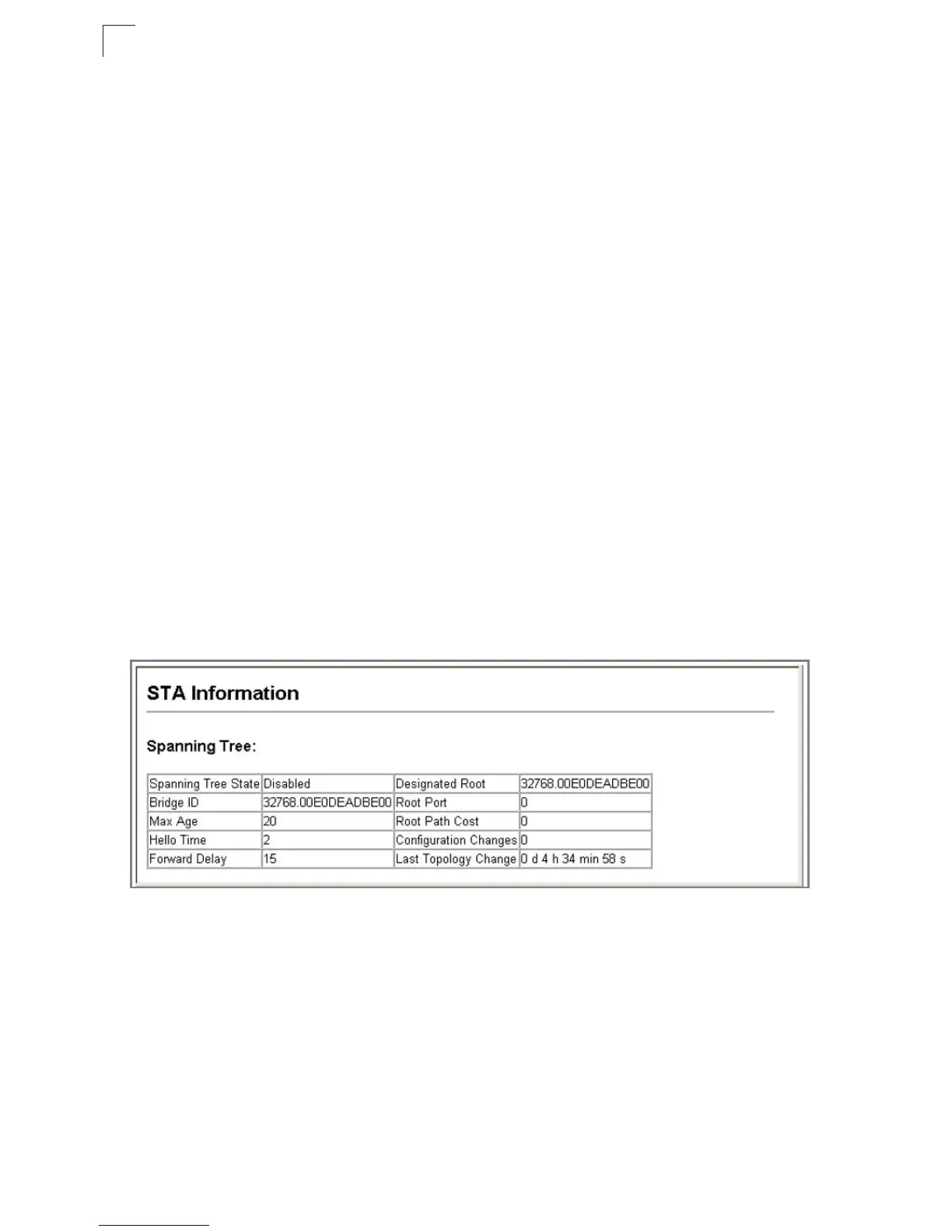

Figure 3-79. Displaying the Spanning Tree Algorithm
