Configuring the Switch
3-140
3
Displaying Interface Settings for MSTP
The MSTP Port Information and MSTP Trunk Information pages display the current
status of ports and trunks in the selected MST instance.
Field Attributes
• MST Instance ID – Instance identifier to configure. (Range: 0-57; Default: 0)
The other attributes are described under “Displaying Interface Settings,” page 3-131.
Web – Click Spanning Tree, MSTP, Port Information or Trunk Information. Select the
required MST instance to display the current spanning tree values.

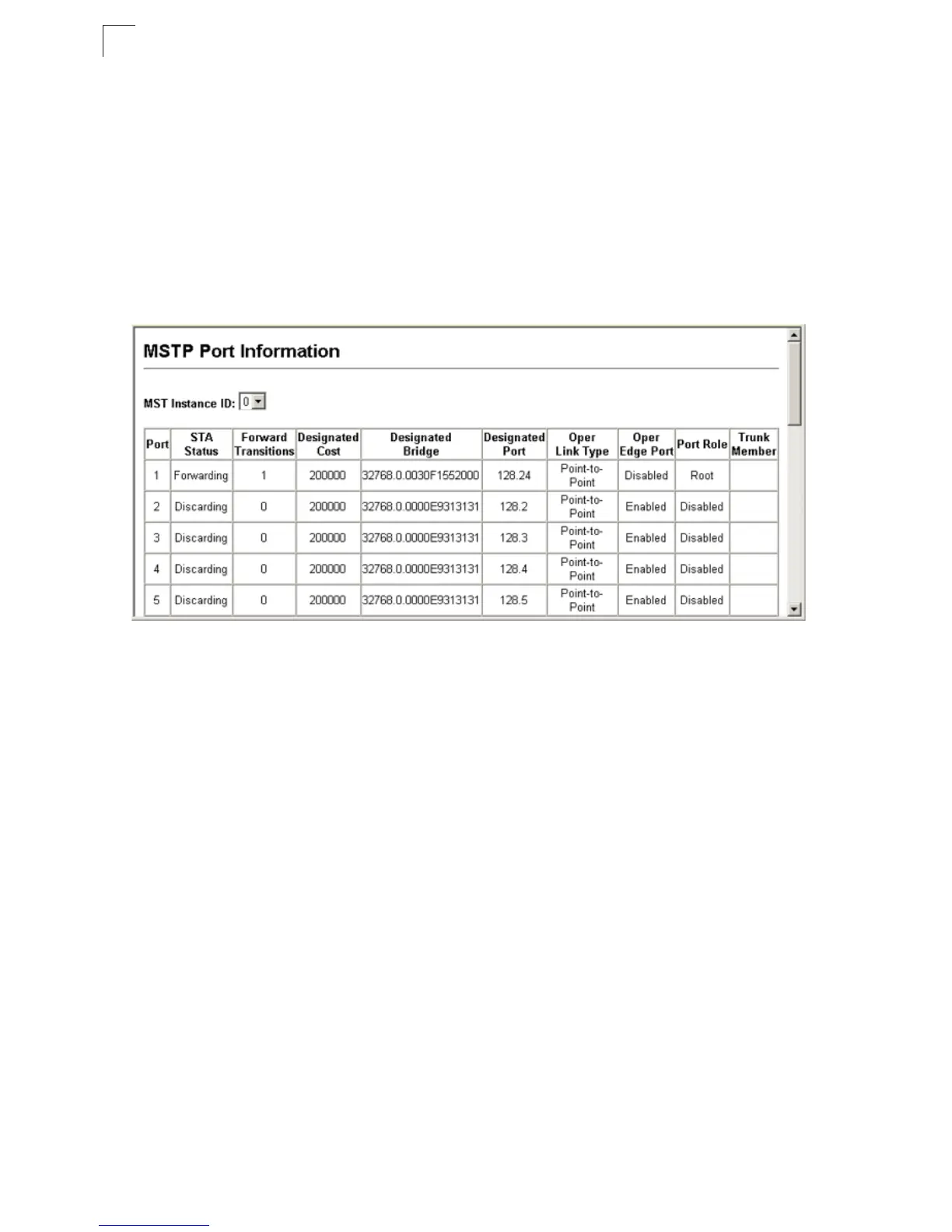

Figure 3-85. MSTP Port Information
